Shift Interlock Control Module: Locations

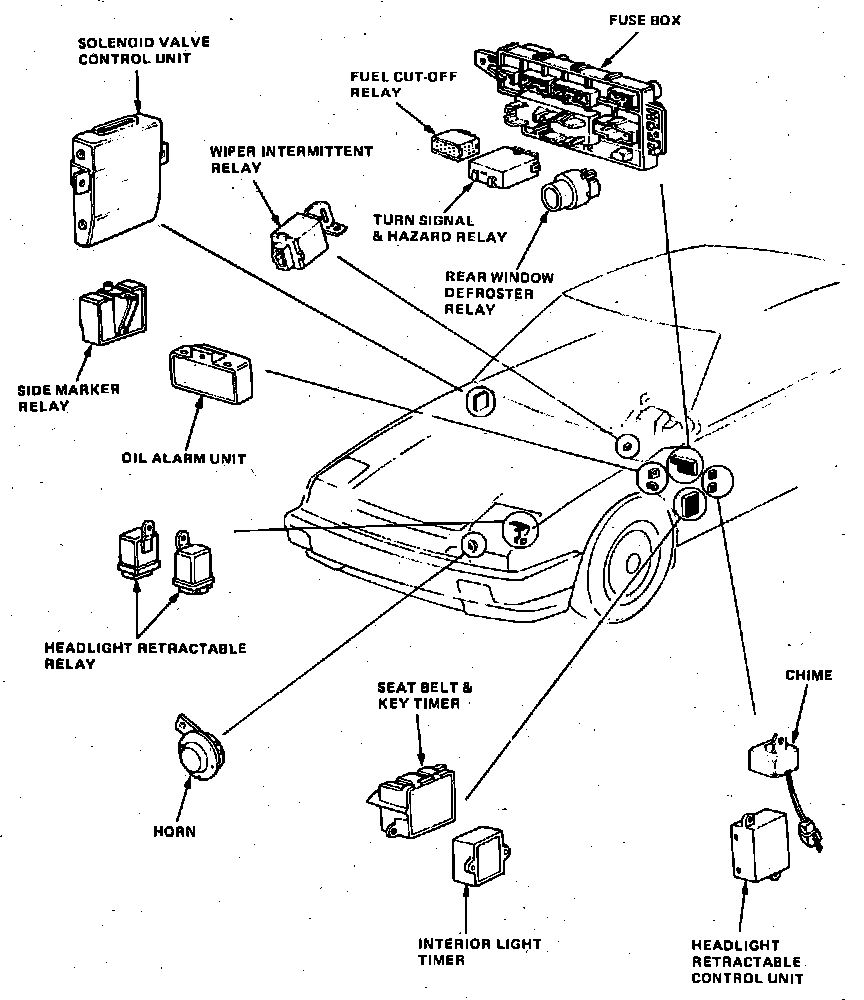

Body Mounted Electrical Components.:

Behind LH Side Of I/P

Applicable to: 1984-85
