Passenger's Switch Test

Remove door trim panel. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 . See POWER WINDOW PASSENGER'S SWITCH CONTINUITY TEST table.

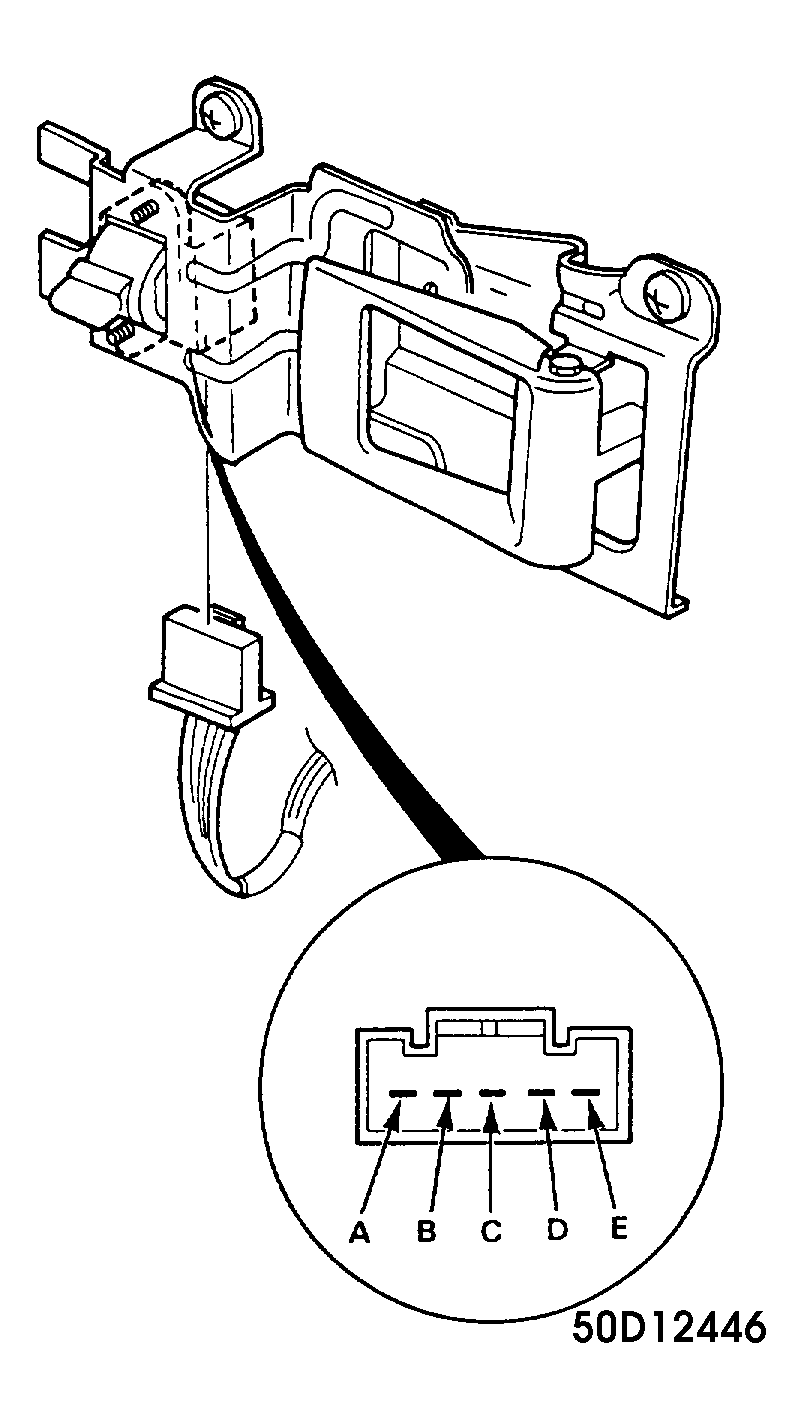

Fig 1: Power Window Passenger's Switch Terminal ID

Courtesy of AMERICAN HONDA MOTOR CO., INC.
