Driver's Switch Test
Remove the door trim panel. See
DOOR TRIM PANEL
under REMOVAL & INSTALLATION.
Check for continuity between the terminals in each switch position according to the tables. See
Fig 1
and
Fig 2
.

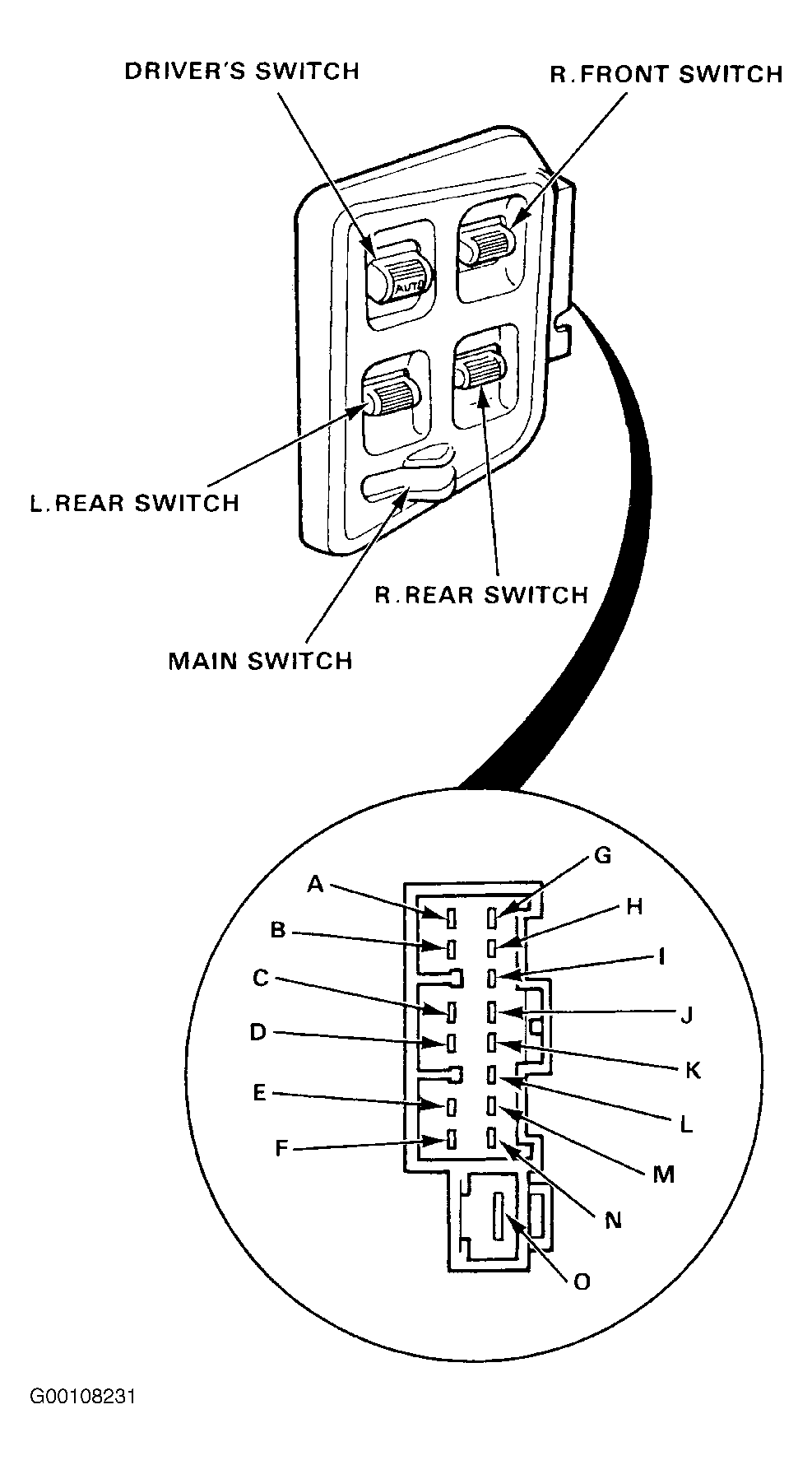

Fig 1: Identifying Driver's Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

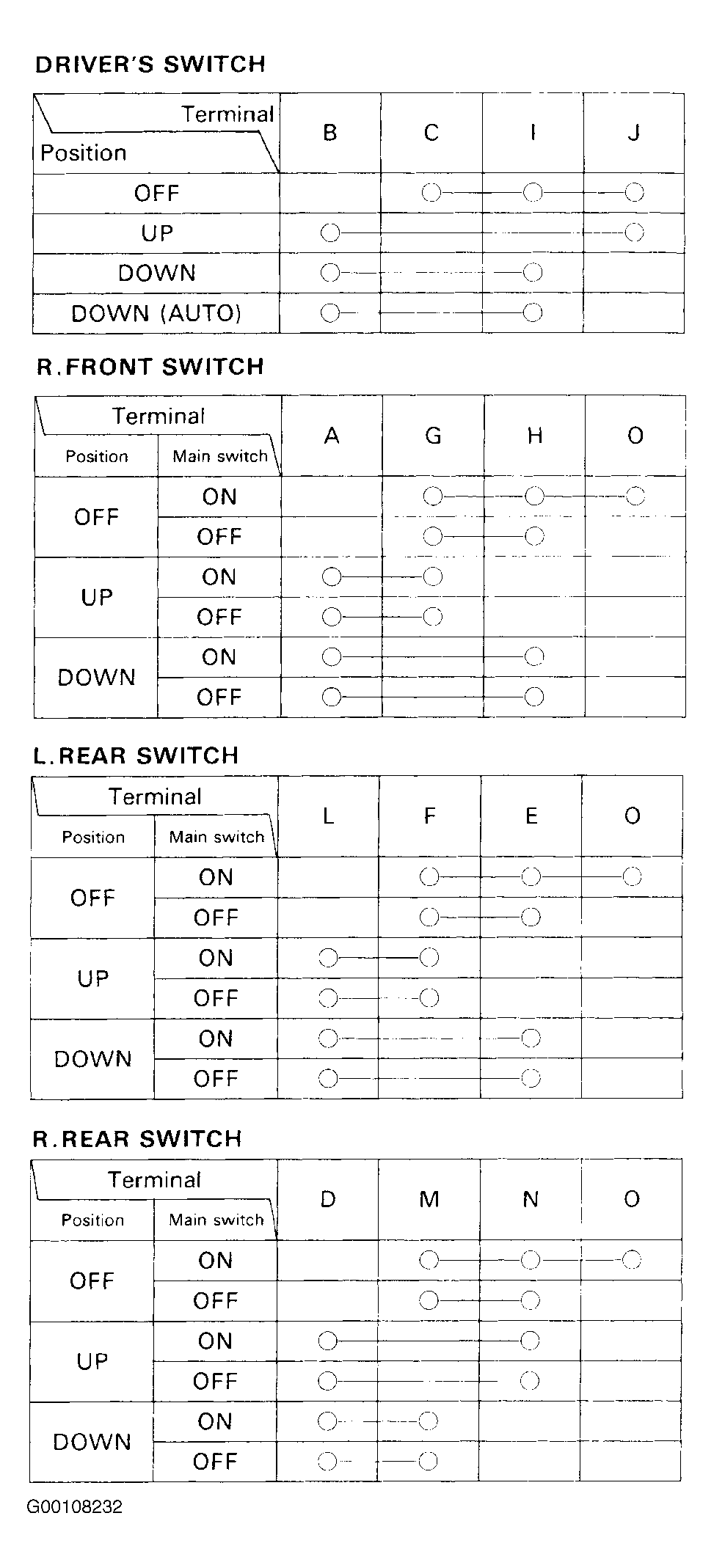

Fig 2: Driver's Switch Continuity Tables
Courtesy of AMERICAN HONDA MOTOR CO., INC.
