Wiper System

WARNING: This page is about a different car, the 1991 Honda Civic and 1990 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

For connector terminal identification see Figure . For input test see Fig 1 or Fig 2 .

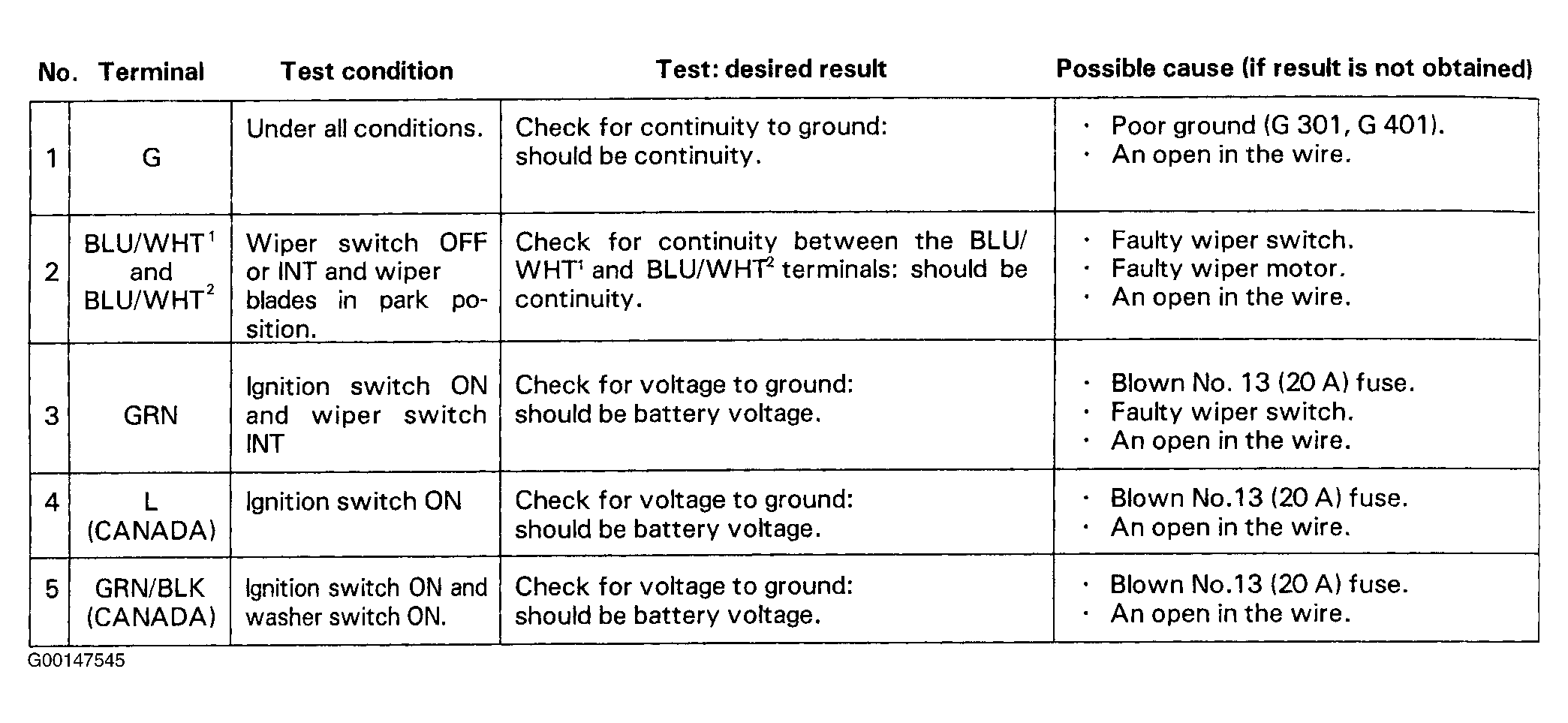

Fig 1: Wiper System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.

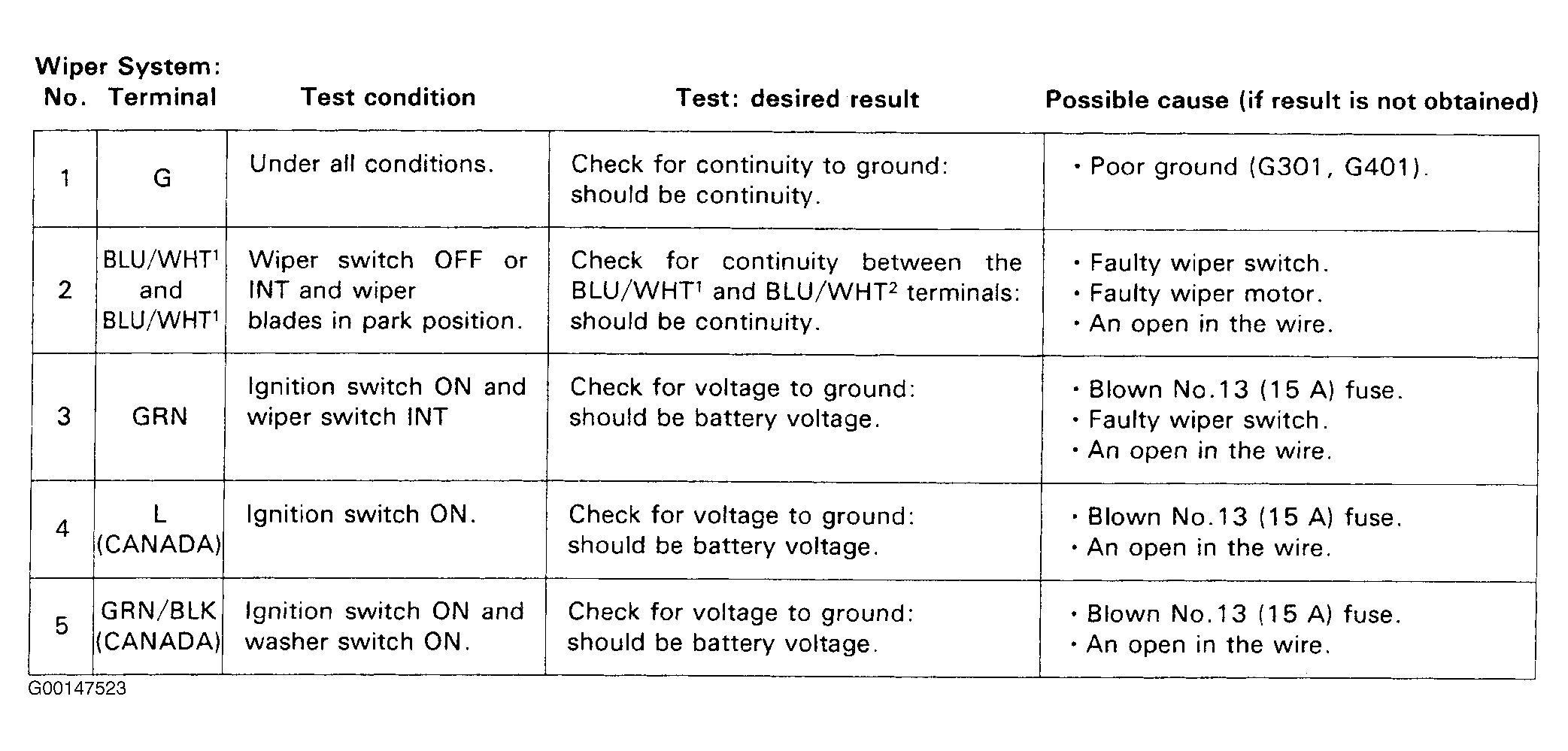

Fig 2: Wiper System Input Test (1991 Civic Wagon)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
