Relay Test

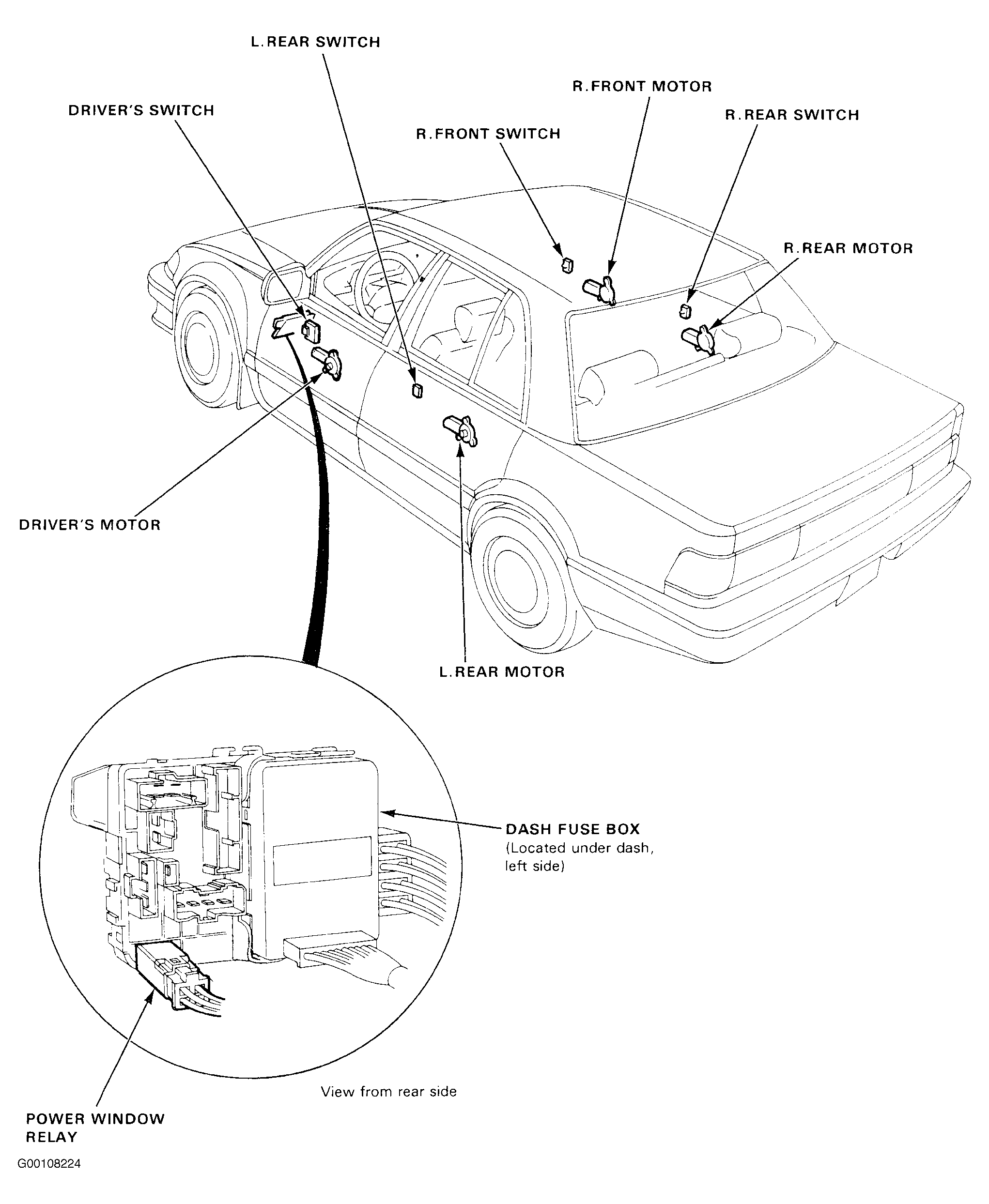

  1. Remove the relay from the dash fuse box. See Figure .
  2. There should be continuity between the A and B terminals when the battery is connected to the C and D terminals. See Fig 1 . There should be no continuity when the battery is disconnected.

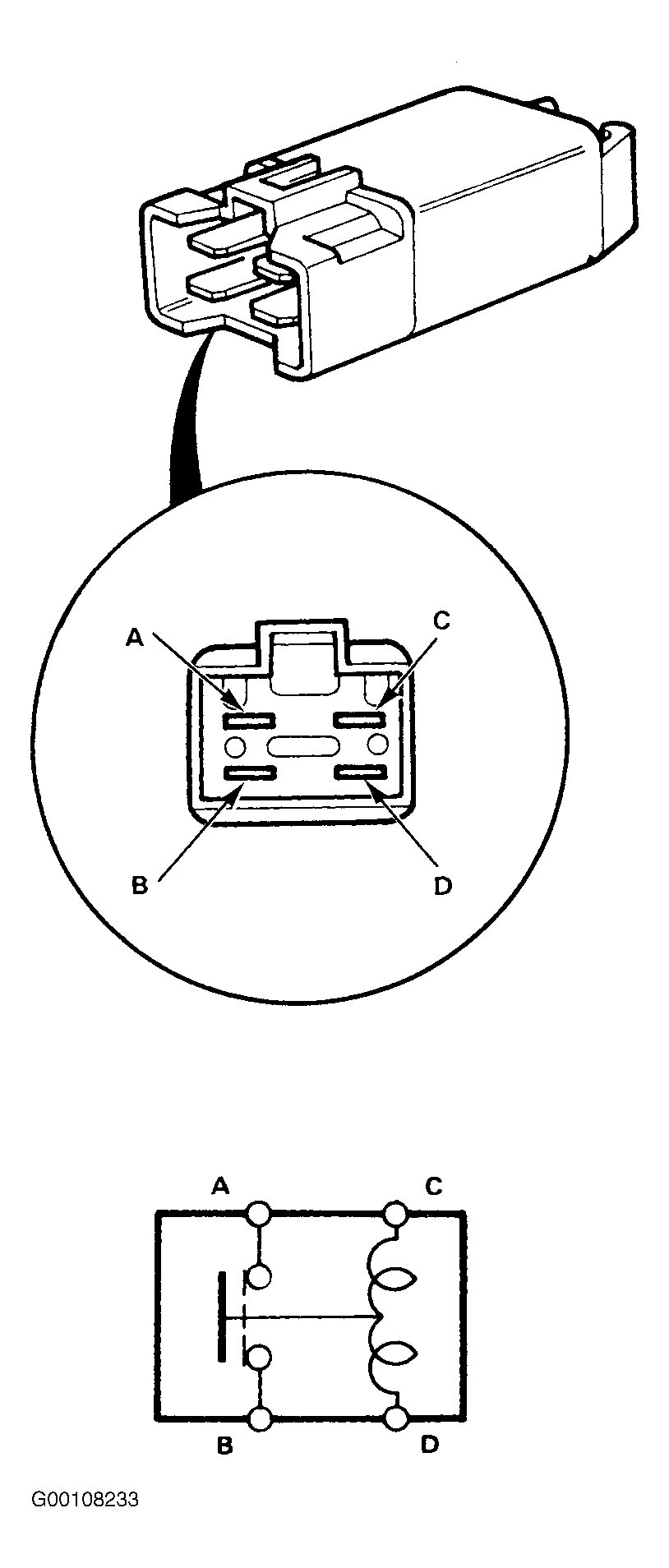

Fig 1: Identifying Power Window Relay Terminals
G00108233Courtesy of AMERICAN HONDA MOTOR CO., INC.
