Master Switch Test
Remove power window master switch. See MASTER POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1

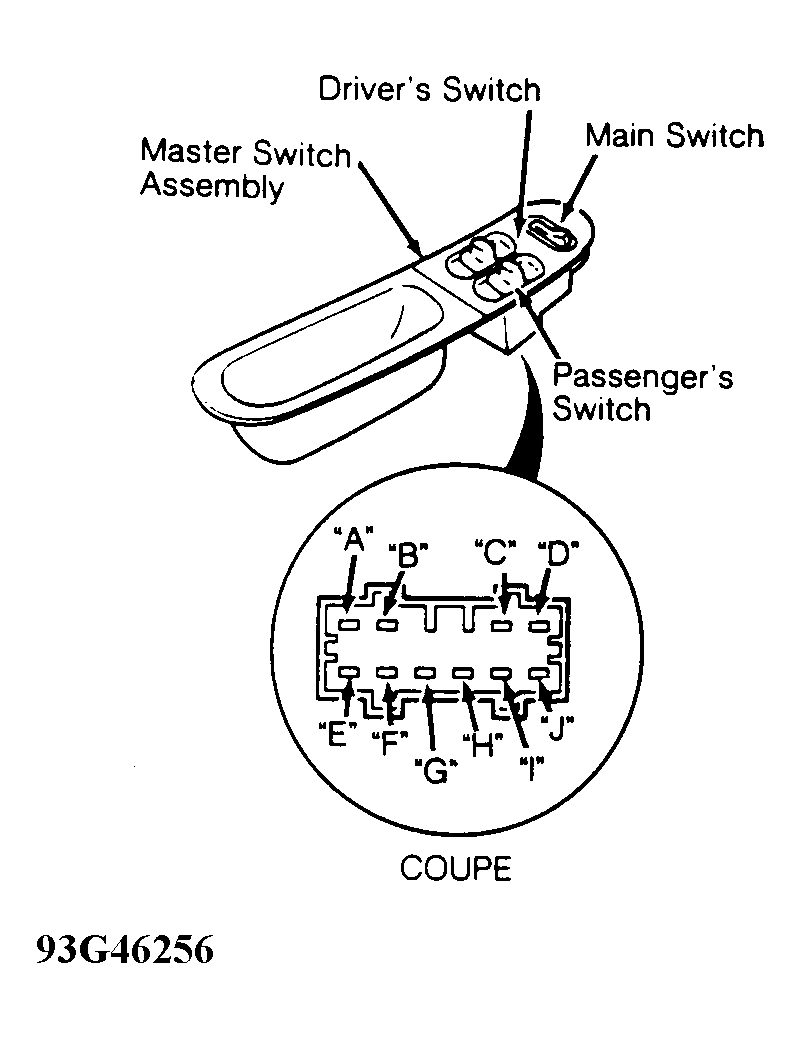

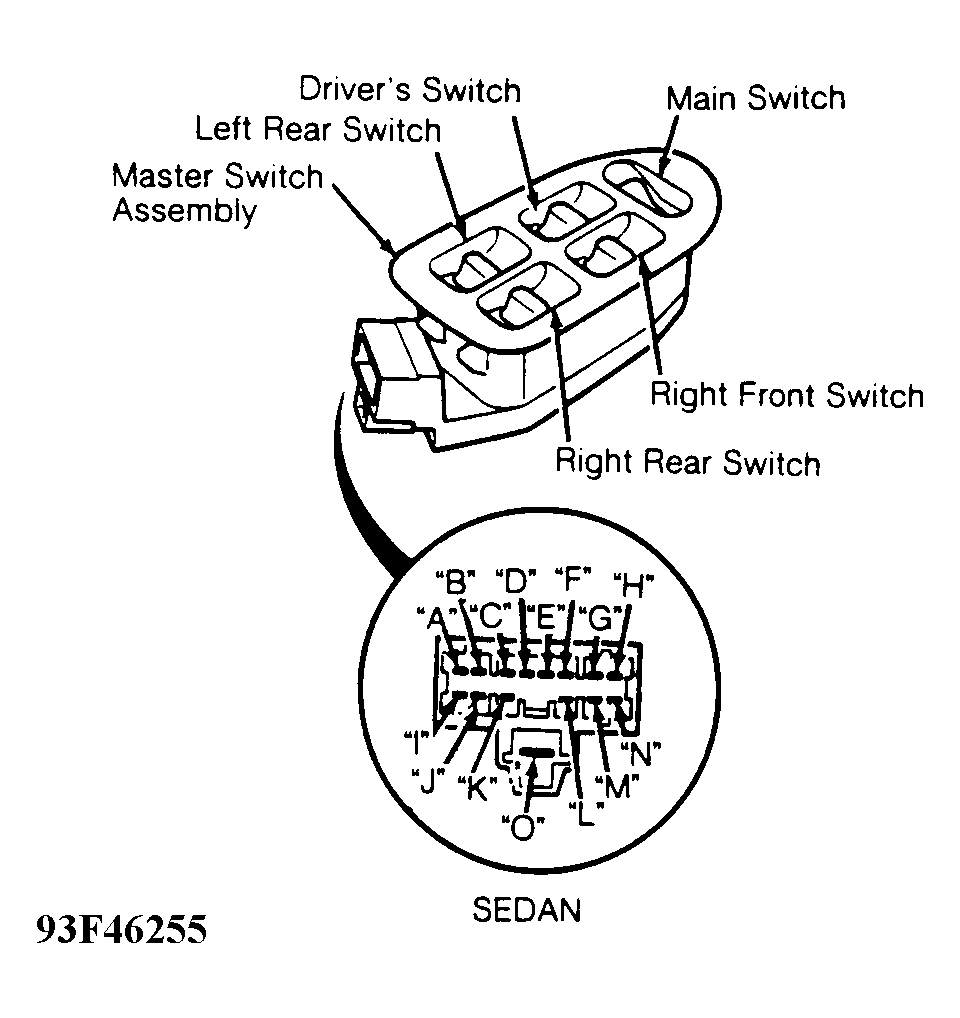

or Fig 2
. See appropriate POWER WINDOW MASTER SWITCH CONTINUITY TEST table.
Courtesy of AMERICAN HONDA MOTOR CO., INC. POWER WINDOW MASTER SWITCH CONTINUITY TEST (COUPE)
| Position |
Main Switch |
Pin Continuity |
| Driver' Switch |
| Off |
|
"H", "I" & "J" |
| Up |
|
"C" & "J"; "H" & "I" |
| Down |
|
"C" & "H"; "I" & "J" |
| Down (AUTO) |
|
"C" & "H"; "I" & "J" |
| Passenger's Switch |
| Off |
On |
"A", "B" & "E" |
| Off |
Off |
"A" & "B" |
| Up |
On |
"A" & "F"; "B" & "E" |
| Up |
Off |
"A" & "F" |
| Down |
On |
"A" & "E"; "B" & "F" |
| Down |
Off |
"B" & "F" |
Courtesy of AMERICAN HONDA MOTOR CO., INC. POWER WINDOW MASTER SWITCH CONTINUITY TEST (SEDAN)
| Position |
Main Switch |
Pin Continuity |
| Left Front Switch |
| Off |
|
"N", "C" & "K" |
| Up |
|
"N" & "C"; "F" & "K" |
| Down |
|
"F" & "N"; "C" & "K" |
| Down (AUTO) |
|
"F" & "N"; "C" & "K" |
| Right Front Switch |
| Off |
On |
"D", "E" & "O" |
| Off |
Off |
"D" & "E" |
| Up |
On |
"D" & "O"; "E" & "G" |
| Up |
Off |
"E" & "G" |
| Down |
On |
"E" & "O"; "D" & "G" |
| Down |
Off |
"D" & "G" |
| Right Rear Switch |
| Off |
On |
"L", "M" & "O" |
| Off |
Off |
"L" & "M" |
| Up |
On |
"L" & "O"; "M" & "H" |
| Up |
Off |
"M" & "H" |
| Down |
On |
"M" & "O"; "L" & "H" |
| Down |
Off |
"L" & "H" |
| Left Rear Switch |
| Off |
On |
"I", "J" & "O" |
| Off |
Off |
"I" & "J" |
| Up |
On |
"I" & "O"; "J" & "B" |
| Up |
Off |
"J" & "B" |
| Down |
On |
"J" & "O"; "I" & "B" |
| Down |
Off |
"I" & "B" |
