Throttle Control Cable
NOTE:
Before adjusting throttle control cable, ensure throttle
cable connecting accelerator pedal to throttle body linkage
has .39-.47" (10-12 mm) deflection with throttle closed. If
deflection is not as specified, loosen lock nuts and adjust
throttle cable.

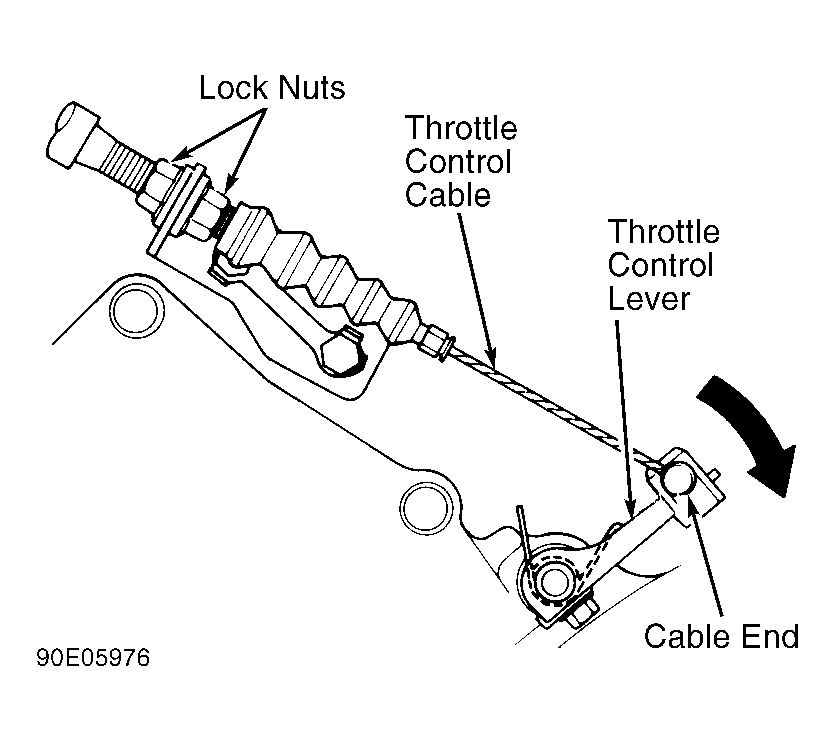

- With engine idling at normal operating temperature (cooling fan comes on), loosen throttle control cable adjustment lock nuts at transaxle control lever bracket. See Fig 1.
- Adjust lock nuts to synchronize movement of transaxle throttle control lever and throttle body throttle lever/linkage. Tighten adjustment lock nuts.
