Power Control Unit (PCU) Disassembly/Reassembly

Remove the PCU (see POWER CONTROL UNIT (PCU) REMOVAL/INSTALLATION ).

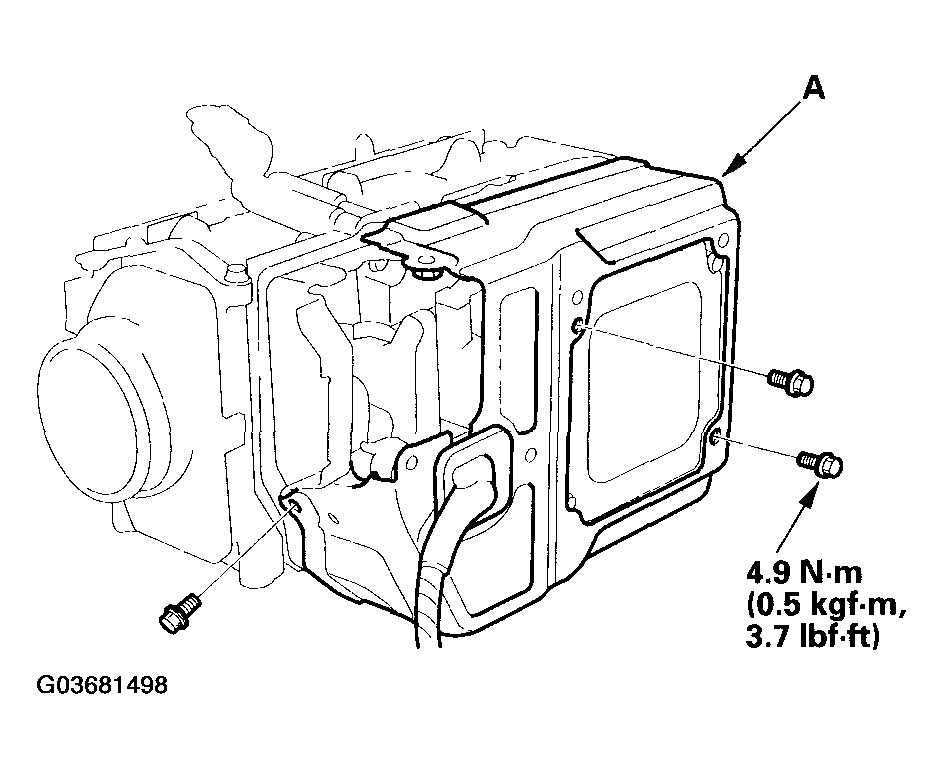

Remove the cover (A).

Fig 1: Removing Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

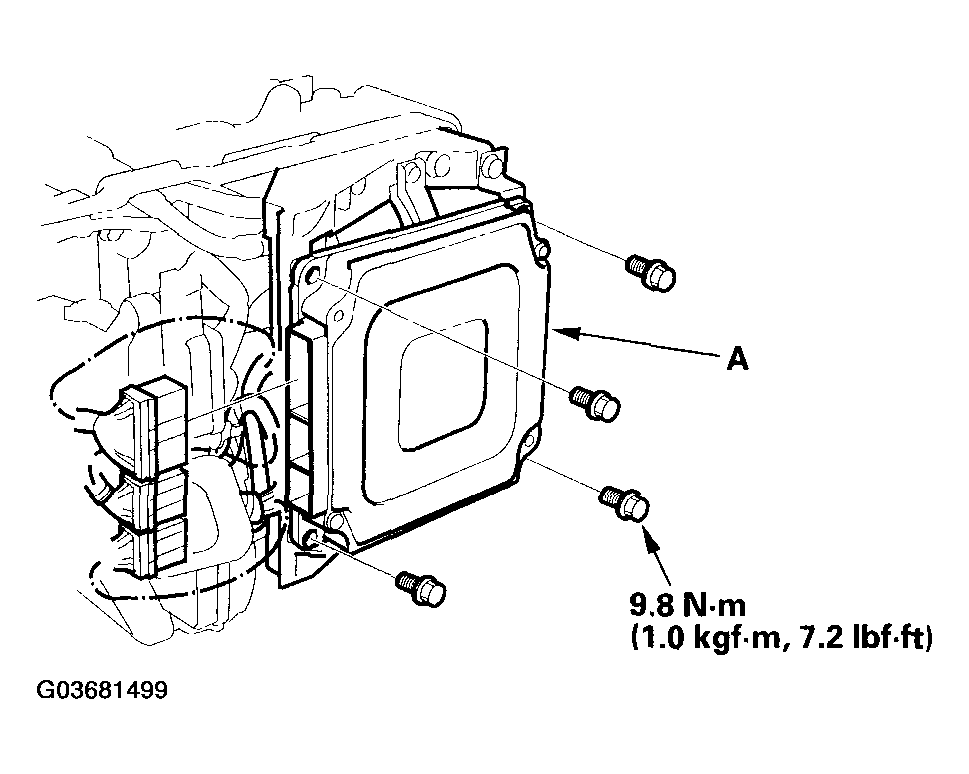

Remove the voltage converter module (A).

Fig 2: Removing Voltage Converter Module
Courtesy of AMERICAN HONDA MOTOR CO., INC.

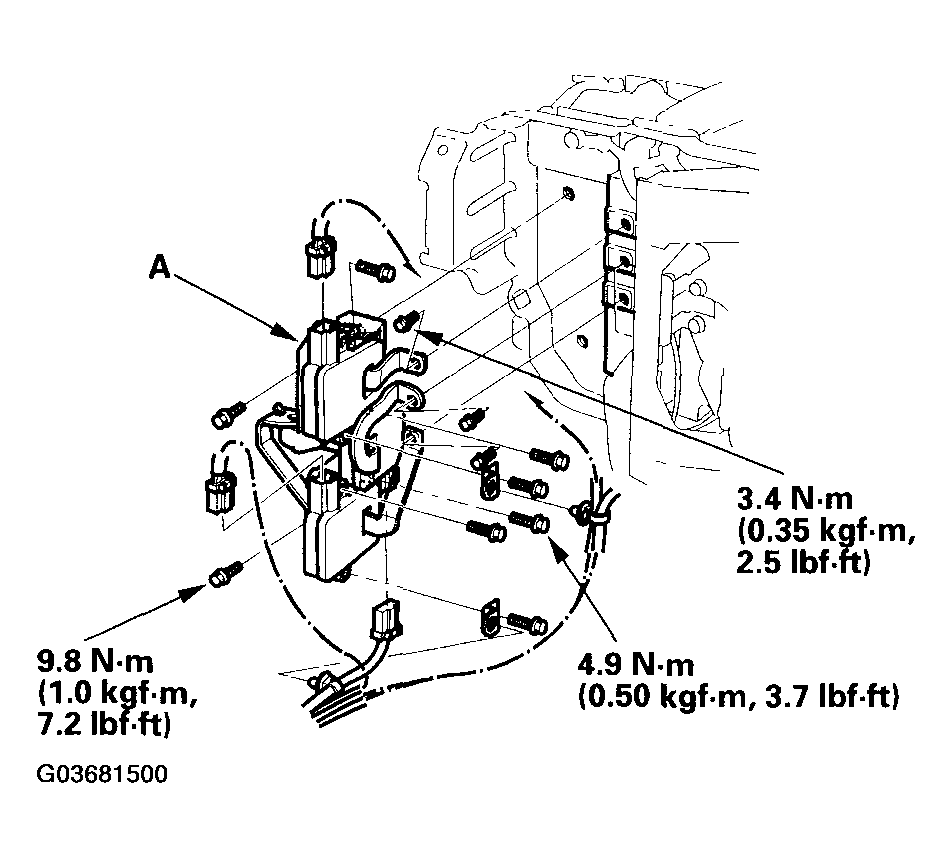

Remove the motor current sensors (GRAY) (A).
NOTE: When reassembling the motor current sensors, align the bus bars so the motor cable connections are properly aligned.

Fig 3: Removing Motor Current Sensors (Gray)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

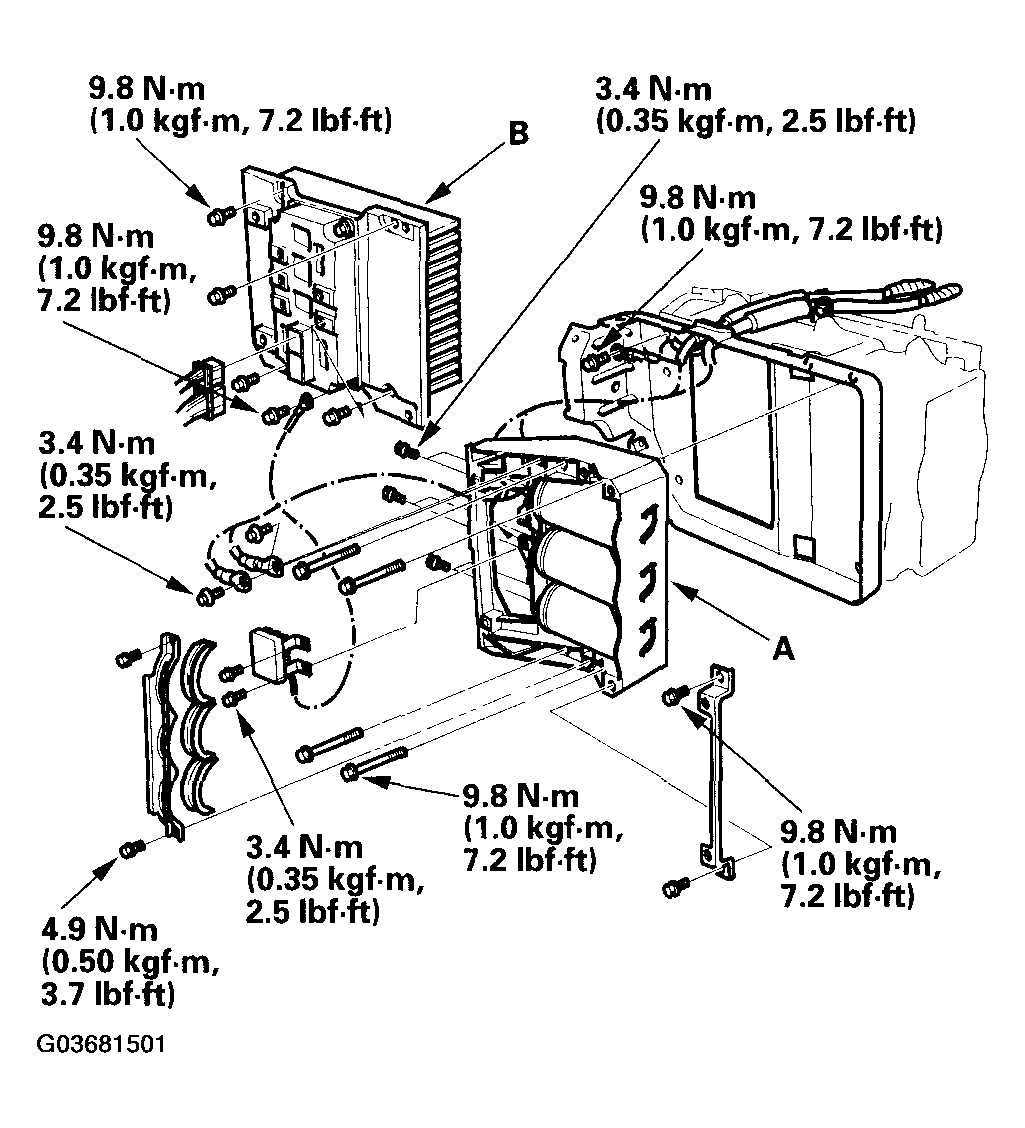

Remove the condenser (A) and MPI module (B).

Fig 4: Removing Condenser And MPI Module
Courtesy of AMERICAN HONDA MOTOR CO., INC.

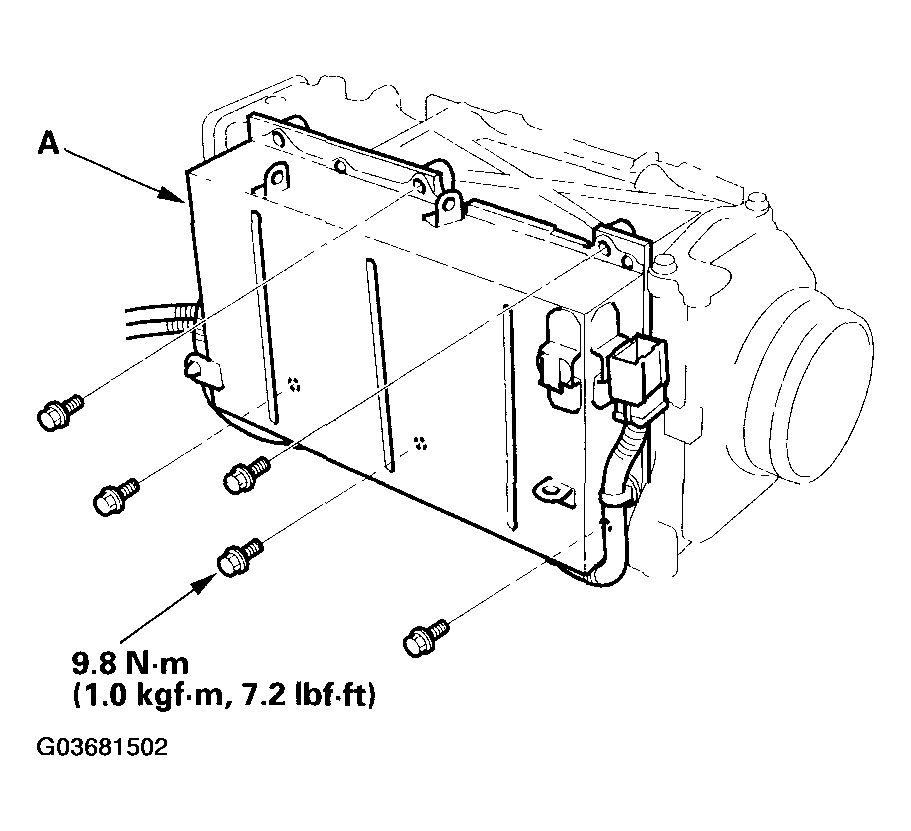

Remove the DC-DC converter (A).

Fig 5: Removing DC-DC Converter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
