No. 1 Speaker With Box: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
1. Using a Torx socket wrench T20, install the 4 screws and the stereo component amplifier assembly.

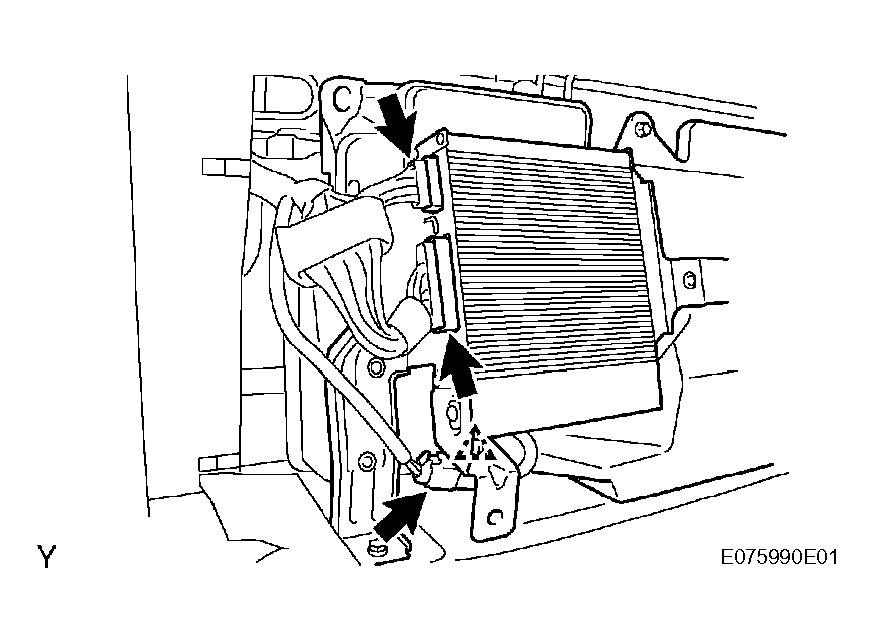

  Fig 1: Installing Stereo Component Amplifier Assembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 SPEAKER ASSEMBLY WITH BOX
1. Install the No. 1 speaker assembly with box with the 4 bolts.
  Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)

  NOTE: Install the bolts in the order shown in Fig 2.

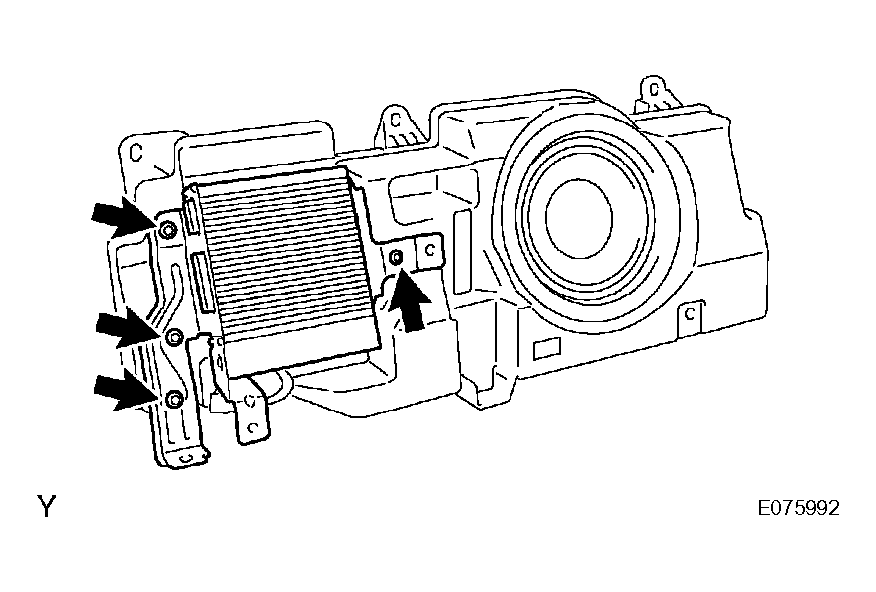

  Fig 2: Installing No. 1 Speaker Assembly With Box With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
3. Install the clamp.
INSTALL LUGGAGE COMPARTMENT SIDE TRAY (See INSTALLATION )
INSTALL REAR SEATBACK ASSEMBLY LH (See INSTALLATION )
INSTALL REAR SEATBACK ASSEMBLY RH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

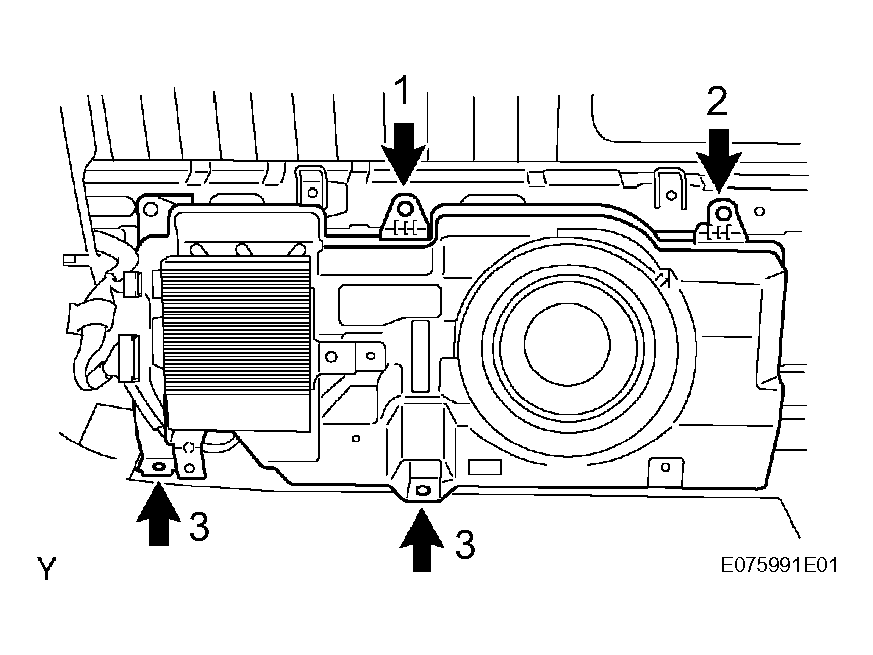

Fig 3: Installing Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
