Headlight Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 1 HEADLIGHT, BULB
1. Install the No. 1 headlight bulb.

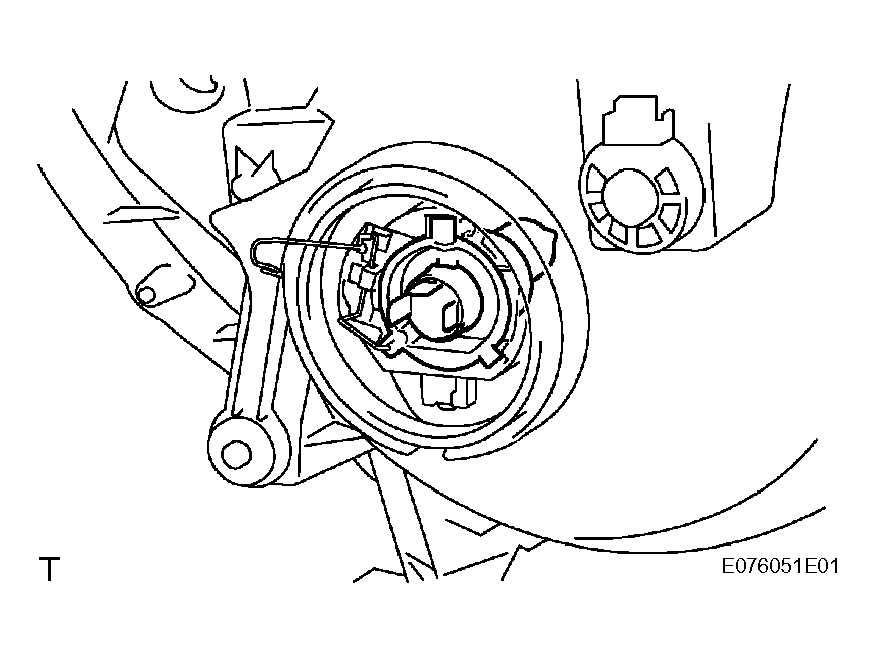

  Fig 1: Installing No. 1 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Lock the set spring by moving it in the direction indicated by the arrow in Fig 2.

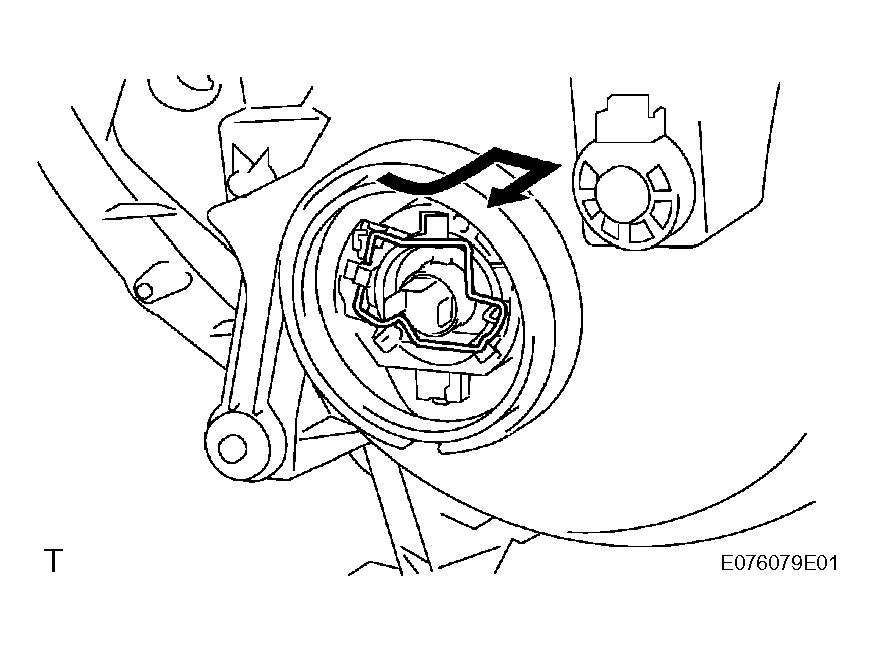

  Fig 2: Locking Set Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the socket cover.

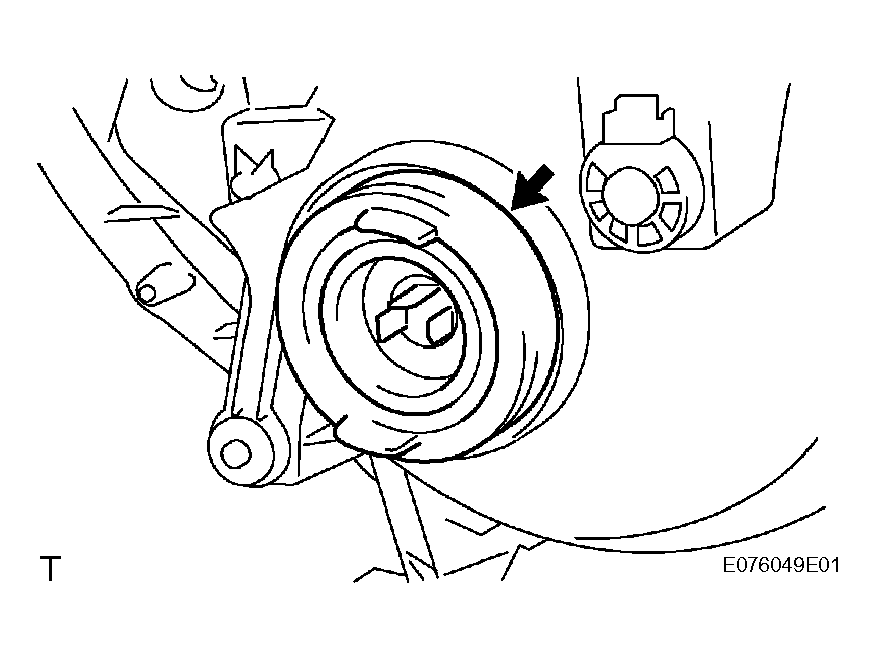

  Fig 3: Installing Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLEARANCE LIGHT BULB
1. Install the clearance light bulb into the light socket.
2. To install the clearance light bulb socket and bulb, turn them in the direction indicated by the arrow in Fig 4.

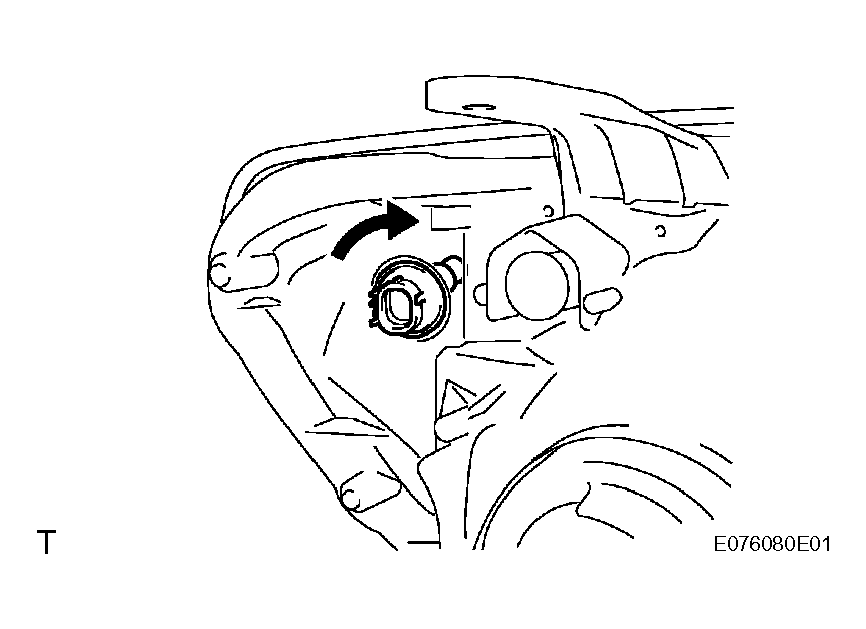

Fig 4: Installing Clearance Light Bulb
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT TURN SIGNAL LIGHT BULB
1. Install the front turn signal light bulb into the light socket.
2. To install the front turn signal light bulb socket and bulb, turn them in the direction indicated by the arrow in Fig 5.

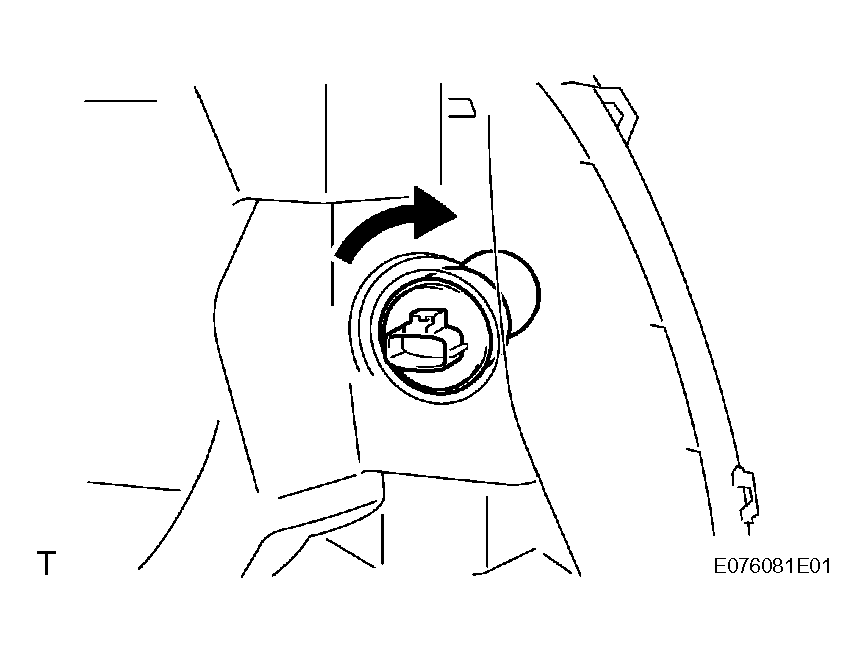

Fig 5: Installing Front Turn Signal Light Bulb
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEADLIGHT ASSEMBLY
1. Connect the 3 connectors.
2. Install the LH headlight assembly with the bolt and 3 screws.
  Torque: 2.0 N*m (20 kgf*cm, 17 in.*lbf)

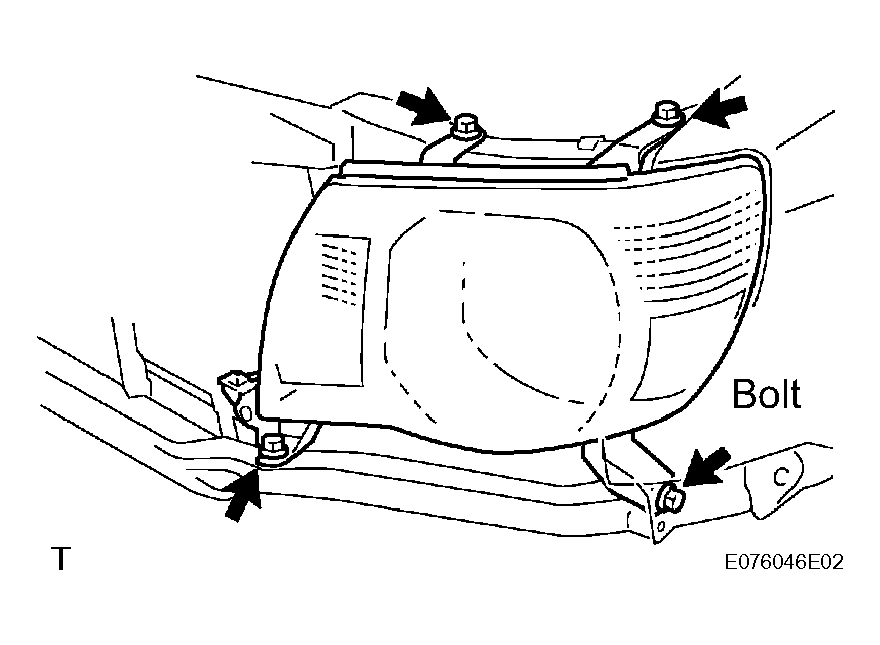

  Fig 6: Installing LH Headlight Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER FILLER (See INSTALLATION )
INSTALL FRONT BUMPER COVER (See INSTALLATION )
INSTALL RADIATOR GRILLE (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT (See ADJUSTMENT )
PREPARATION FOR HEADLIGHT AIMING (for Using a Tester) (See ADJUSTMENT )
PREPARATION FOR HEADLIGHT AIMING (for Using a Screen) (See ADJUSTMENT )
HEADLIGHT AIMING INSPECTION (See ADJUSTMENT )
HEADLIGHT AIMING ADJUSTMENT (See ADJUSTMENT )
