INSTALL STEERING PAD SWITCH LH

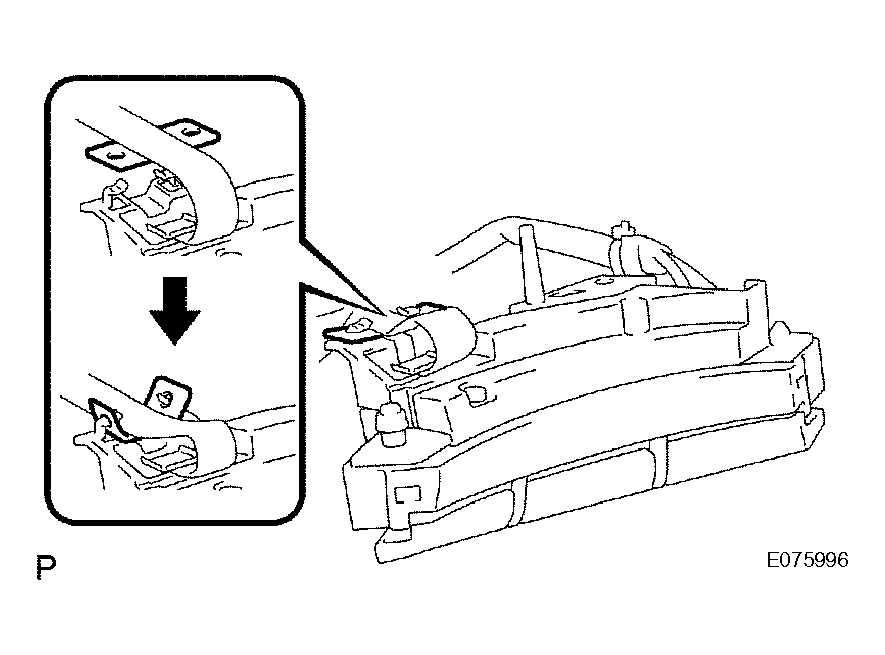

1. Install the steering pad switch cable onto the steering pad switch LH while holding the connector cover.

  Fig 1: Installing Steering Pad Switch Cable Onto Steering Pad Switch LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

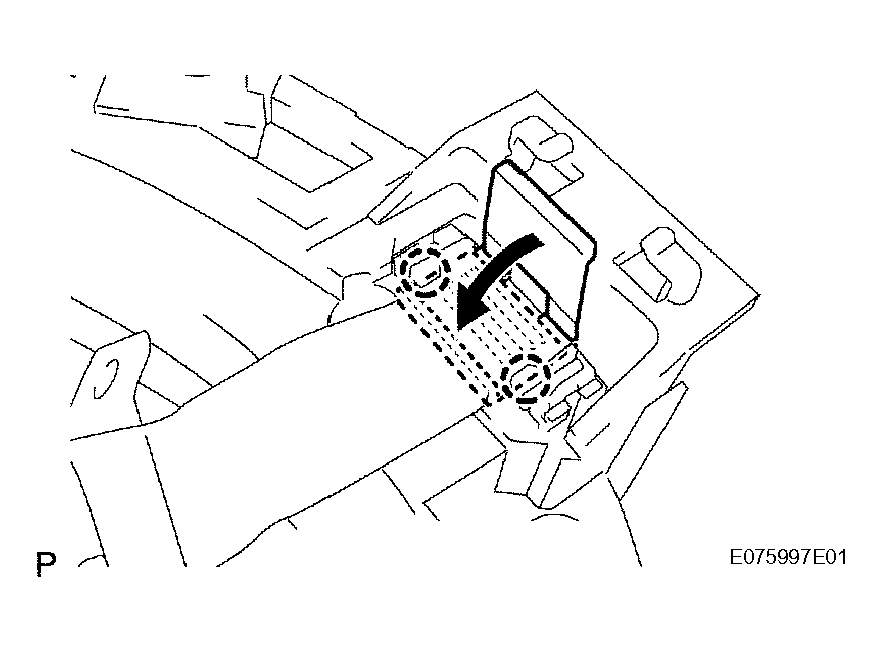

2. Hold the connector cover down to engage the 2 claws as shown in Fig 2.

  Fig 2: Engaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

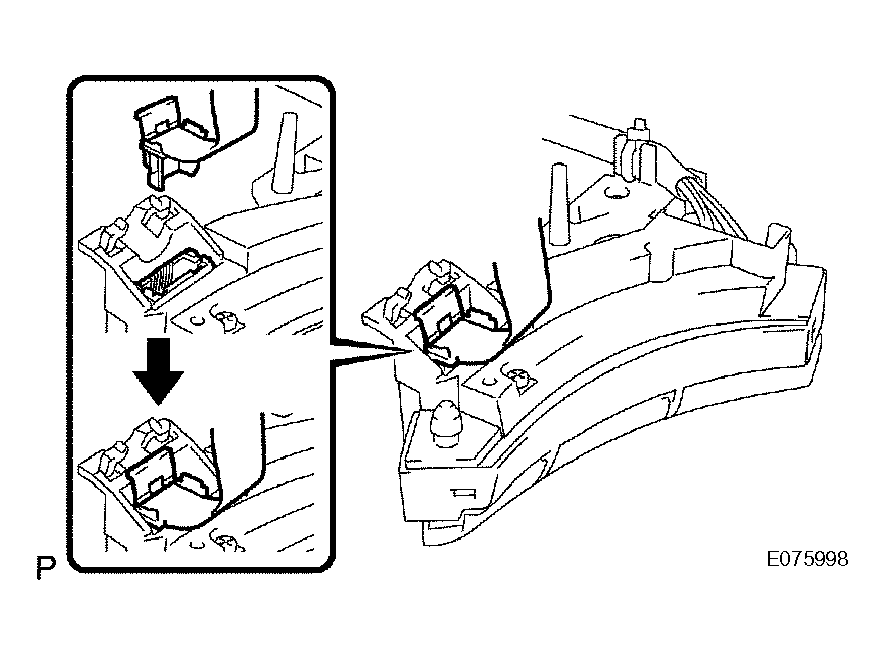

3. Install the tab of the steering pad switch cable onto the steering pad switch LH as shown in Fig 3.

  Fig 3: Installing Tab Of Steering Pad Switch Cable Onto Steering Pad Switch LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

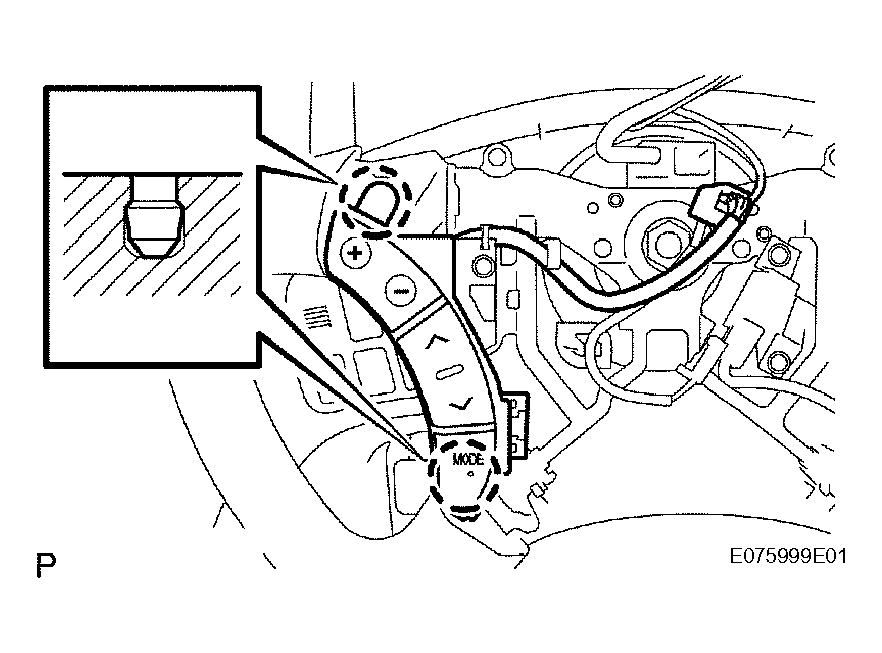

4. Engage the 2 pins and install the steering pad switch LH.

  Fig 4: Installing Steering Pad Switch LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the screw.
6. Connect the connector.
INSTALL HORN BUTTON ASSEMBLY (See ON-VEHICLE INSPECTION )
INSTALL NO. 3 LOWER STEERING WHEEL COVER (See INSTALLATION )
INSTALL NO. 2 LOWER STEERING WHEEL COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

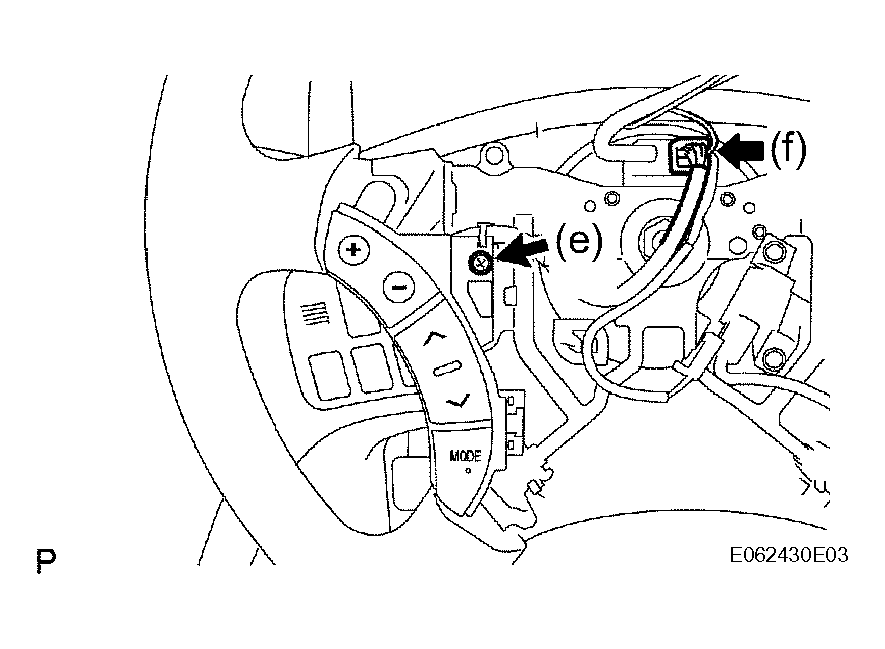

Fig 5: Connecting Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT HORN BUTTON ASSEMBLY (See ON-VEHICLE INSPECTION )
INSPECT SRS WARNING LIGHT (See INSTALLATION )
