Audio Remote Switch Test

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.

1. Remove the audio remote switch:
   • With HandsFreeLink system (see WITH HANDSFREELINK SYSTEM  ).
   • Without HandsFreeLink system (see WITHOUT HANDSFREELINK SYSTEM  ).

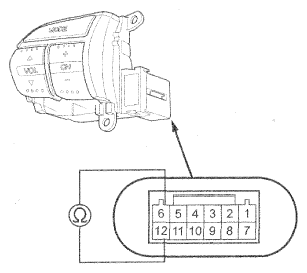

     Fig 1: Measuring Resistance Between Terminals No. 6 And No. 12

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Measure the resistance between the terminals No. 6 and No. 12 in each switch position according to the table.
   TERMINAL RESISTANCE REFERENCE CHART



   Position	Resistance
   No button pressed	About 10 kΩ
   MODE	About 3.7 kΩ
   CH (+)	About 1.7 kΩ
   CH (-)	About 775 Ω
   ↑ (VOL.UP)	About 357 Ω
   ↓ (VOL.DOWN)	About 100 Ω

3. If the resistance is not as specified, replace the audio remote switch:
   • With HandsFreeLink system (see WITH HANDSFREELINK SYSTEM  ).
   • Without HandsFreeLink system (see WITHOUT HANDSFREELINK SYSTEM  ).
