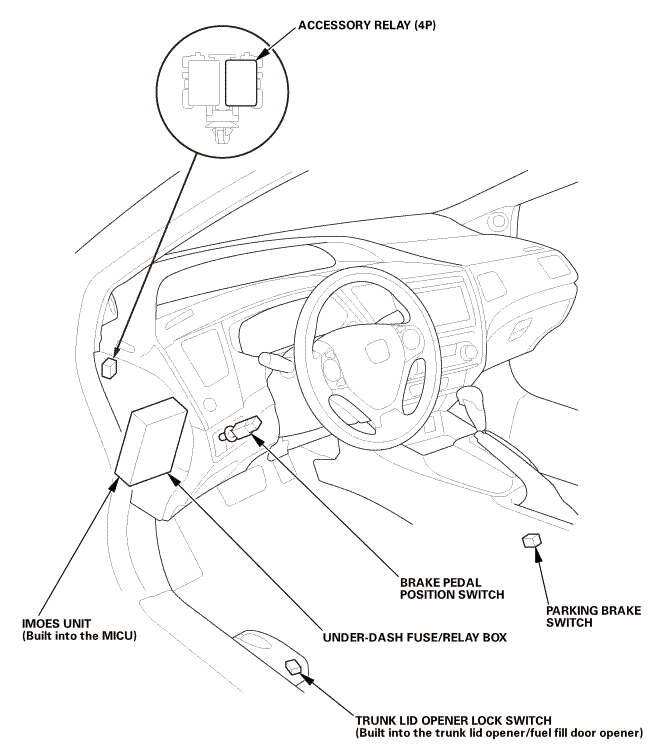

| ACCESSORY RELAY (4P) |
Test - Refer to: Power Relay Test (2012),
or Power Relay Test (2013),
or Power Relay Test (2014 - 2015) |
| BRAKE PEDAL POSITION SWITCH |
Test - Refer to: Brake Pedal Position Switch Test (2014 - 2015) |

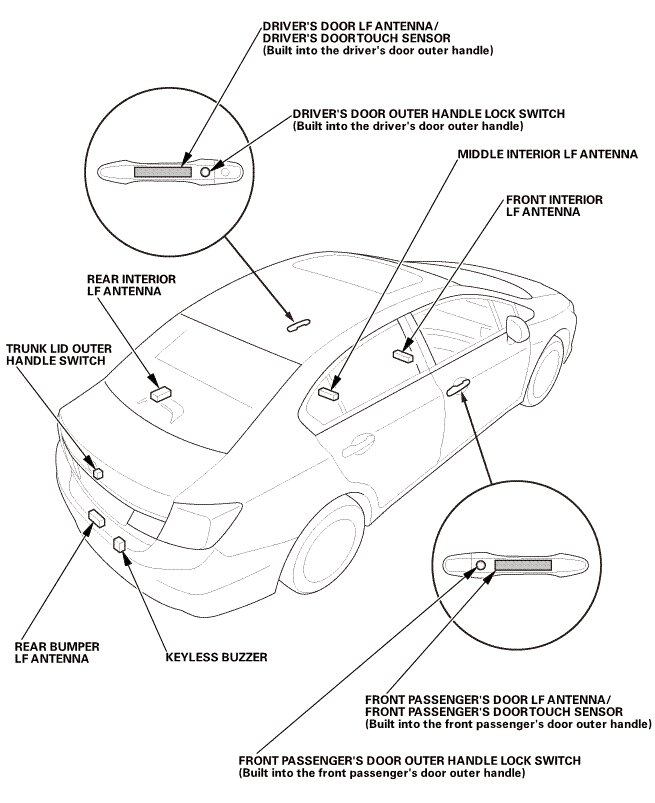

| DRIVER'S DOOR OUTER HANDLE LOCK SWITCH/LF ANTENNA/TOUCH SENSOR (Built into the driver's door outer handle) |
LF Antenna Test - Refer to: Door and Trunk LF Antenna Test (2014 - 2015), or Interior LF Antenna Test (2014 - 2015) |
| Outer Handle Removal and Installation |
| Touch Sensor Circuit Troubleshooting |

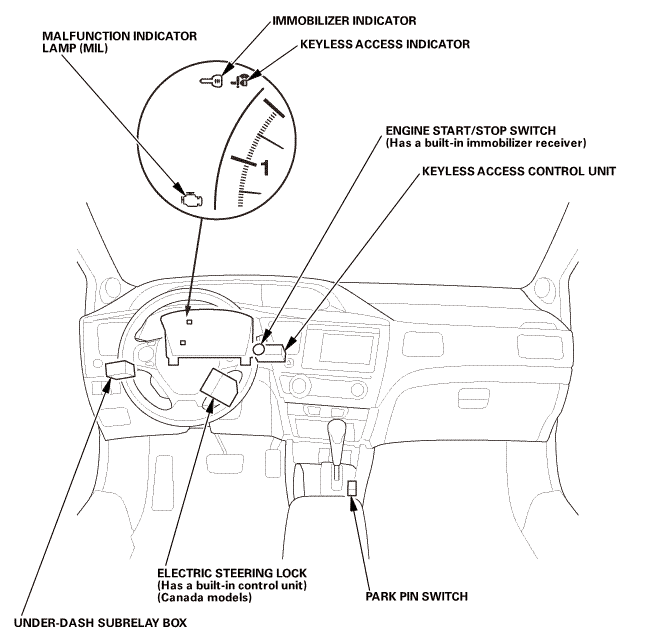

| ELECTRIC STEERING LOCK (Has a built-in control unit) (Canada models) |
Input Test - Refer to: Keyless Access System (Keyless Access Control Unit) Input Test (2014 - 2015), or Keyless Access System (Keyless Access Control Unit and Electric Steering Lock) Input Test (2014 - 2015) |
| Removal and Installation |
| ENGINE START/STOP SWITCH |
Removal and Installation |
| Test |
| FRONT INTERIOR LF ANTENNA |
Removal and Installation - Refer to: Keyless Access LF Antenna (Front Interior) Removal and Installation, |
| Test - Refer to: Door and Trunk LF Antenna Test (2014 - 2015), or Interior LF Antenna Test (2014 - 2015) |
| FRONT PASSENGER'S DOOR OUTER HANDLE LOCK SWITCH/LF ANTENNA/TOUCH SENSOR (Built into the front passenger's door outer handle) |
LF Antenna Test - Refer to: Door and Trunk LF Antenna Test (2014 - 2015), or Interior LF Antenna Test (2014 - 2015) |
| Outer Handle Removal and Installation |
| Touch Sensor Circuit Troubleshooting |
| IMOES UNIT (Built into the MICU) |
Removal and Installation - Refer to: Under-Dash Fuse/Relay Box Removal and Installation (KA models with Keyless Access System),
or Under-Dash Fuse/Relay Box Removal and Installation (KA KX models without Keyless Access System) |
| KEYLESS ACCESS CONTROL UNIT |
Input Test - Refer to: Keyless Access System (Keyless Access Control Unit) Input Test (2014 - 2015), or Keyless Access System (Keyless Access Control Unit and Electric Steering Lock) Input Test (2014 - 2015) |
| Removal and Installation |
| KEYLESS BUZZER |
Circuit Troubleshooting |
| Removal and Installation |
| MIDDLE INTERIOR LF ANTENNA |
Removal and Installation - Refer to: Keyless Access LF Antenna (Middle Interior) Removal and Installation |
| Test - Refer to: Door and Trunk LF Antenna Test (2014 - 2015), or Interior LF Antenna Test (2014 - 2015) |

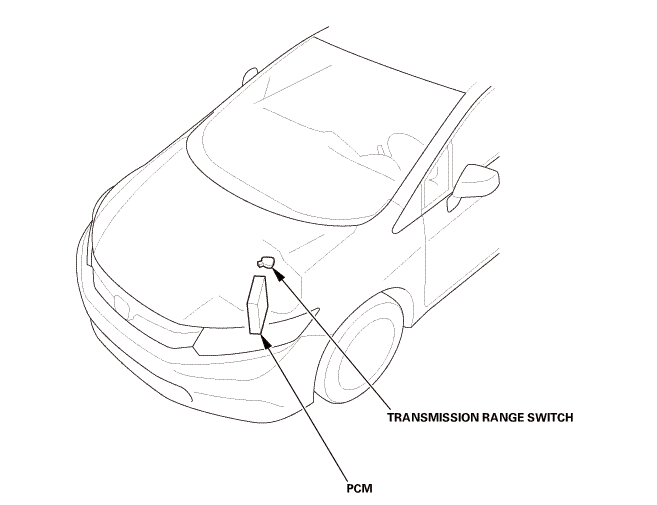

| PCM |
Removal and Installation - Refer to: PCM Update,
or PCM Removal and Installation (Without Keyless Access System),
or PCM Removal and Installation (With Keyless Access System) |
| Update - Refer to: PCM Update,
or PCM Removal and Installation (Without Keyless Access System),
or PCM Removal and Installation (With Keyless Access System) |
| PARK PIN SWITCH |
Test |
| PARKING BRAKE SWITCH |
Test |
| REAR BUMPER LF ANTENNA |
Removal and Installation - Refer to: Keyless Access LF Antenna (Rear Bumper) Removal and Installation,
. |
| Test - Refer to: Door and Trunk LF Antenna Test (2014 - 2015), or Interior LF Antenna Test (2014 - 2015) |
| REAR INTERIOR LF ANTENNA |
Removal and Installation - Refer to: Keyless Access LF Antenna (Rear Interior) Removal and Installation,
. |
| Test - Refer to: Door and Trunk LF Antenna Test (2014 - 2015), or Interior LF Antenna Test (2014 - 2015) |

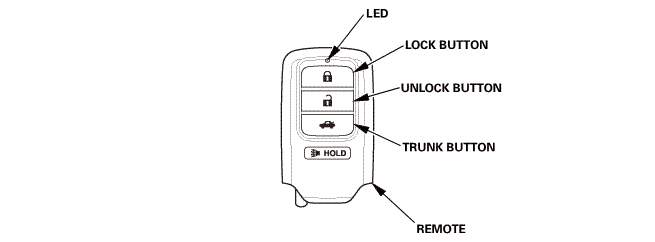

| REMOTE |
Registration |
| Test |
| TRANSMISSION RANGE SWITCH |
Removal and Installation |
| Test |
| TRUNK LID OPENER LOCK SWITCH (Built into the trunk lid opener/fuel fill door opener) |
Removal and Installation |
| Test |
| TRUNK LID OUTER HANDLE SWITCH |
Removal, Installation, and Test |
| UNDER-DASH SUBRELAY BOX |
Removal, Installation, and Test |
