Keyless/Power Door Locks/Security System Component Location Index (2012 - 2013)

WARNING: This page is about a different variant/trim than selected.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

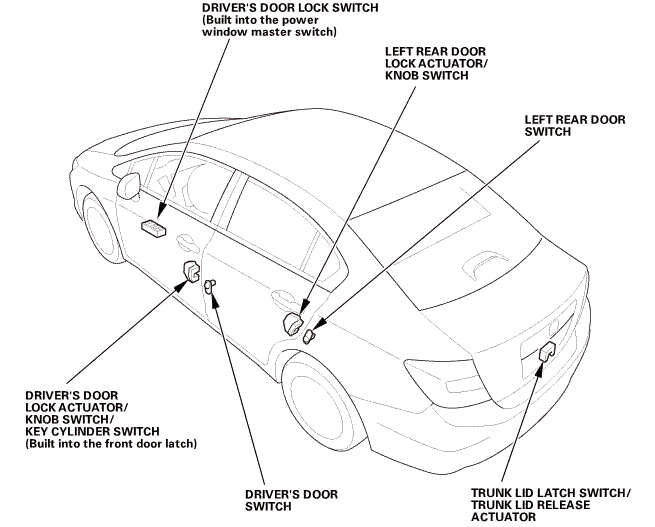

DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH/KEY CYLINDER SWITCH (Built into the front door latch)	Door Lock Actuator Test - Refer to: Rear Door Lock Actuator Test, or Front Door Lock Actuator Test
	Door Key Cylinder Switch Test
	Door Lock Knob Switch Test - Refer to: Front Door Lock Knob Switch Test, or Rear Door Lock Knob Switch Test
	Door Latch Removal and Installation
DRIVER'S DOOR LOCK SWITCH (Built into the power window master switch)	Removal and Installation - Refer to: Front Passenger's Power Window Switch Removal and Installation, or Rear Power Window Switch Removal and Installation
	Input Test - Refer to: Power Window Master Switch Input Test (2012 - 2013),

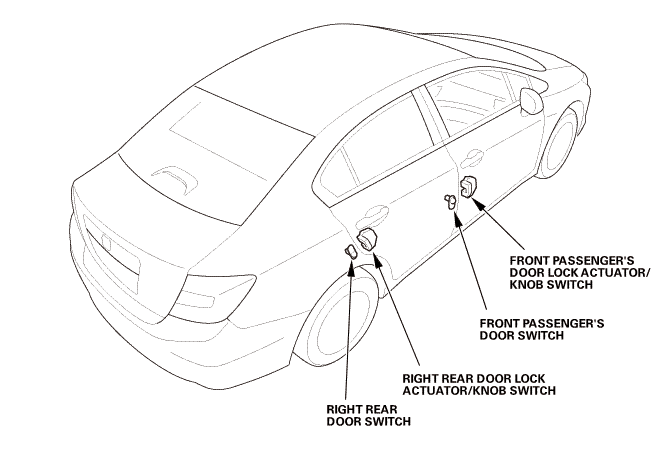

FRONT PASSENGER'S DOOR LOCK ACTUATOR/KNOB SWITCH	Door Lock Actuator Test - Refer to: Rear Door Lock Actuator Test, or Front Door Lock Actuator Test
	Door Lock Knob Switch Test - Refer to: Front Door Lock Knob Switch Test, or Rear Door Lock Knob Switch Test
	Door Latch Removal and Installation

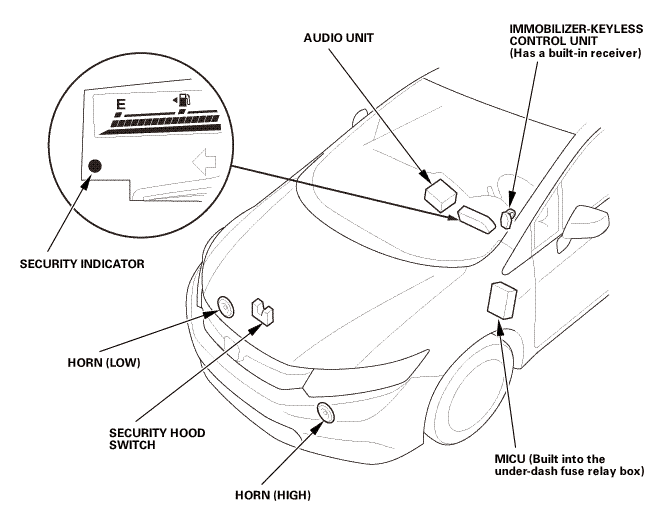

IMMOBILIZER-KEYLESS CONTROL UNIT (Has a built-in receiver)	Input Test
IMMOBILIZER-KEYLESS CONTROL UNIT (Has a built-in receiver)	Removal and Installation - Refer to: Immobilizer-Keyless Control Unit Removal and Installation, or Immobilizer-Keyless Control Unit Registration
LEFT REAR DOOR LOCK ACTUATOR/KNOB SWITCH	Door Lock Actuator Test - Refer to: Rear Door Lock Actuator Test, or Front Door Lock Actuator Test
	Door Lock Knob Switch Test - Refer to: Front Door Lock Knob Switch Test, or Rear Door Lock Knob Switch Test
	Door Latch Removal and Installation
MICU (Built into the under-dash fuse/relay box)	Input Test - Refer to: MICU Input Test (2012 - 2013),
MICU (Built into the under-dash fuse/relay box)	Removal and Installation - Refer to: Under-Dash Fuse/Relay Box Removal and Installation (KA models with Keyless Access System), or Under-Dash Fuse/Relay Box Removal and Installation (KA KX models without Keyless Access System)
RIGHT REAR DOOR LOCK ACTUATOR/KNOB SWITCH	Door Lock Actuator Test - Refer to: Rear Door Lock Actuator Test, or Front Door Lock Actuator Test
	Door Lock Knob Switch Test - Refer to: Front Door Lock Knob Switch Test, or Rear Door Lock Knob Switch Test
	Door Latch Removal and Installation
SECURITY HOOD SWITCH	Test
HORN	Test

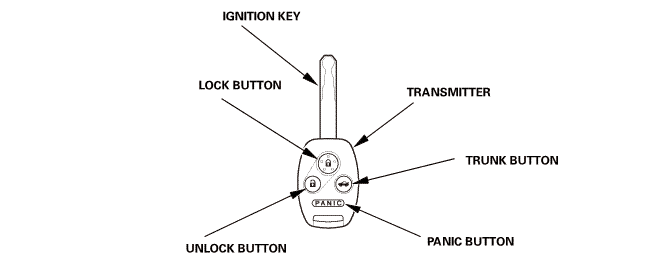

TRANSMITTER	Test
TRUNK LID LATCH SWITCH (Built into the trunk lid latch)	Removal and Installation
TRUNK LID LATCH SWITCH (Built into the trunk lid latch)	Test
TRUNK LID RELEASE ACTUATOR (Built into the trunk lid latch)	Test
