Window Antenna Repair: Reconditioning

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Window Antenna - Repair

Courtesy of HONDA, U.S.A., INC.

NOTE: To make an effective repair, the broken section must be no longer than 25 mm (0.98 in).

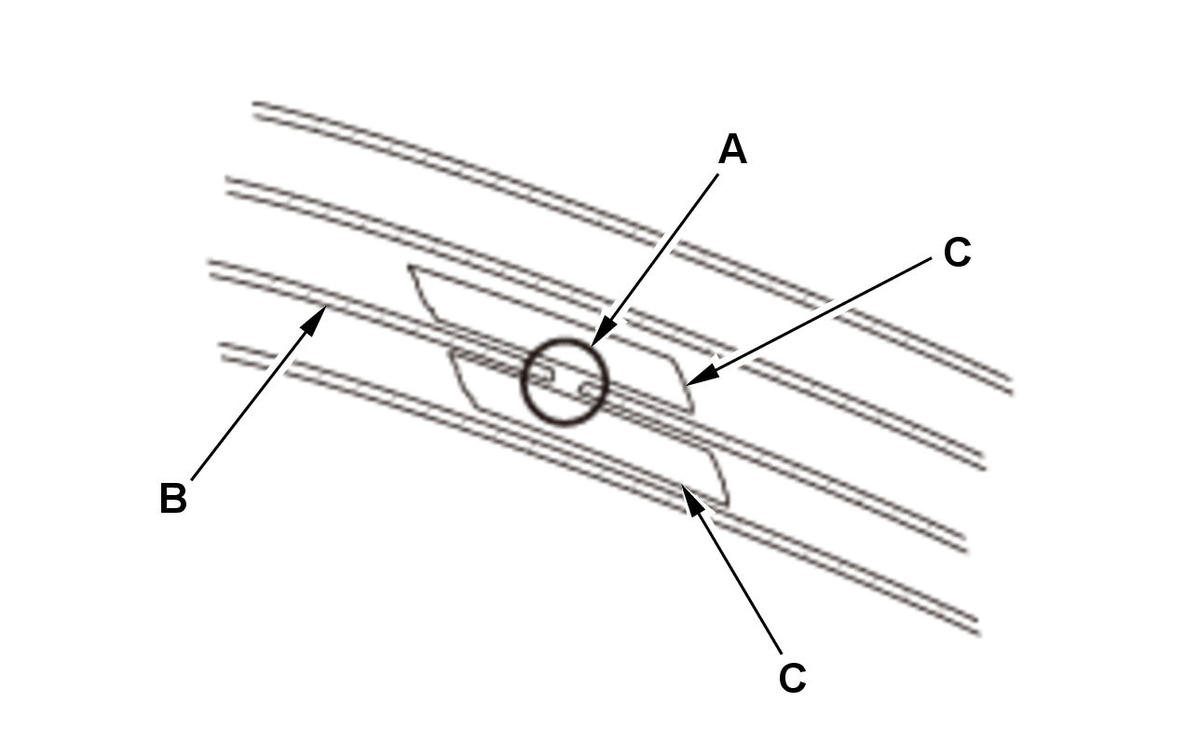

1. Lightly rub the area around the broken section (A) with fine steel wool, then clean it with isopropyl alcohol.

2. Carefully mask above and below the broken area of the window antenna wire (B) with cellophane tapes (C).

Courtesy of HONDA, U.S.A., INC.

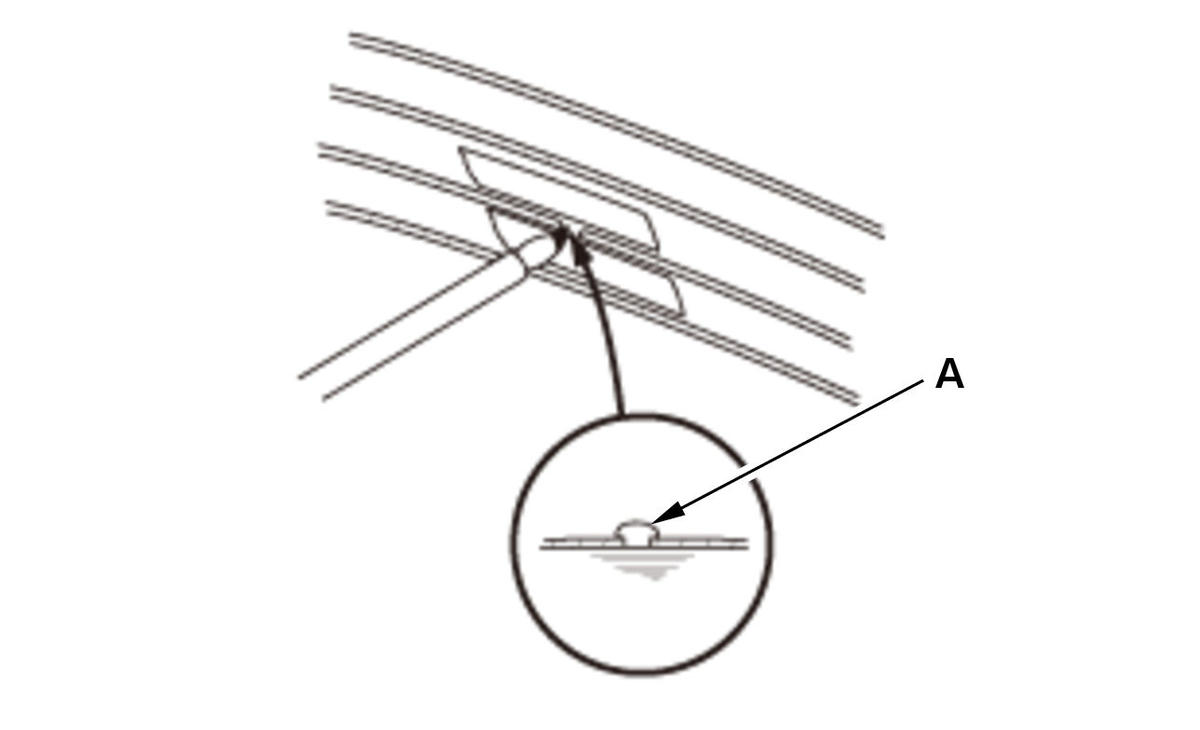

3. Using a small brush, apply a heavy coat of silver conductive paint (commercially available) (A) extending about 3.0 mm (0.118 in) on both sides of the break. Allow 25 minutes to dry.

4. Do the function test to confirm that the wire is repaired.

5. Apply a second coat of paint in the same way. Let it dry 3 hours before removing the tape.
