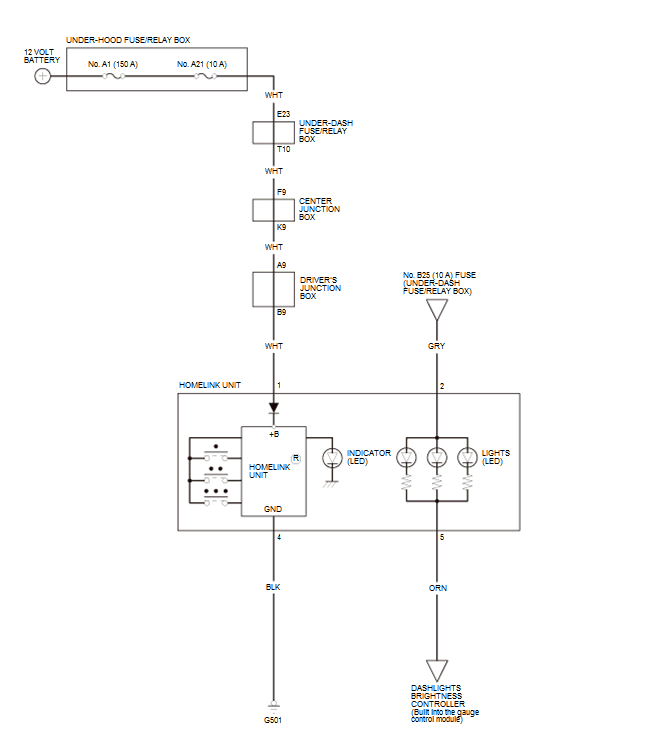

HomeLink Remote Control System Circuit Diagram (2014)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
