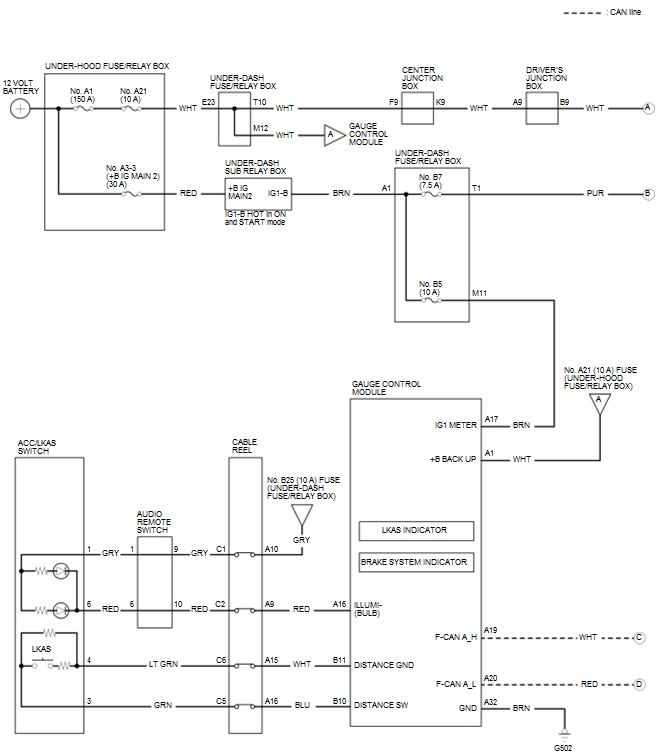

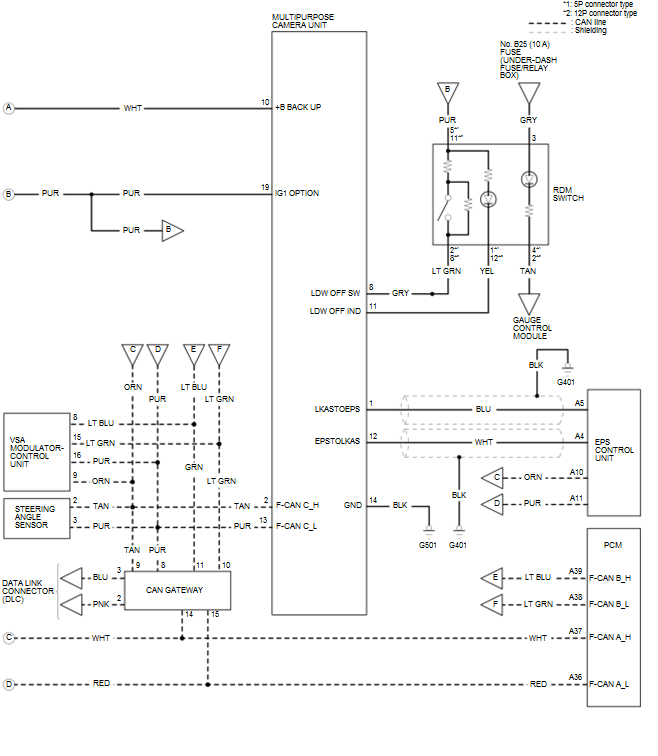

Lane Keeping Assist System (LKAS) Circuit Diagram (2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
