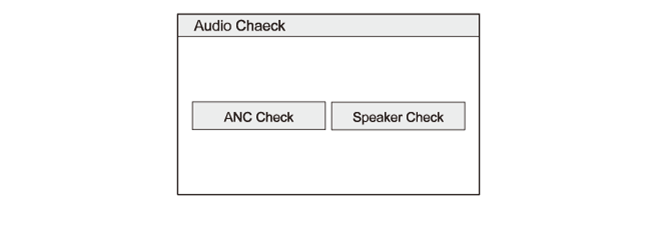

Audio Check
These screens allow you to troubleshoot the audio function.
- ANC Check
- Speaker Check

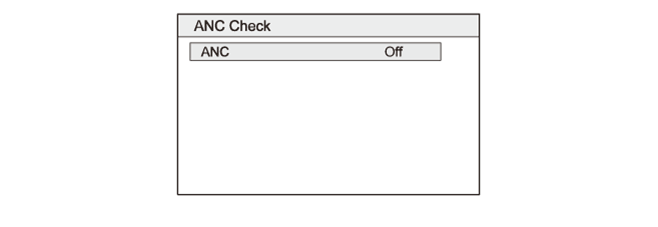

ANC Check
This screen allows you to ON or OFF the ANC Setting function.

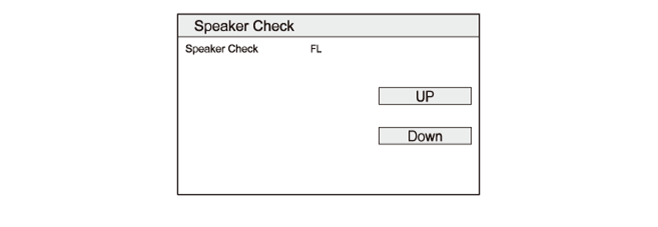

Speaker Check
This diagnosis checks the audio speakers individually.
NOTE:
- Make sure the audio system is off before this diagnosis.
- While doing this diagnosis, the sound volume can be adjusted.
Select the UP icon or the Down icon to check speakers. A tone should sound from the speaker.
| When you select Up icon, the system checks the speakers in this order: (1) → (2) → (3) → (4) → (5) → (6) → (7) → (8) → (1) |
| When you select Down icon, the system checks the speakers in this order: (1) → (8) → (7) → (6) → (5) → (4) → (3) → (2) → (1) |
| Display Message | Vehicle Test Condition | |
|---|---|---|
| (1) | FL | You should hear a tone from the driver's door speaker. |
| (2) | FR | You should hear a tone from the front passenger's door speaker. |
| (3) | RR | You should hear a tone from the right rear door speaker. |
| (4) | SWF *1 | You should hear a tone from the subwoofer. |
| (5) | RL | You should hear a tone from the left rear door speaker. |
| (6) | FL-TW *2 | You should hear a tone from the left tweeter. |
| (7) | FR-TW *2 | You should hear a tone from the right tweeter. |
| (8) | ALL | You should hear a tone from all speakers. |
*1: With stereo amplifier
*2: With tweeter
