Audio and Visual System Circuit Diagram (Without Navigation, With Display Audio) (2017)

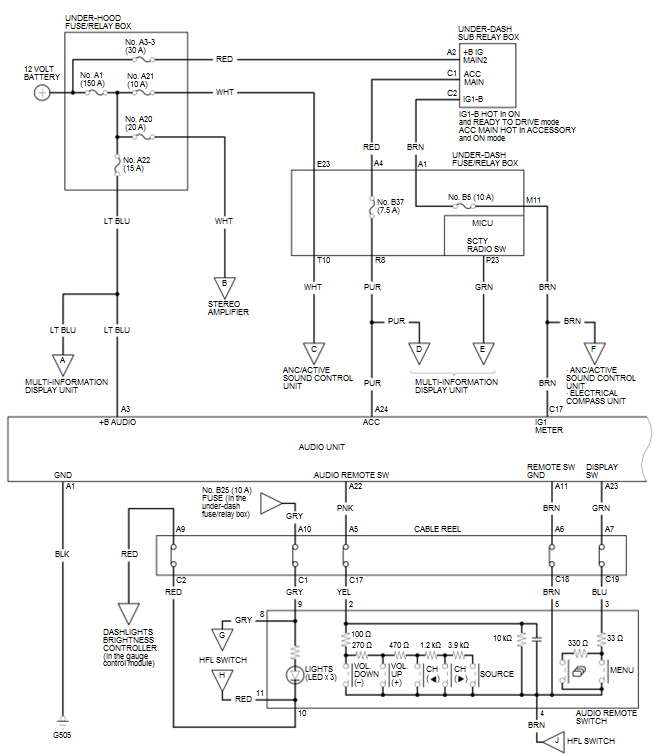

GHH254896

Courtesy of HONDA, U.S.A., INC.

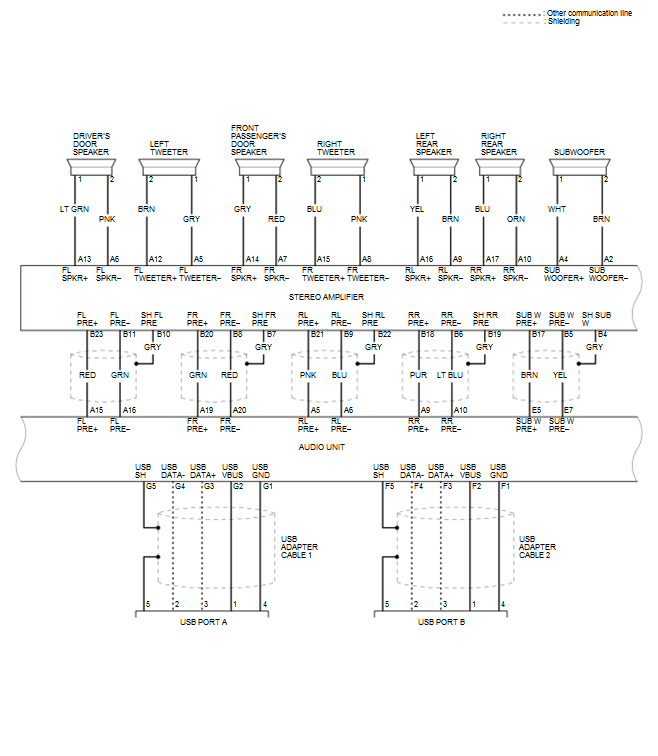

GHH254897

Courtesy of HONDA, U.S.A., INC.

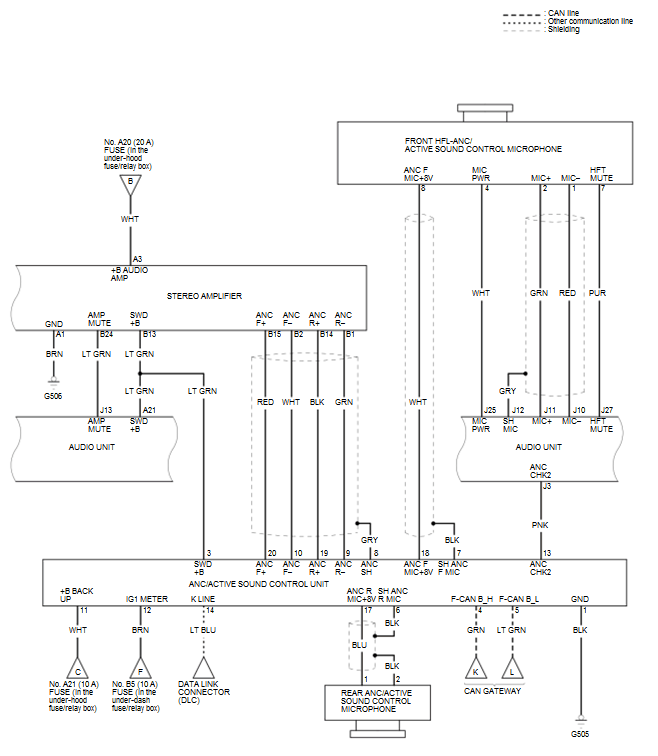

GHH254898

Courtesy of HONDA, U.S.A., INC.

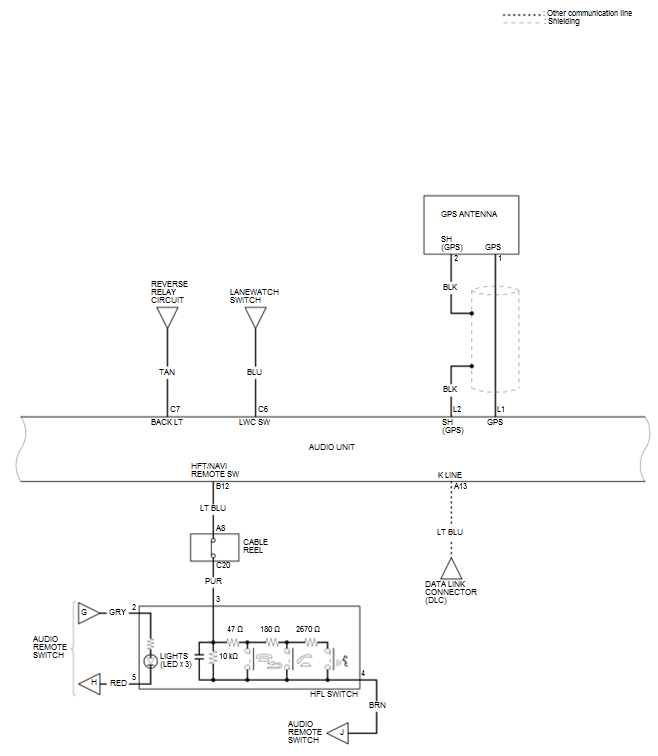

GHH254899

Courtesy of HONDA, U.S.A., INC.

GHH254900

Courtesy of HONDA, U.S.A., INC.

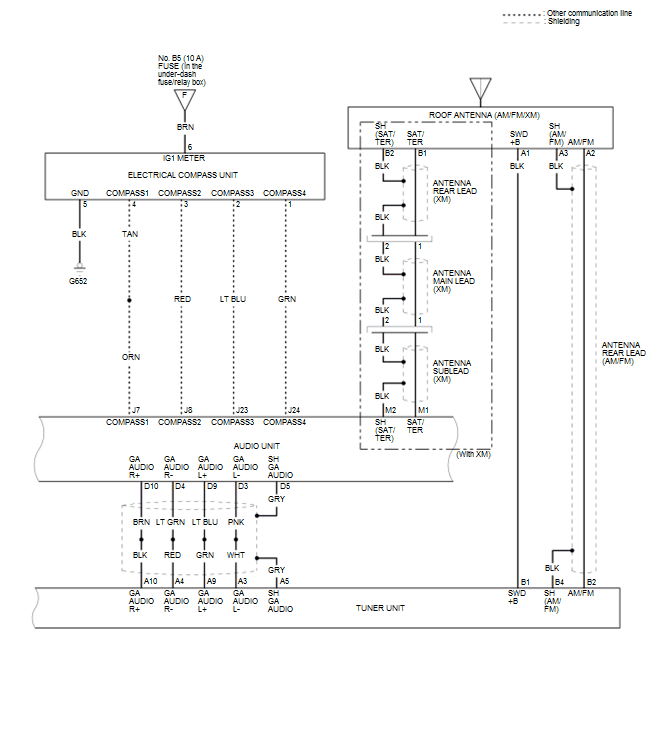

GHH254901

Courtesy of HONDA, U.S.A., INC.

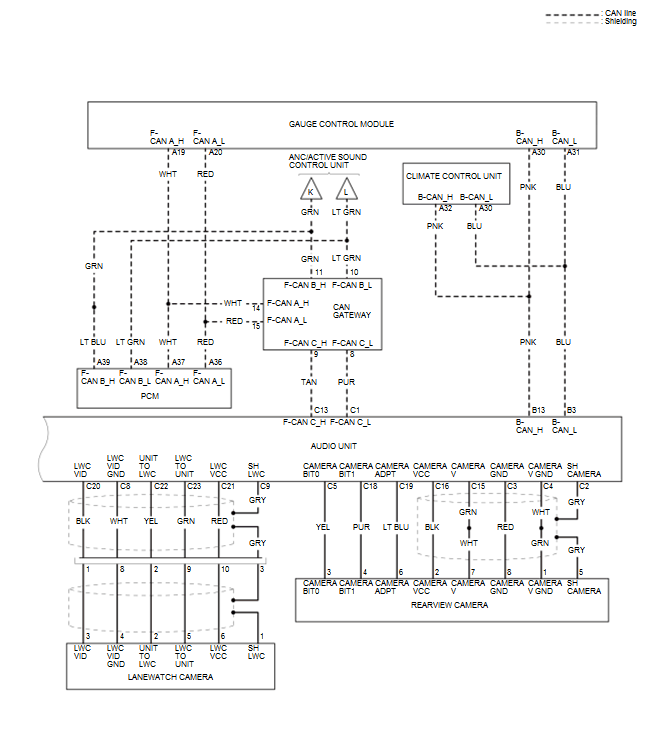

GHH254902

Courtesy of HONDA, U.S.A., INC.
