Audio Remote Switch Test (With Display Audio) (2017): Test

SRS components are located in this area. Before doing repairs or service, review the SRS Component Location Index (2017) and the precautions and procedures .

1. Steering Wheel Trim - Remove

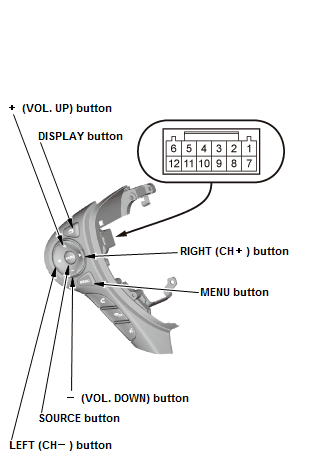

2. Audio Remote Switch - Test

   Courtesy of HONDA, U.S.A., INC.

   1. Measure the resistance between terminals No. 2 and No. 5 in each switch position according to the table. 2. Measure the resistance between terminals No. 3 and No. 5 in each switch position according to the table. 3. If the resistance is not as specified, replace the audio remote switch.

   Position	Resistance
   No button pressed	About 10 kΩ
   SOURCE	About 3.7 kΩ
   RIGHT (CH +)	About 1.7 kΩ
   LEFT (CH -)	About 775 Ω
   + (VOL. UP)	About 357 Ω
   - (VOL. DOWN)	About 99 Ω

   Button held down	Resistance
   MENU	About 33 Ω
   DISPLAY	About 363 Ω

3. All Removed Parts - Install

   Install the audio remote switch in the reverse order of removal.
