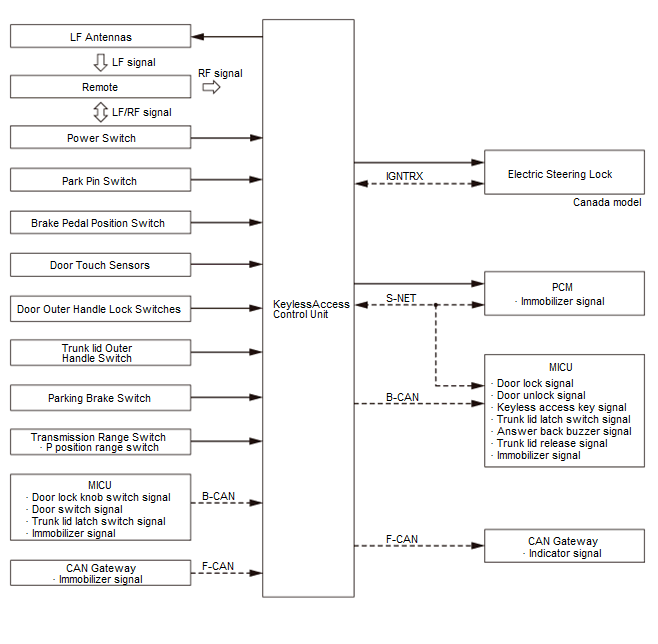

Keyless Access System Description - System Diagram (2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
