Driver's Power Seat Motor Test (With DPMS): Test

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (2014 2015), or SRS Component Location Index (2017) and the precautions and procedures before doing repairs or service.

1. Front Seat Recline Cover - Remove
   NOTE: If removing the driver's seat recline cover, you do not need to remove the driver's seat.
2. Driver's Power Seat Motor - Test

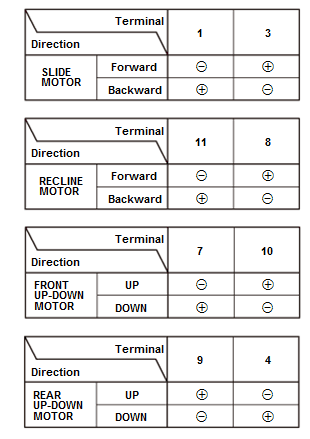

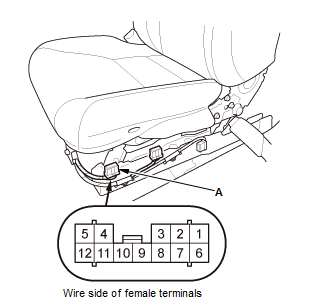

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.	1. Test the motor by applying power and ground at the connector (A) on the seat harness according to the table. When the motor stops running, disconnect battery power immediately. 2. If the motor does not run or fails to run smoothly, remove the driver's seat , go to step 3.

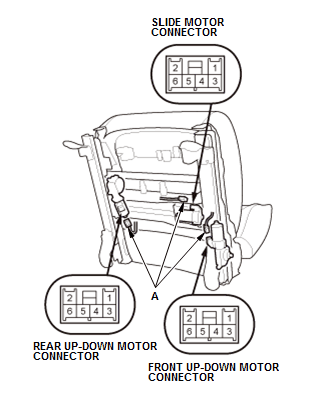

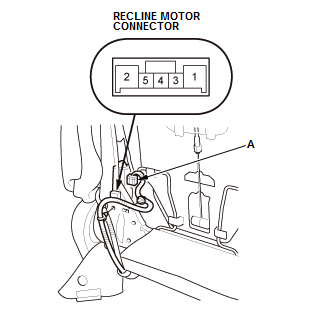

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.	3. Remove the driver's seat-back cover/pad as needed . 4. Disconnect the connectors (A). NOTE: All connectors shown are the terminal side of the male terminals.

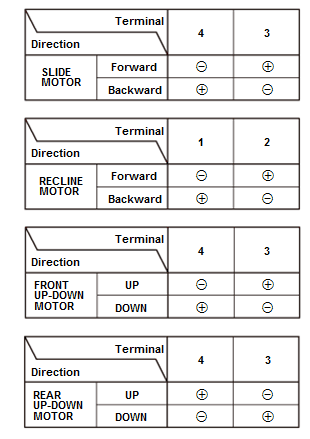

   Courtesy of HONDA, U.S.A., INC.	5. Test each motor in each direction by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately. 6. If the motor does not run or fails to run smoothly, replace: NOTE: All motors are part of the seat frame. Slide motor/seat frame Front up-down motor/seat frame Rear up-down motor/seat frame Recline motor/seat frame If the motor runs smoothly, replace the driver's seat wire harness.

3. All Removed Parts - Install

   Install the parts in the reverse order of removal.

4. Driving Position Memory - Clear

   After testing, clear the driving position memory .
