Power Windows System Description - Control/Function

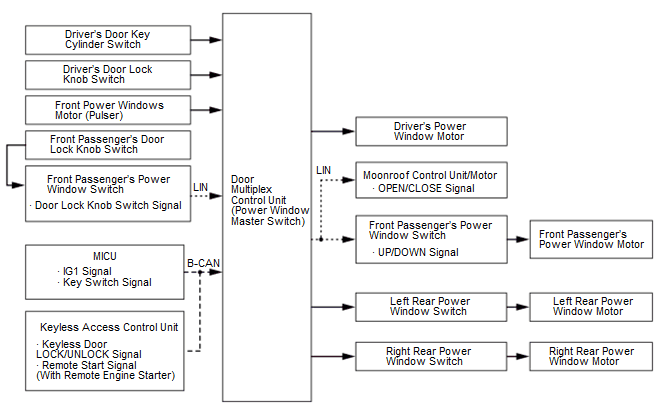

Basic Operation

• Manual Up/Down Function

  The 1-step operation of the power window switch moves the window up or down.

  This is available when the vehicle is in the ON mode or during the vehicle OFF operation.

• Auto Up/Down Function

  The 2-step operation of the power switch moves the window up or down.

  This is available when the vehicle is in the ON mode or during the vehicle OFF operation.

Auto Reverse Power Window Operation

When a object is detected during the AUTO UP operation, the window stops closing and reverses about 70 mm (2.8 in). If the window is less than halfway opened (about 220 mm), it will reverse to half open position (about 220 mm).

In manual operation, this function is active only during the vehicle OFF operation.

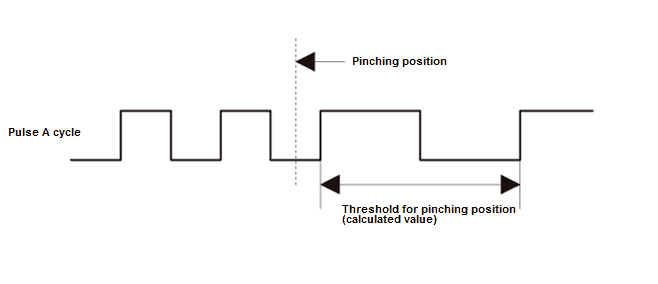

This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

Courtesy of HONDA, U.S.A., INC.

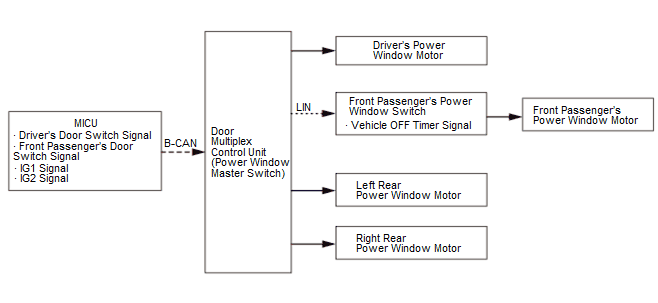

Vehicle OFF Operation Function

During about 10 minutes after the power switch is OFF (LOCK) mode, the window's open/close operation with the power window switches is available.

Courtesy of HONDA, U.S.A., INC.

Keyless/Key Cylinder Operation

With the key inserted in the driver's door key cylinder, turn the key a second time and hold it (clockwise to open, counterclockwise to close). The windows and moonroof stop moving when the key is released.

By pressing and holding the UNLOCK button of the remote a second time, all power windows and the moonroof open.

By pressing and holding the LOCK button of the remote a second time, all power windows and the moonroof close.

All power windows and the moonroof stop moving when the LOCK/UNLOCK button is released.

Courtesy of HONDA, U.S.A., INC.
