Power Windows System Description - Overview

All vehicles are equipped with the power window system. The power window with auto open/close mechanism consists of the power window master switch, power window's switches for each seat, and the window's motor for each seat. For taking safety into account, the anti-pinching function is provided.

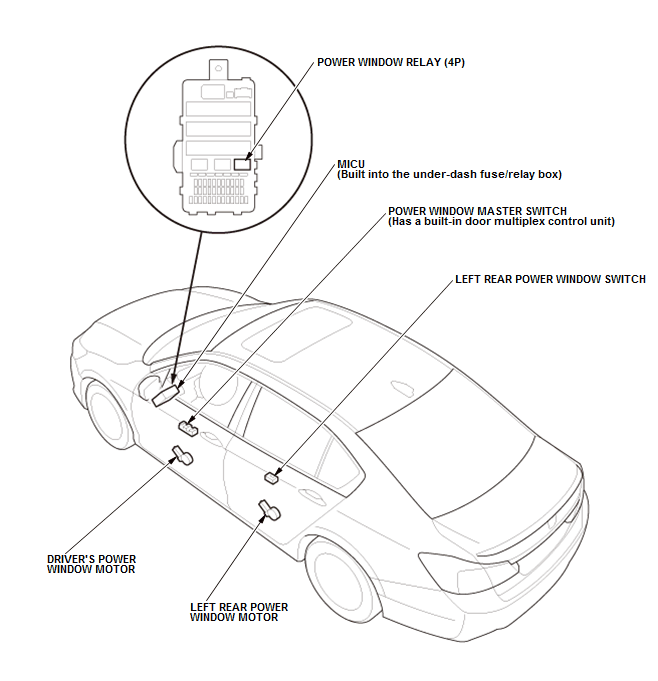

GHH263899Courtesy of HONDA, U.S.A., INC.

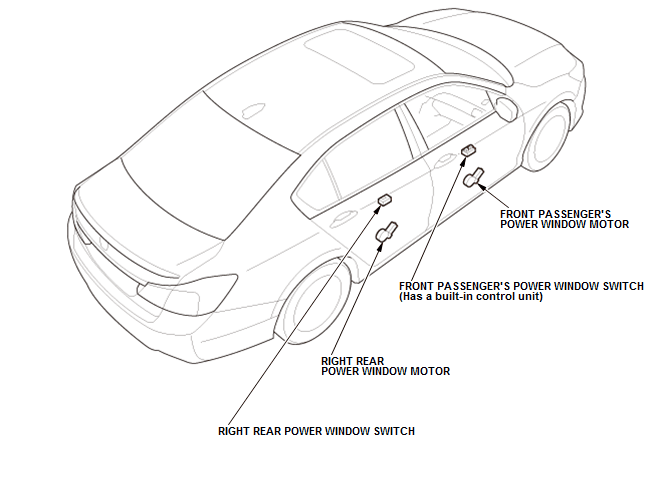

GHH263900Courtesy of HONDA, U.S.A., INC.
