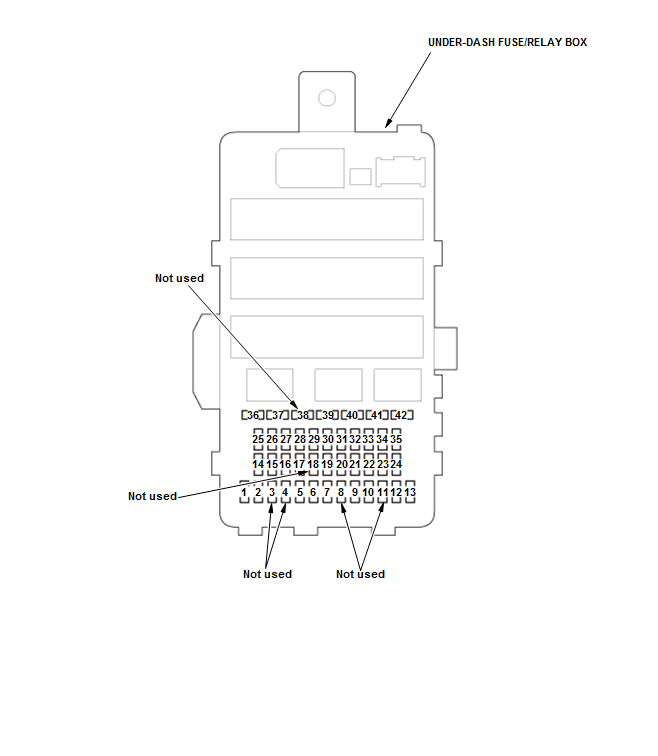

Under-Dash Fuse/Relay Box (B)

Climate control unit,

Driver's seat heater switch *1,

Electric heater coolant pump relay (built into the relay circuit board),

Front passenger's seat heater switch *1,

Left power mirror actuator (via power mirror switch),

Left rear seat heater switch *2,

Door multiplex control unit,

Door multiplex control unit (via power mirror switch),

PTC heater A relay,

PTC heater B relay,

Rear window defogger relay,

Right rear seat heater switch *2

Acoustic vehicle alerting control unit,

Acoustic vehicle alerting system off switch *3,

Audio-navigation unit *4,

Automatic dimming inside mirror *5,

Battery condition monitor module,

CAN gateway,

Gauge control module,

MICU (IG1 METER),

Shift lock solenoid,

Reverse relay circuit (built into the under-dash fuse/relay box),

Audio-navigation unit (via reverse relay circuit) *4,

Audio unit (via reverse relay circuit) *6,

Automatic dimming inside mirror (via reverse relay circuit) *5,

Left back-up light (via reverse relay circuit),

Right back-up light (via reverse relay circuit),

MICU (BACK LT) (via reverse relay circuit)

Front passenger's cutoff indicator,

Front passenger's weight sensor unit

FCW/LDW camera unit *7,

Head up warning unit *16,

LDW camera unit *8,

LDW OFF switch *9,

Millimeter wave radar *8,

Power seat control unit *11

Keyless access control unit,

PCM (IG1 (F/P)),

Fuel tank unit (FUEL PUMP) (via PGM-FI main relay 2)

Electric servo brake control unit,

EPS control unit,

Steering angle sensor,

VSA modulator-control unit

Windshield wiper HIGH/LOW relay circuit (built into the relay circuit board)

DC-DC converter,

MAF sensor,

PCM (BKSWNC) (via brake pedal position switch),

Secondary HO2S (sensor 2)

Power seat control unit *11

Front passenger's seat heater (via front passenger's seat heater relays) *1

Right rear door lock actuator

Right rear door lock actuator

ACC combination switch light *8,

Acoustic vehicle alerting system off switch light *3,

Ambient light,

Audio remote switch light (via cable reel),

Climate control unit,

Cruise control combination switch light *13,

Driver's seat heater switch light *1,

ECON switch light,

EV switch light,

Front passenger's airbag cutoff indicator,

Front passenger's seat heater switch light *1,

Hazard warning switch light,

HFL-navigation voice control switch light (via cable reel and audio remote switch) *4,

HFL switch light (via cable reel and audio remote switch) *14,

HOMELINK unit *15,

LDW OFF switch light *9,

Left rear seat heater switch light *2,

Moonroof switch light *12,

Multi-information display unit,

Multi-information switch light,

Navigation switch panel light *4,

Right rear seat heater switch light *2,

VSA off switch light

Left front side marker light,

Left inner taillight,

Left license plate light,

Left taillight/left rear side marker light,

Right front parking light,

Right front side marker light,

Right inner taillight,

Right license plate light,

Right taillight/right rear side marker light

Windshield washer motor (via windshield washer motor relay circuit)

Electric heater coolant pump (via electric heater coolant pump relay circuit)

Power seat control unit *11

Audio-navigation unit *4,

Console accessory socket relay,

Front accessory power socket relay,

Keyless access control unit,

Multi-information display unit,

Navigation switch panel *4

Power door lock relay (UNLOCK) circuit (built into the under-dash fuse/relay box),

Power door lock relay (DR UNLOCK) circuit (built into the under-dash fuse/relay box),

Trunk lid release actuator relay circuit (built into the under-dash fuse/relay box),

No. B19 and No. B20 fuses (via power door lock relay (UNLOCK) circuit),

No. B21, B22, and No. B41 fuses (via power door lock relay (LOCK) circuit),

No. B23 fuse (via power door lock relay (DR UNLOCK) circuit),

Trunk lid release actuator (via trunk lid release actuator relay circuit)
