Relay Box Locations & Control Unit Locations (2014)

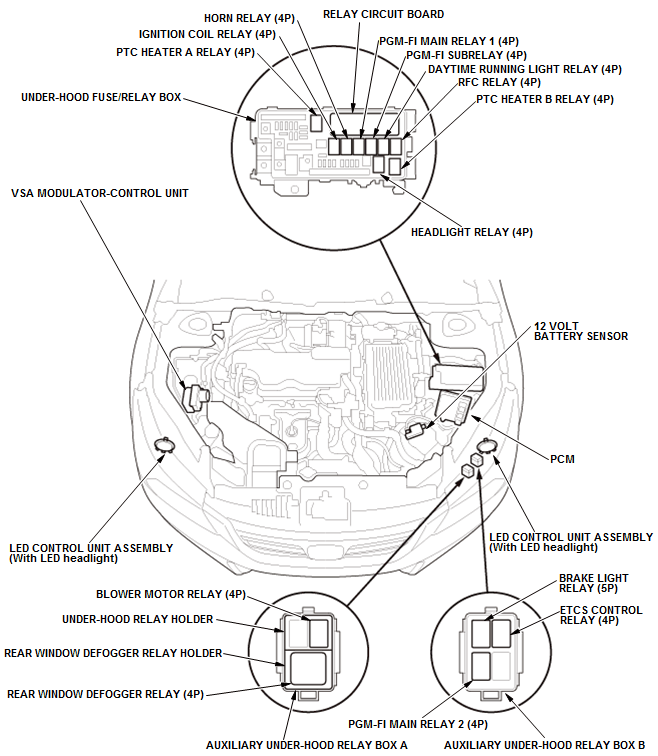

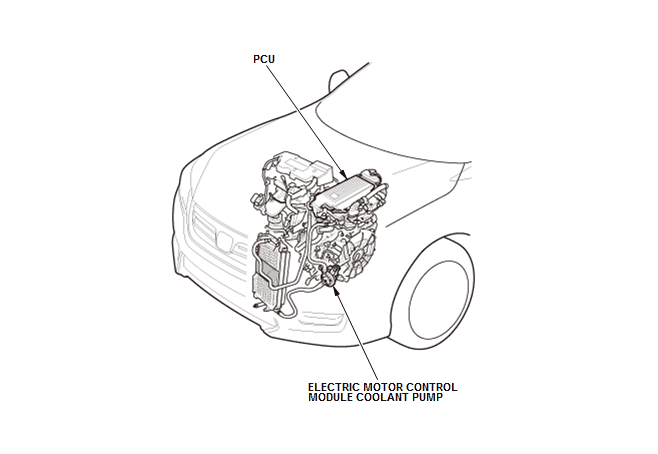

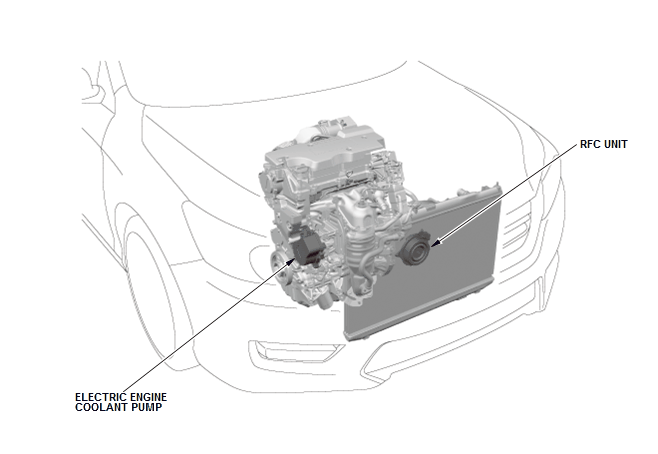

Engine Compartment - 1/3

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 2/3

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 3/3

Courtesy of HONDA, U.S.A., INC.

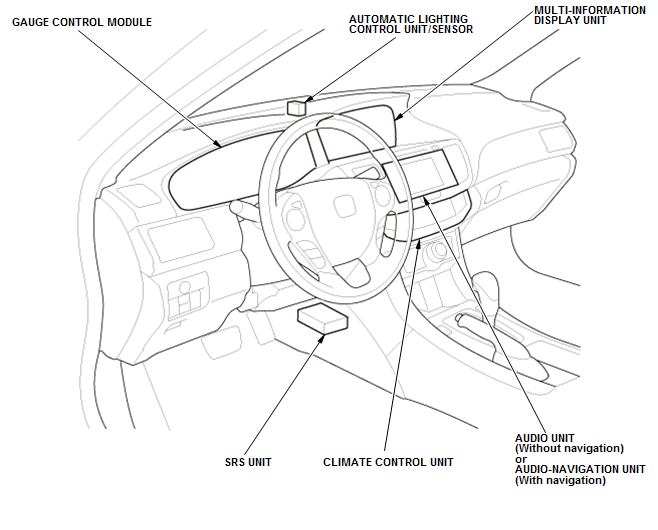

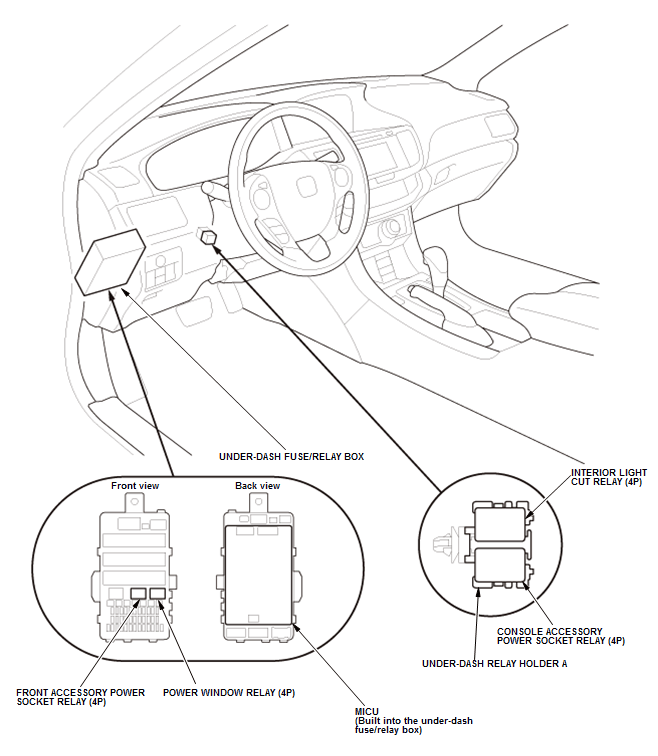

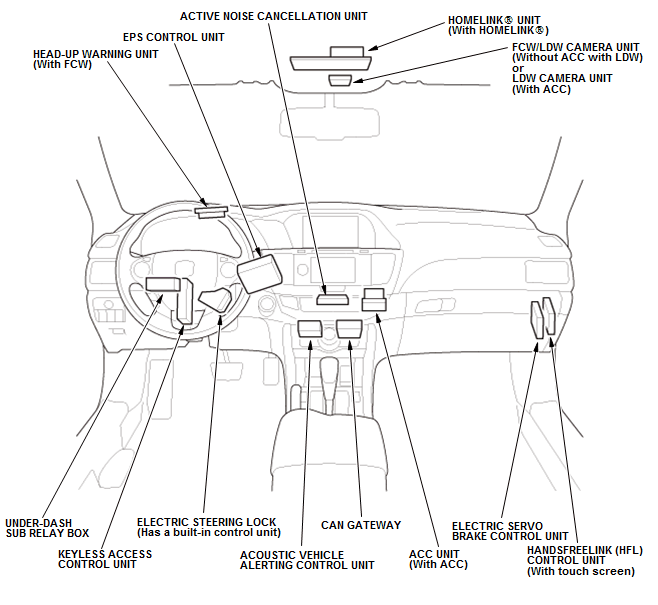

Dashboard - 1/3

Courtesy of HONDA, U.S.A., INC.

Dashboard - 2/3

Courtesy of HONDA, U.S.A., INC.

Dashboard - 3/3

Courtesy of HONDA, U.S.A., INC.

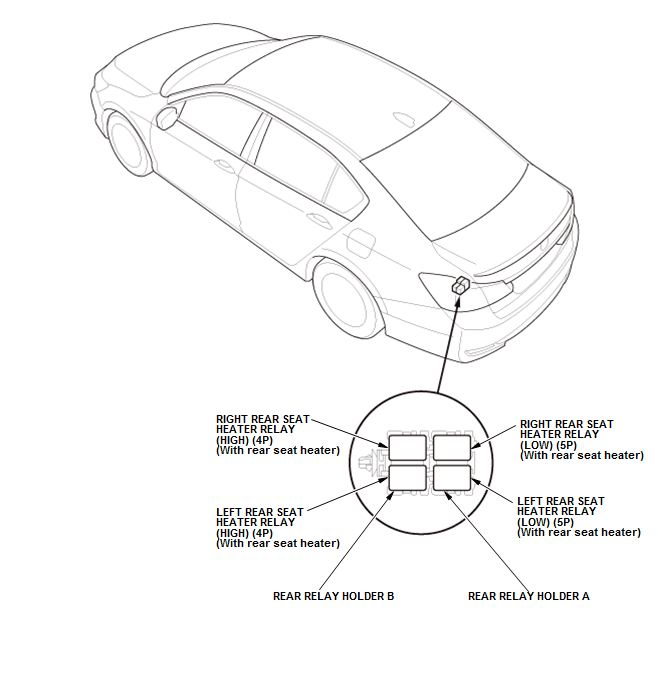

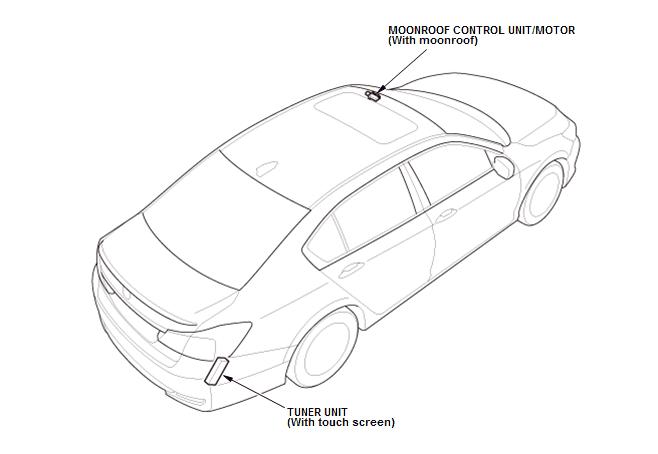

Rear - 1/2

Courtesy of HONDA, U.S.A., INC.

Rear - 2/2

Courtesy of HONDA, U.S.A., INC.

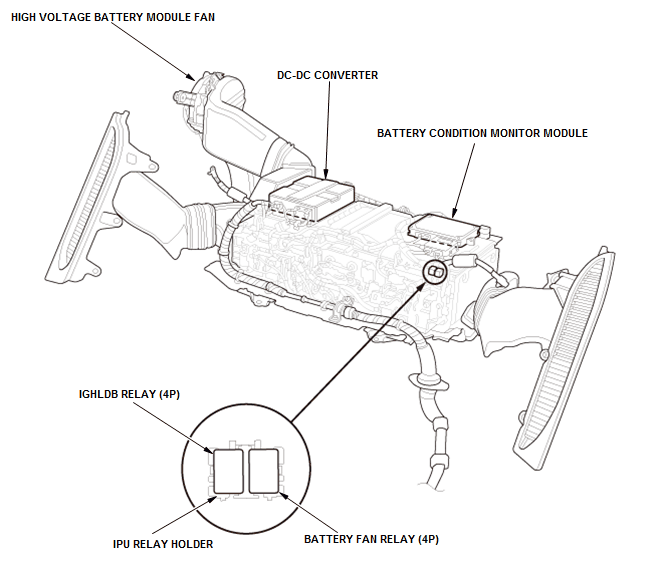

Floor

Courtesy of HONDA, U.S.A., INC.

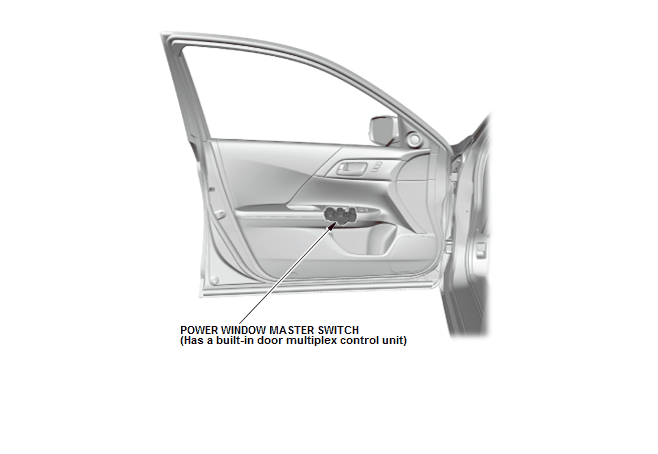

Door - 1/2

Driver's

Courtesy of HONDA, U.S.A., INC.

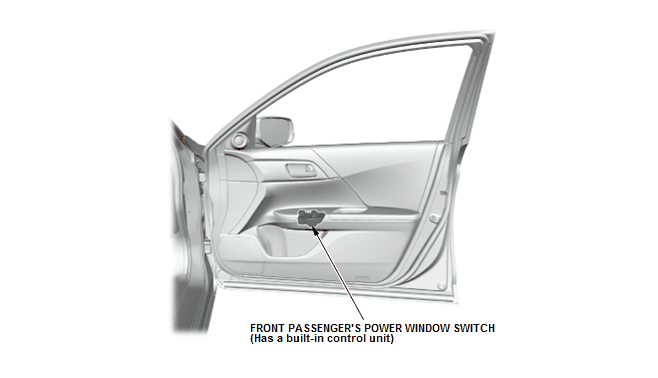

Door - 2/2

Passenger's

Courtesy of HONDA, U.S.A., INC.

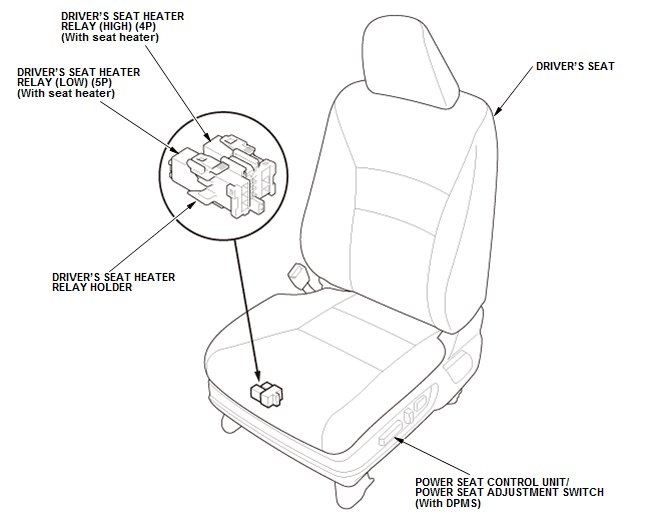

Seat - 1/2

Driver's

Courtesy of HONDA, U.S.A., INC.

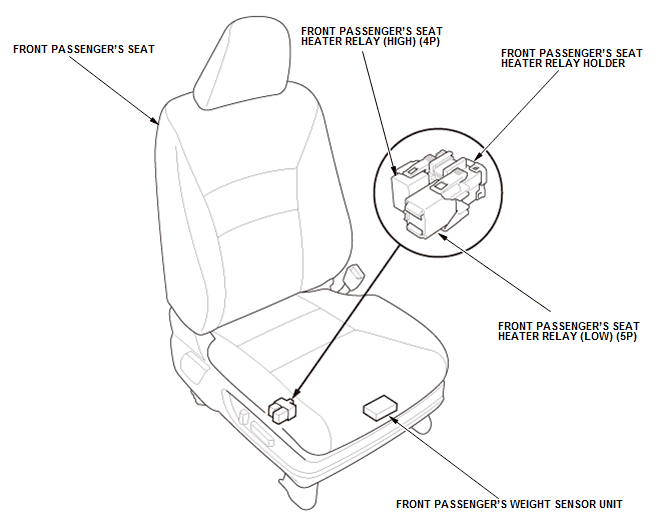

Seat - 2/2

Passenger's

Courtesy of HONDA, U.S.A., INC.
