Power Relay Test: Notes

Special Tools Required

Image Description/Tool Number
GHH253605Courtesy of HONDA, U.S.A., INC.
 Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0

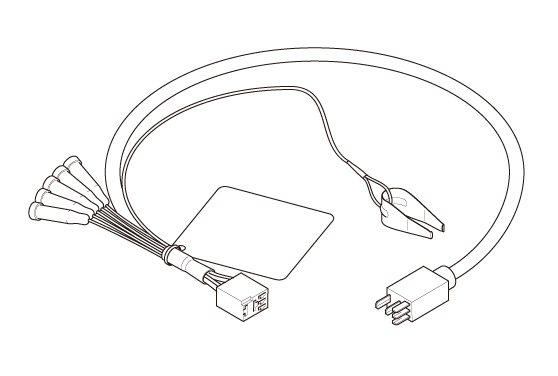

GHH253606Courtesy of HONDA, U.S.A., INC.
 Relay Socket Extension (5 Pin) 07AGK-000A2A0

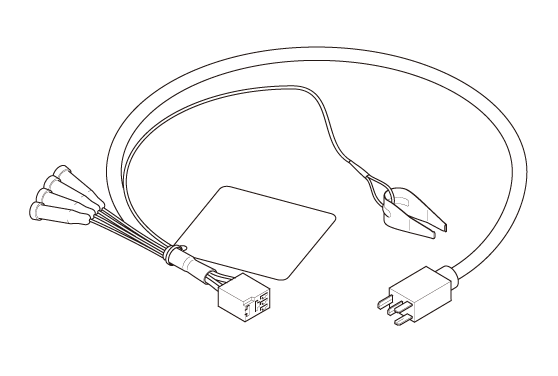

GHH253607Courtesy of HONDA, U.S.A., INC.
 Relay Socket Extension (4 Pin) 07AGK-000A1A0
