Fuel And Emissions Systems Component Location Index

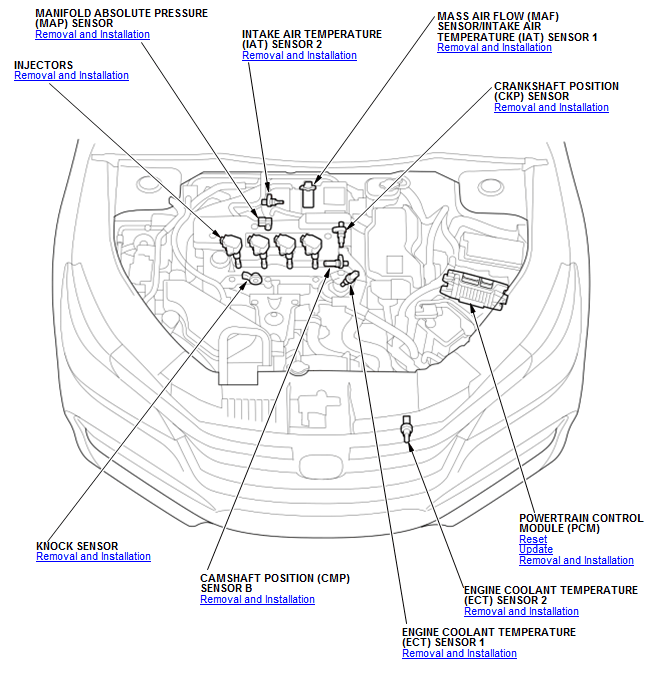

GHH259974Courtesy of HONDA, U.S.A., INC.

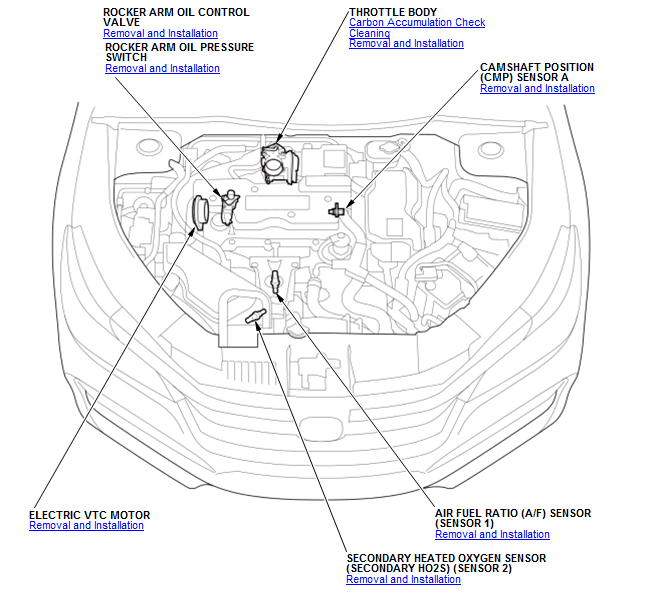

GHH259975Courtesy of HONDA, U.S.A., INC.

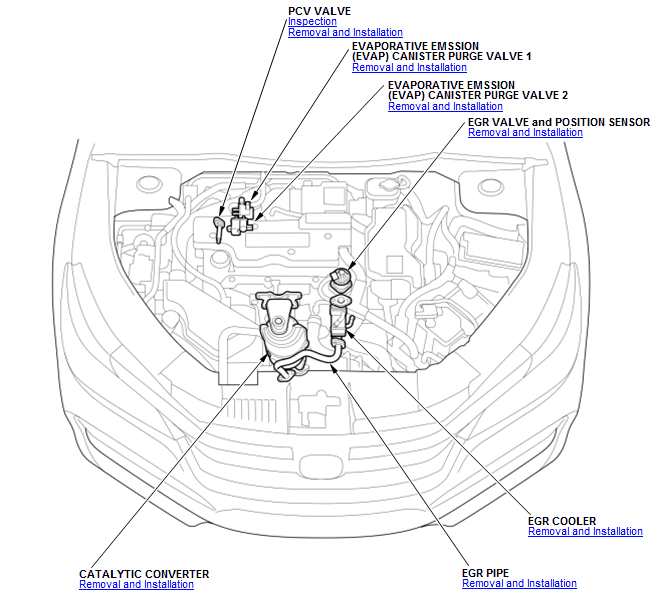

GHH259976Courtesy of HONDA, U.S.A., INC.
GHH259977Courtesy of HONDA, U.S.A., INC.

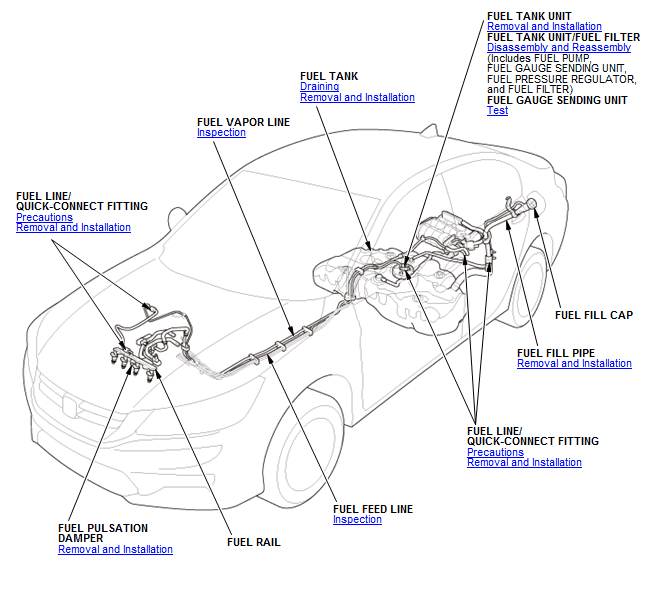

GHH259978Courtesy of HONDA, U.S.A., INC.

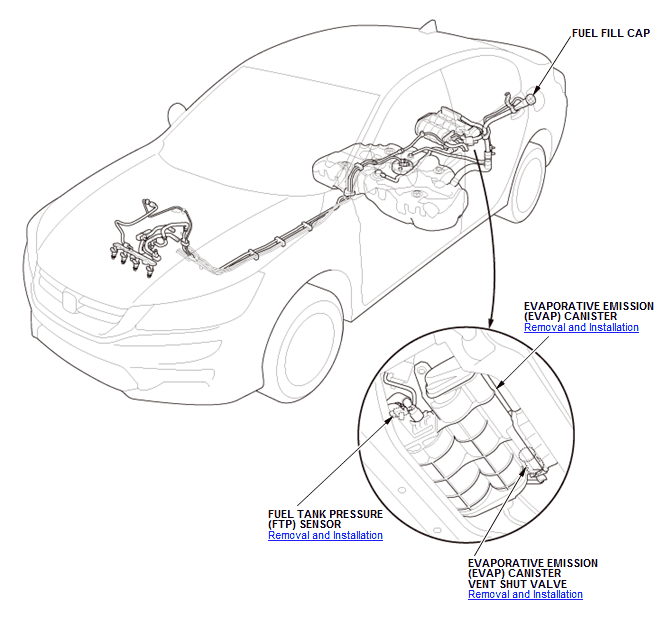

GHH259979Courtesy of HONDA, U.S.A., INC.
