Immobilizer System Overview

WARNING: This page is about a different variant/trim than selected.

An ignition key mechanically prevents strangers from starting a vehicle. An immobilizer system adds a second electronic layer of security to the vehicle. If the ignition key matches mechanically, but the electronic check does not match, the PCM suspends fuel delivery and shuts down the engine after starting the engine.

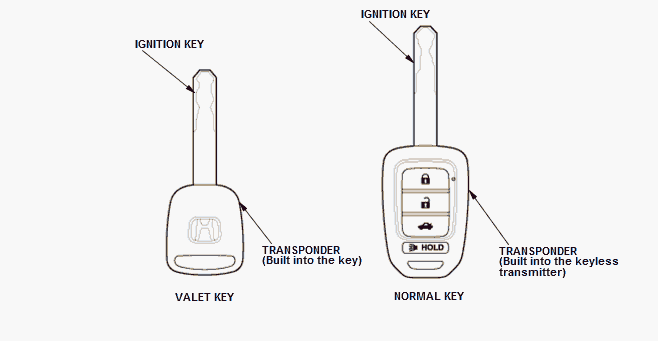

GHH64254Courtesy of HONDA, U.S.A., INC.

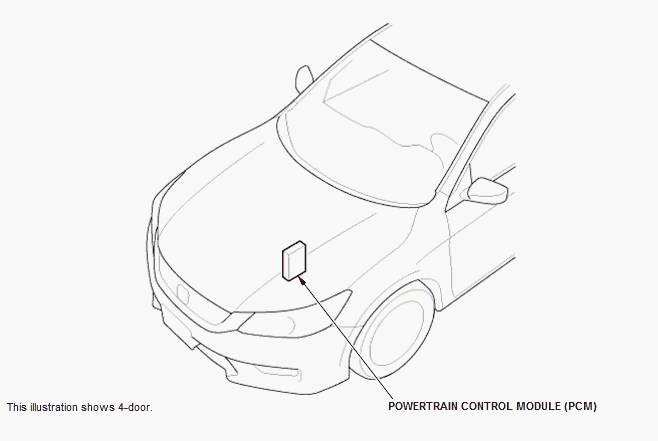

GHH64255Courtesy of HONDA, U.S.A., INC.

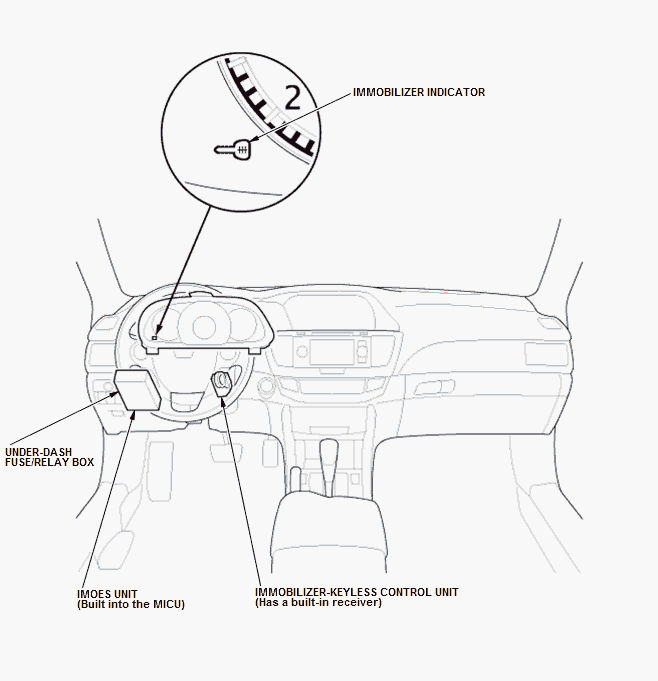

GHH64256Courtesy of HONDA, U.S.A., INC.
