With Information Display
NOTE:
- TPMS cannot be calibrated if a compact spare tire is installed.
- The calibration process requires approximately 30 minutes of cumulative driving at speeds between 30 to 60 mph (48-97 km/h).
- During this period, if the ignition is turned on and the vehicle is not moved within 45 seconds, you may notice the low tire pressure indicator comes on briefly. This is normal and indicates that the calibration process is not yet complete.
- Set the tire pressure of all wheels to specified pressure.

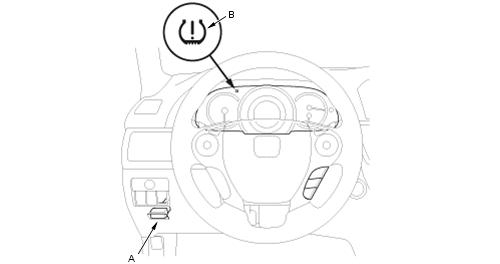

- Press and hold the TPMS Reset button (located at lower dash, left of steering wheel) until the TPMS Indicator Light blinks twice, indicating the calibration process has begun. See Fig 1.
- The calibration process finishes automatically while driving.
NOTE:
If the TPMS Indicator Light does not blink, confirm conditions in the Note above, then press and hold the TPMS Reset button again.
