With Multi-Information Display (MID)

  1. Set the tire pressure of all wheels to specified pressure.
  2. Turn ignition ON.
    NOTE: NOTE: Vehicle must be stopped with the transmission in neutral (M/T), or P or N (A/T, CVT).
  3. Press and hold the INFORMATION button (A) to enter the VEHICLE SETTINGS mode. See Fig 1.
  4. Press the SEL/RESET button (B) until TPMS CALIBRATION appears on the display.
  5. Press the SEL/RESET button. The display switches to the customization setup screen, where you can select CANCEL or CALIBRATE.
  6. Press the UP/DOWN button and select CALIBRATE, then press the SEL/RESET button.
  7. When calibration successfully begins, "Calibration Started" gets displayed on Multi-information display (C).
NOTE: If calibration does not begin successfully, and "Calibration Failed to Start" gets displayed on Multi-Information Display, ensure steps 1 and 2 were correctly followed and repeat steps 3 and 4.

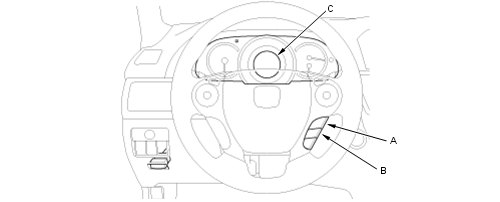

Fig 1: Identifying Multi-Information Display & Controls
G00525206Courtesy of AMERICAN HONDA MOTOR CO., INC.
