Climate Control System Component Location Index (2014 2015)

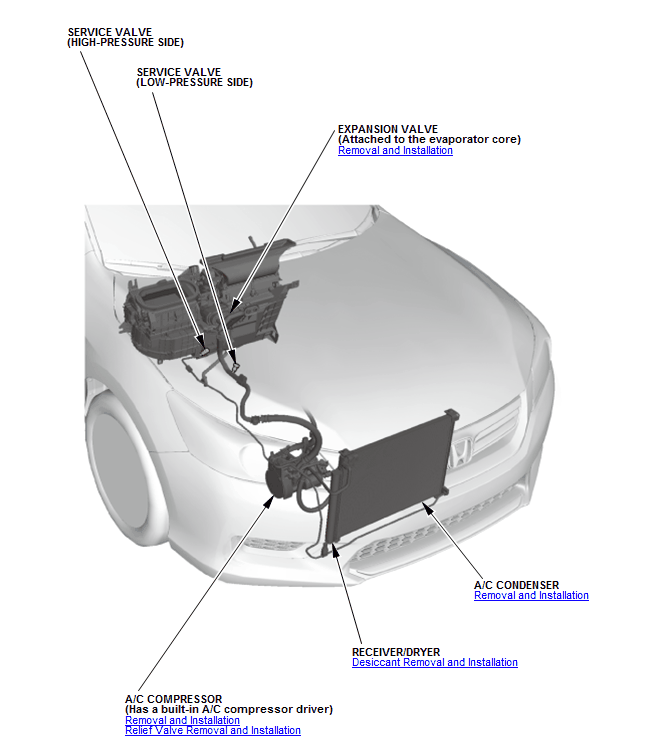

GHH260347Courtesy of HONDA, U.S.A., INC.

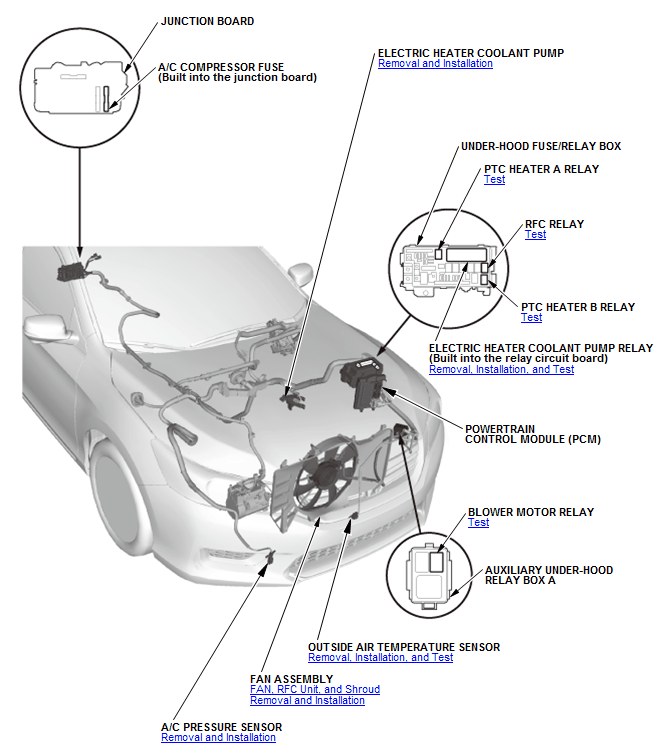

GHH260348Courtesy of HONDA, U.S.A., INC.

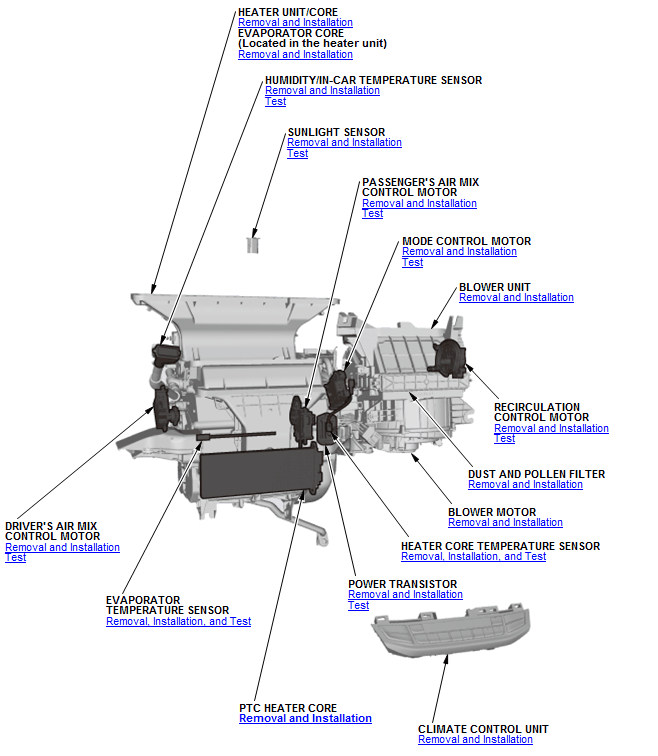

GHH260349Courtesy of HONDA, U.S.A., INC.
