Climate Control System Component Location Index (2017)

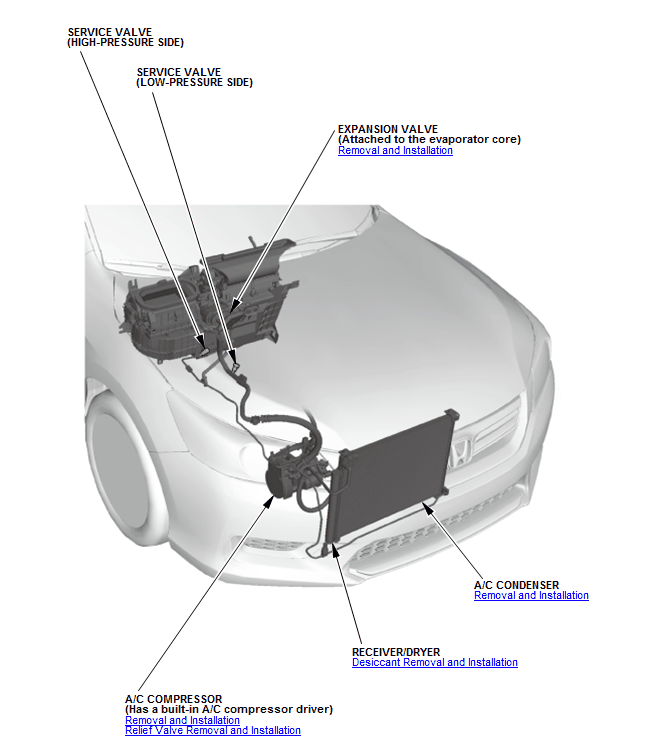

GHH260350Courtesy of HONDA, U.S.A., INC.

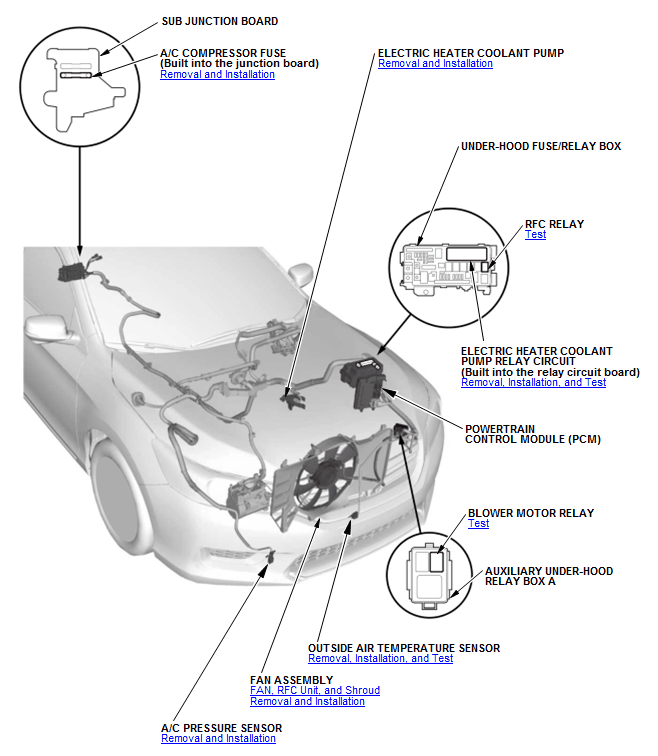

GHH260351Courtesy of HONDA, U.S.A., INC.

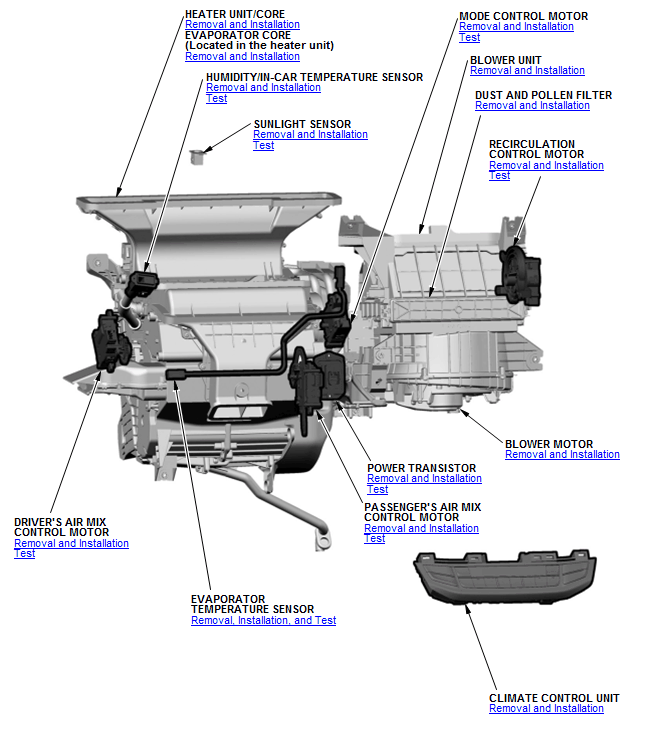

GHH260352Courtesy of HONDA, U.S.A., INC.
