Climate Control System Description - Customize Function
How to Set the Setting Temperature Shift
The climate control unit has a function to revise setting temperature +1.5 °C (+2.7 °F) or -1.5 °C (-2.7 °F) degrees.
The setting temperature is only displayed in degrees centigrade.
- Revision +1.5 °C (+2.7 °F)
-
- Turn the vehicle to the ON mode, then turn the vehicle to the OFF (LOCK) mode after confirming the climate control system is OFF.
- With pressing both of the RECIRCLATION button and the fan speed up button, turn the vehicle to the ON mode and hold it for 10 seconds.
- Revision -1.5 °C (-2.7 °F)
-
- Turn the vehicle to the ON mode, then turn the vehicle to the OFF (LOCK) mode after confirming the climate control system is OFF.
- With pressing both of the RECIRCULATION button and the fan speed down button, turn the vehicle to the ON mode and hold it for 10 seconds.
- Return to the no revision (Revision 0 °C (0 °F))
-
- Turn the vehicle to the ON mode, then turn the vehicle to the OFF (LOCK) mode after confirming the climate control system is OFF.
- With pressing both of the RECIRCULATION button and the ON/OFF button, turn the vehicle to the ON mode and hold it for 10 seconds.

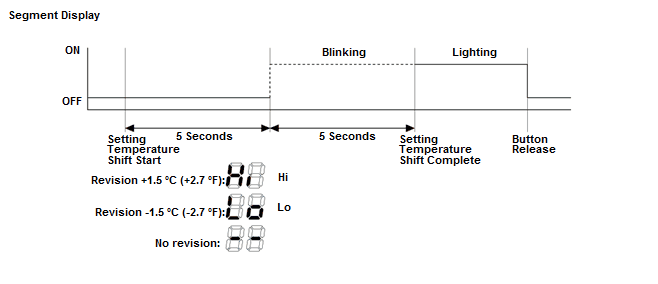

- Indication of the revision
The climate control unit displays the revision during until completion from the start of each revision mode as follows.
-
- Displays nothing from the vehicle ON mode to 5 seconds.
- Blinks revision during 10 seconds from 5 seconds.
- While push the button, the climate control unit continues displaying revision after 10 seconds.
