PCM Reset (Gear Unit Control System): Procedure

HDS DLC - Connect

Courtesy of HONDA, U.S.A., INC.

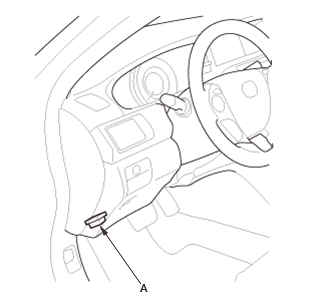

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

2. Turn the vehicle to the ON mode.

3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting - Refer to: DLC Circuit Troubleshooting(PGM-FI System) (2014 2015), or DLC Circuit Troubleshooting(PGM-FI System) (2017)

PCM - Reset

1. Select the A/T system with the HDS.

2. Reset the PCM with the HDS while the engine is stopped.

3. Turn the vehicle to the OFF (LOCK) mode.

4. Turn the vehicle to the ON mode.

5. Wait for 30 seconds.

6. Turn the vehicle to the OFF (LOCK) mode.

7. Disconnect the HDS from the DLC.
