Transmission Range Switch Test: Test

  1. Vehicle - Lift
    1. Raise the vehicle on a lift .
  2. Transmission Range Switch - Test

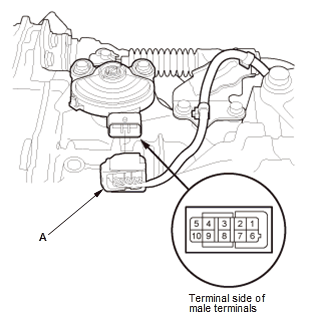

    GHH255248Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Check for continuity between the connector terminals at the transmission range switch side. There should be continuity between the terminals in the following table for each transmission range switch position.

    • If the test results are OK, the transmission range switch test is finished.
    • If there is no continuity between any terminals, check the transmission range switch installation. If the switch installation is OK, replace the transmission range switch .

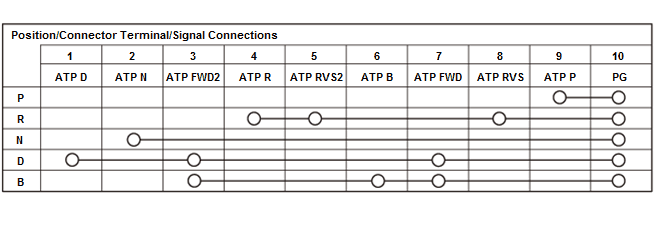

    Transmission Range Switch Connector

    GHH255249Courtesy of HONDA, U.S.A., INC.
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
