Electric Servo Brake Control Unit Connector For Inputs And Outputs (2017)

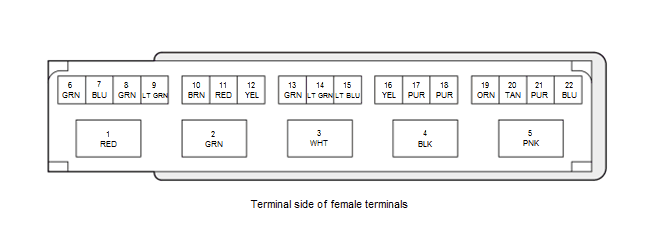

Electric Servo Brake Control Unit Inputs and Outputs for 22P Connector (Connector Disconnected)

GHH256105Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal sign Description
1 MV Drive the motor
2 MU Drive the motor
3 MW Drive the motor
4 GND Ground for the electric servo brake control unit
5 +B ESB Power source for the electric servo brake control unit
6 Not used - - -
7 Not used - - -
8 BPS Detects brake pedal stroke sensor signal
9 ESV SGND Ground for the brake pedal stroke sensor and the tandem motor cylinder
10 FL DOOR SW Detects driver's door switch signal
11 BPSR Detects brake pedal stroke sensor redundant signal
12 ESB SVCC Power source for the brake pedal stroke sensor and the tandem motor cylinder
13 BRK LAMP Drive the brake light relay
14 F-CAN B_L F-CAN communication circuit
15 F-CAN B_H F-CAN communication circuit
16 BRK DIAG Detects brake light relay signal
17 IG1 OPTION Power source for activating the system
18 F-CAN C_L F-CAN communication circuit
19 F-CAN C_H F-CAN communication circuit
20 ESB S1 Detects motor angle sensor signal
21 ESB S2 Detects motor angle sensor signal
22 ESB S3 Detects motor angle sensor signal
