Engine Block Assembly Component Location Index

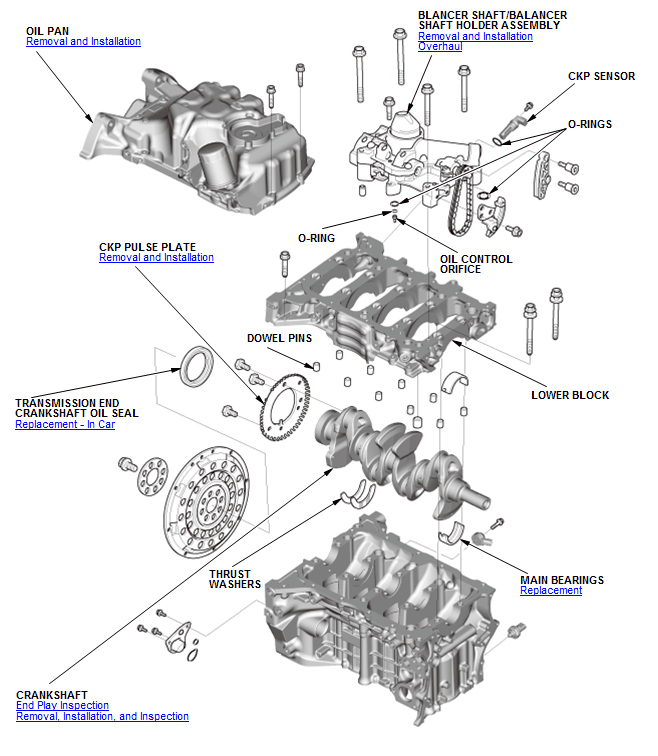

Fig 1: Engine Block Assembly Exploded View
GHH258886Courtesy of HONDA, U.S.A., INC.

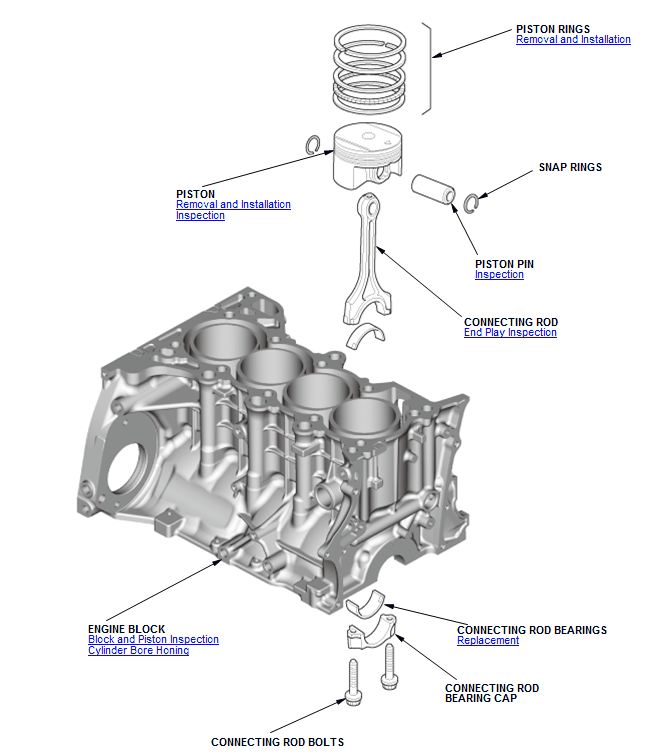

Fig 2: Piston Components Exploded View
GHH258887Courtesy of HONDA, U.S.A., INC.
