 Courtesy of HONDA, U.S.A., INC.
|

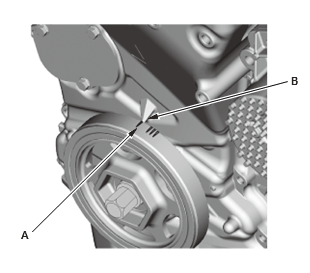

1. Turn the crankshaft to align No. 1 position at top dead center (TDC); the white mark on the crankshaft pulley (A) lines up with the pointer (B). |
 Courtesy of HONDA, U.S.A., INC.
|

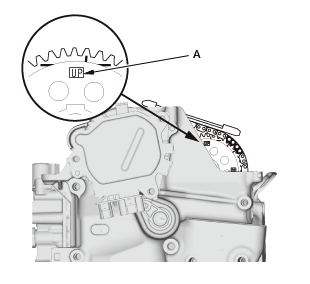

2. Check the No. 1 piston at top dead center (TDC). The "UP" mark (A) on the exhaust camshaft sprocket should be at the top. |
 Courtesy of HONDA, U.S.A., INC.
|
3. Check the maintenance holes (A) on the camshafts and the camshaft holder, the holes should align. If the holes are not aligned, remove the cam chain and reinstall the cam chain properly . |
