DTC P0C2F: GEN-ENG Angular Speed Correlation Malfunction

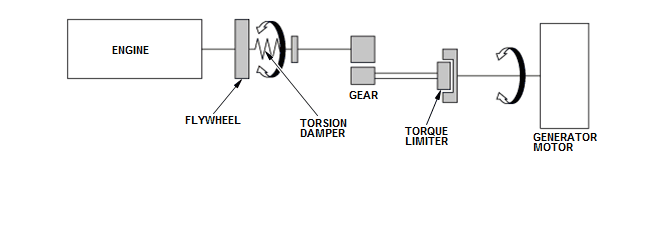

General Description
The powertrain control module (PCM) detects a malfunction and stores a DTC if the pulse value of the generator motor differs from the crank pulse value by either a set value or less, or a set vale or more.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Once per driving cycle |
| Sequence | None |
| Duration | At least 4.8 seconds but not more than 24 seconds |
| DTC Type | Two drive cycles, MIL on |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [ENGINE SPEED] | 500 rpm | 2, 500 rpm |
[ ]: HDS Parameter

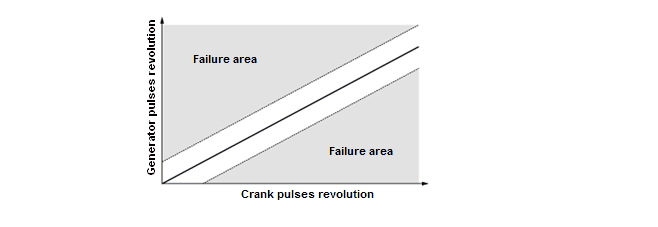

Malfunction Threshold
When the generator motor pulse count is different from the crank pulse count by 104* 1 (127)* 2 or less or by 146* 1 (154)* 2 or more.
*1: '14-15
*2: '17
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- PCM MOTPLS* 1 (NGENPLS)* 2 line failure
- PCM MOTPLS* 1 (NGENPLS)* 2 line electrical noise overlapped
- CKP sensor CRNK* 1 (CRKP)* 2 line failure
- CKP sensor CRNK* 1 (CRKP)* 2 line electrical noise overlapped
Confirmation Procedure
Operating Condition
- 1.
Enter the maintenance mode, then start the engine.
- 2.
Engine speed [ENGINE SPEED] between 500 - 2, 500 rpm for at least 24 seconds.
- When freeze data is stored, try the engine revolution neighborhood.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
