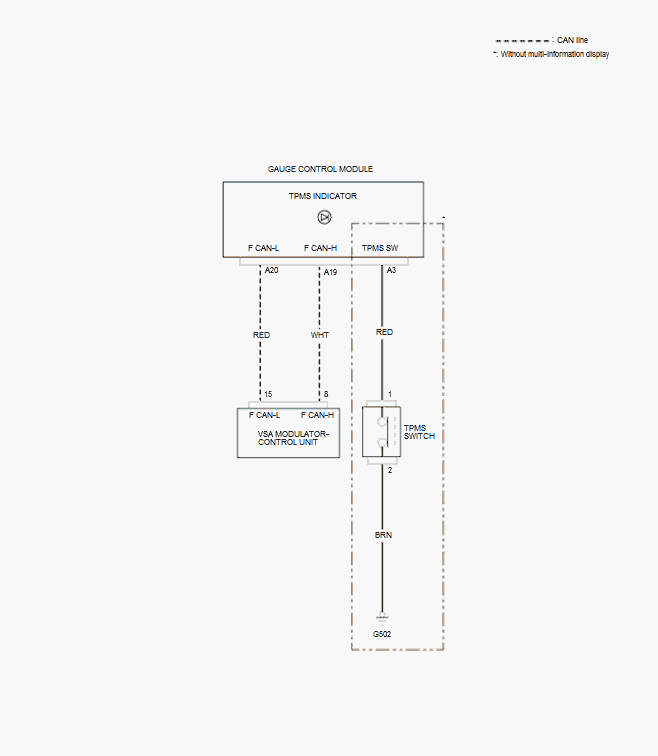

TPMS Circuit Diagram (2013-15)

WARNING: This page is about a different variant/trim than selected.
GHH66079Courtesy of HONDA, U.S.A., INC.
