TPMS Calibration: Procedure

NOTE:

• Make sure the tire pressure is properly adjusted to the specified tire pressure listed on the doorjamb label before doing the TPMS calibration
• The calibration begins when TPMS switch is pressed or the calibration is selected through the Multi-information display. The calibration is completed after driving in an ideal driving condition (31 to 62 mph (50 to 100 km/h), driving steadily without much acceleration or deceleration) for about 18 minutes. Full functionality of the system cannot be performed properly if the calibration is not completed.
• Do the TPMS calibration after doing the following items.
  • Adjust the tire pressure.
  • Rotating the tires.
  • Replacing the tire (s).
  • Update the VSA modulator-control unit.
  • Replace the VSA modulator-control unit.
• Calibration check method.

  Check if calibration is completed by doing the following items.

  1. Stop the vehicle and shift into neutral (M/T) or P or N (A/T, CVT) position.

  2. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
  3. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode and wait to see the low pressure indicator come on for 2 seconds and then off.
  4. Do not drive the vehicle and wait for 45 seconds as is.
  5. If the calibration is completed, the indicator does not come on. If the calibration is not yet completed, then the indicator come on for 2 seconds and off.

The calibration check process gets interrupted if the vehicle moves. Do the troubleshooting if the indicator does not go off after 2 seconds, keeps blinking or stays on when the ignition switch is turned ON (II), or the engine start/stop button to select the ON mode.

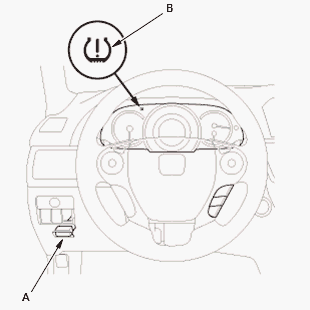

1. TPMS - Calibration (Without ACC)

   Courtesy of HONDA, U.S.A., INC.

   1. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb label. 2. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode. NOTE:  Vehicle must be stopped with the transmission in neutral (M/T) or P or N (A/T, CVT). 3. Press the TPMS switch (A) for 3 seconds. 4. When the calibration successfully begins, the indicator (B) blinks twice.check the TPMS switch .

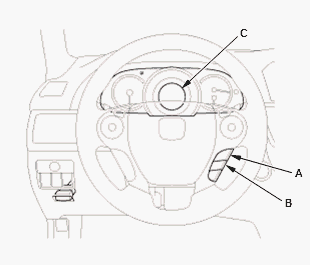

2. TPMS - Calibration (With ACC)

   Courtesy of HONDA, U.S.A., INC.

   1. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb label. 2. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode. NOTE:  Vehicle must be stopped with the transmission in neutral (M/T) or P or N (A/T, CVT). 3. Press and hold the INFORMATION button (A) to enter the VEHICLE SETTINGS mode. 4. Press the SEL/RESET button (B) to select TPMS CALIBRATION. 5. When the calibration successfully begins, "Calibration Started" gets displayed on Multi-information display (C) when the system received the calibration.do the troubleshooting the TPMS symptom troubleshooting .
