Power Window Master Switch Removal and Installation: Removal

  1. Front Door Power Window Switch Panel
    1. Carefully pry out on the notch (A) in the power window switch panel (B) with the appropriate trim tool to detach the clips (C) and the hooks (D). Disconnect the connectors (E), then remove the power window switch panel.

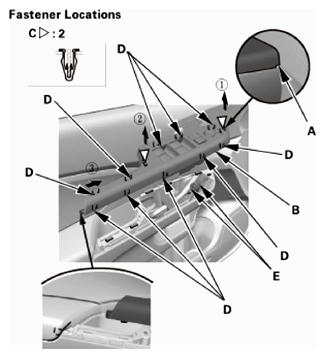

      Fig 1: Removing Power Window Switch Panel
      G08881566Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Front Door Power Window Switch - Driver's Side
    1. Remove the power window master switch (A).

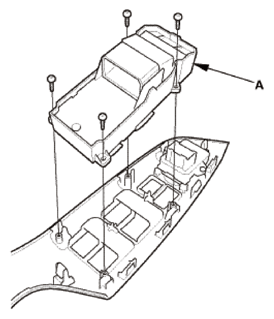

      Fig 2: Identifying Power Window Master Switch And Mounting Bolts
      G08881567Courtesy of AMERICAN HONDA MOTOR CO., INC.
