Resetting the Power Window Control Unit: Procedure

Resetting the power window is required when any of the following have occurred:

• Power window regulator replacement or repair
• Power window motor replacement or repair
• Glass run channel replacement
• Driver's door glass replacement
• Power window master switch replacement

1. Turn the ignition switch to ON (II).
2. Move the driver's window all the way down with the driver's window DOWN switch.
3. Open the driver's door.
   NOTE: Steps 4- 7 must be done within 5 seconds of each other.

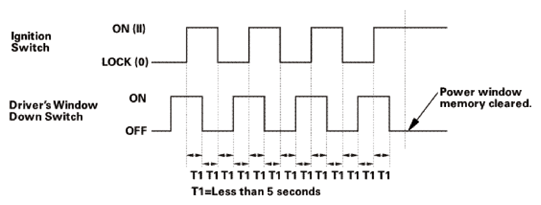

   Fig 1: Ignition Switch And Driver's Window Down Switch Blinking Pattern

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Turn the ignition switch to LOCK (0).
5. Push and hold the driver's window DOWN switch.
6. Turn the ignition switch to ON (II).
7. Release the driver's window DOWN switch.
8. Repeat steps  4- 7 three more times.
9. Confirm that AUTO UP and AUTO DOWN do not work. If AUTO UP and DOWN work, go back to step  1.
10. Pull up and hold the driver's window UP switch until the window reaches the fully closed position, then continue to hold the switch for at least 1 second.
11. Confirm that the power window control unit is reset by using the driver's window AUTO UP and AUTO DOWN functions:
    • If the window still does not work in AUTO, repeat the procedure several times, paying close attention to the 5 second time limit between steps.
    • If the window still does not work, refer to the MASTER SWITCH INPUT TEST .
