Relay Control Module Removal, Installation, and Test: Installation

  1. Relay Control Module
    1. Connect the relay control module connectors.
    2. Install the relay control module (A) to the under-hood fuse/relay box.
    3. Install the cover (B).

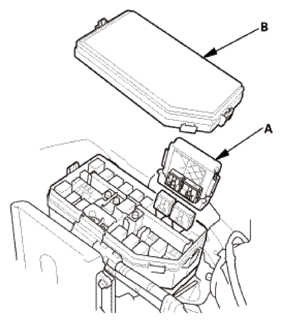

      Fig 1: Identifying Relay Control Module And Cover
      G08890189Courtesy of AMERICAN HONDA MOTOR CO., INC.
