Exploded View
Oil Pump Exploded View
Exploded View

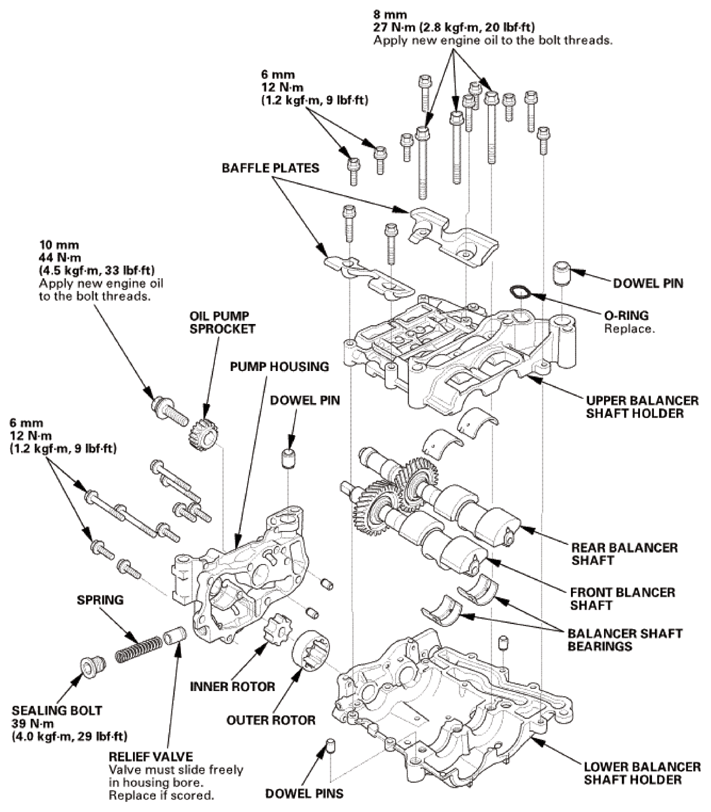

Fig 1: Exploded View Of Oil Pump With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
