Shift Lock System Circuit Troubleshooting

NOTE: Check for PGM-FI DTCs and A/T DTCs. If any DTCs are present, troubleshoot those first.
DTC DESCRIPTION - PGM-FI SYSTEM

DTC Description Confirmed DTC Pending DTC Freeze Frame

DTC DESCRIPTION - A/T SYSTEM

DTC Description Confirmed DTC Pending DTC Freeze Frame

  1. Shift lock solenoid operation check:
    • 1. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.
      Fig 1: Identifying DLC Located Under Driver's Side Of Dashboard
      G08868054Courtesy of AMERICAN HONDA MOTOR CO., INC.
    • 2. Turn the ignition switch to ON (II).
    • 3. Make sure the HDS communicates with the PCM. If it does not, GO TO THE DLC CIRCUIT TROUBLESHOOTING .
    • 4. Select Shift Lock Solenoid Test in the Miscellaneous Test Menu, and check that the shift lock solenoid operates with the HDS.

    Does the shift lock solenoid work properly?

    YES  : The shift lock solenoid is OK. Go to step  9.

    NO  : Go to step 2.

  2. Fuse check:
    • 1. Check the following fuse.

      Fuse No. B5 (10 A)

      Location Under-dash fuse/relay box

    Is the fuse OK?

    YES  : The fuse is OK. Go to step 3.

    NO  : Replace the No. B5 (10 A) fuse, and recheck. If the fuse blows again, repair a short to ground in the No. B5 (10 A) fuse circuit.

  3. Open wire check (IG1 METER line):
    • 1. Turn the ignition switch to LOCK (0).
    • 2. Remove the center console  See CENTER CONSOLE DISASSEMBLY AND REASSEMBLY or CENTER CONSOLE REMOVAL AND INSTALLATION .
    • 3. Disconnect the following connector.

      Shift lever 12P connector

    • 4. Turn the ignition switch to ON (II).
    • 5. Measure the voltage between test points 1 and 2.

      Test condition IG ON (II)

      Shift lever 12P connector: disconnected

      Test circuit IG1 METER

      Test point 1 Shift lever 12P connector No. 12 (LT GRN)

      Test point 2 Body ground

      Fig 2: Measuring Voltage Between Shift Lever 12P Connector No. 12 (LT GRN) And Body Ground
      G08868055Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  : The IG1 METER wire is OK. Go to step 4.

    NO  : Repair an open in the IG1 METER wire between the shift lever 12P connector and the under-dash fuse/relay box.

  4. Determine possible failure area (open in SHIFT LOCK SOL line, others):
    • 1. With the shift lever in P, press the brake pedal.
      NOTE: Do not press the accelerator pedal.
    • 2. Measure the voltage between test points 1 and 2.

      Test condition IG ON (II)

      Shift lever 12P connector: disconnected

      Test circuit SHIFT LOCK SOL, IG1 METER

      Test point 1 Shift lever 12P connector No. 11 (WHT)

      Test point 2 Shift lever 12P connector No. 12 (LT GRN)

      Fig 3: Measuring Voltage Between Shift Lever 12P Connector No. 11 (WHT) And Shift Lever 12P Connector No. 12 (LT GRN)
      G08868056Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  : Go to step 5.

    NO  : Go to step  8.

  5. Shorted wire check (SHIFT LOCK SOL line):
    • 1. Release the brake pedal.
      NOTE: The shift lever must be in P.
    • 2. Measure the voltage between test points 1 and 2.

      Test condition IG ON (II)

      Shift lever 12P connector: disconnected

      Test circuit SHIFT LOCK SOL, IG1 METER

      Test point 1 Shift lever 12P connector No. 11 (WHT)

      Test point 2 Shift lever 12P connector No. 12 (LT GRN)

      Fig 4: Measuring Voltage Between Shift Lever 12P Connector No. 11 (WHT) And Shift Lever 12P Connector No. 12 (LT GRN)
      G08868057Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  : Repair a short to ground in the SHIFT LOCK SOL wire between the shift lock solenoid and the PCM.

    NO  : The SHIFT LOCK SOL wire is OK. Go to step 6.

  6. Shorted wire check (UNIT(-) line to IG1(+) line):
    • 1. Turn the ignition switch to LOCK (0).
    • 2. REMOVE THE SHIFT LEVER ASSEMBLY .
    • 3. DISCONNECT THE SHIFT LOCK SOLENOID 2P CONNECTOR .
    • 4. Check for continuity between test points 1 and 2.

      Test condition IG LOCK (0)

      Shift lever 12P connector: disconnected

      Shift lock solenoid 2P connector: disconnected

      Test circuit UNIT(-), IG1(+)

      Test point 1 Shift lever 12P connector No. 11 (BLK)

      Test point 2 Shift lever 12P connector No. 12 (RED)

      Fig 5: Checking For Continuity Between Shift Lever 12P Connector No. 11 (BLK) And Shift Lever 12P Connector No. 12 (RED)
      G08868058Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  : Repair a short in the UNIT(-) wire to the IG1(+) wire between the shift lock solenoid 2P connector and the shift lever 12P connector.

    NO  : The UNIT(-) and IG1(+) wires are not shorted. Go to step 7.

  7. Open wire check (UNIT(-) line, IG1(+) line):
    • 1. Check for continuity between test points 1 and 2.

      Test condition IG LOCK (0)

      Shift lever 12P connector: disconnected

      Shift lock solenoid 2P connector: disconnected

      Test circuit UNIT(-)

      Test point 1 Shift lock solenoid 2P connector No. 1 (BLK)

      Test point 2 Shift lever 12P connector No. 11 (BLK)

      Test circuit IG1(+)

      Test point 1 Shift lock solenoid 2P connector No. 2 (RED)

      Test point 2 Shift lever 12P connector No. 12 (RED)

      Fig 6: Checking For Continuity Between Shift Lock Solenoid 2P Connector No. 1 (BLK) And Shift Lever 12P Connector No. 11 (BLK)
      G08868059Courtesy of AMERICAN HONDA MOTOR CO., INC.
      Fig 7: Checking For Continuity Between Shift Lock Solenoid 2P Connector No. 2 (RED) And Shift Lever 12P Connector No. 12 (RED)
      G08868060Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  : The UNIT(-) and IG1(+) wires are OK. Check the shift lock mechanism. If the mechanism is OK, REPLACE THE SHIFT LOCK SOLENOID .

    NO Repair an open in the UNIT(-) and/or IG1(+) wire between the shift lock solenoid 2P connector  : and the shift lever 12P connector.

  8. Open wire check (SHIFT LOCK SOL line):
    • 1. Turn the ignition switch to LOCK (0).
    • 2. Jump the SCS line with the HDS.
    • 3. Disconnect the following connector.

      PCM connector A (49P)

    • 4. Check for continuity between test points 1 and 2.

      Test condition IG LOCK (0)

      Shift lever 12P connector: disconnected

      PCM connector A (49P): disconnected

      Test circuit SHIFT LOCK SOL

      Test point 1 Shift lever 12P connector No. 11 (WHT)

      Test point 2 PCM connector A (49P) No. 21 (WHT)

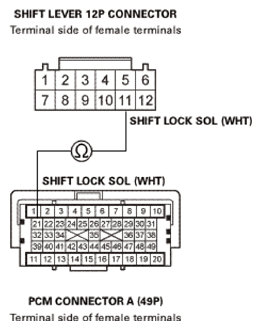

      Fig 8: Checking For Continuity Between Shift Lever 12P Connector No. 11 (WHT) And PCM Connector A (49P) No. 21 (WHT)
      G08868061Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  : The SHIFT LOCK SOL wire is OK. Update the PCM if it does not have the latest software  See PCM REMOVAL AND INSTALLATION or PCM UPDATE , or substitute a known-good PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE , and recheck. If the symptom goes away with a known-good PCM, replace the original PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE .

    NO  : Repair an open in the SHIFT LOCK SOL wire between the shift lever 12P connector and the PCM.

  9. Brake pedal position switch operation check:
    • 1. Check the parameter(s) below with the HDS while pressing the brake pedal.
      Signal Threshold Current conditions
      Values Unit Values Unit
      Brake Switch ON     unit

    Do the current condition(s) match the threshold?

    YES  : The brake pedal position switch is OK. Go to step  11.

    NO  : If the brake lights come on, go to step 10. If the brake lights do not work, repair faulty brake light circuit.

  10. Open wire check (STOP SW line):
    • 1. Turn the ignition switch to LOCK (0).
    • 2. Jump the SCS line with the HDS.
    • 3. Disconnect the following connector.

      PCM connector A (49P)

    • 4. Measure the voltage between test points 1 and 2.

      Test condition IG LOCK (0)

      PCM connector A (49P): disconnected

      Test circuit STOP SW

      Test point 1 PCM connector A (49P) No. 13 (BLU)

      Test point 2 Body ground

      Fig 9: Measuring Voltage Between PCM Connector A (49P) No. 13 (BLU) And Body Ground
      G08868062Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage while pressing the brake pedal and about 0 V when the pedal is released?

    YES  : The STOP SW wire is OK. Update the PCM if it does not have the latest software  See PCM REMOVAL AND INSTALLATION or PCM UPDATE , or substitute a known-good PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE , and recheck. If the symptom goes away with a known-good PCM, replace the original PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE .

    NO  : Repair an open in the STOP SW wire between the PCM and the brake pedal position switch.

  11. Transmission range switch operation check:
    • 1. Check the parameter(s) below with the HDS with the shift lever in P.
      Signal Threshold Current conditions
      Values Unit Values Unit
      A/T P Switch ON

    Do the current condition(s) match the threshold?

    YES  : The transmission range switch is OK. Go to step  14.

    NO  : Go to step 12.

  12. A/T P Switch signal check:
    • 1. Turn the ignition switch to LOCK (0).
    • 2. Disconnect the following connector.

      Transmission range switch 10P connector

    • 3. Connect terminals A and B with a jumper wire.

      Terminal A Transmission range switch 10P connector No. 10 (BLK/BLU)

      Terminal B Body ground

      Fig 10: Connecting Terminal Transmission Range Switch 10P Connector No. 10 (BLK/BLU) And Body Ground With Jumper Wire
      G08868063Courtesy of AMERICAN HONDA MOTOR CO., INC.
    • 4. Turn the ignition switch to ON (II).
    • 5. Check the parameter(s) below with the HDS.
      Signal Threshold Current conditions
      Values Unit Values Unit
      A/T P Switch ON

    Do the current condition(s) match the threshold?

    YES  : The A/T P Switch signal is OK. REPLACE THE TRANSMISSION RANGE SWITCH .

    NO  : Go to step 13.

  13. Open wire check (ATP P/ATP-P line):
    • 1. Turn the ignition switch to LOCK (0).
    • 2. Jump the SCS line with the HDS.
    • 3. Disconnect the following connector.

      PCM connector B (49P)

    • 4. Check for continuity between test points 1 and 2.

      Test condition IG LOCK (0)

      Transmission range switch 10P connector: disconnected PCM connector B (49P): disconnected

      Test circuit ATP P/ATP-P

      Test point 1 Transmission range switch 10P connector No. 10 (BLK/BLU)

      Test point 2 PCM connector B (49P) No. 24 (PUR)

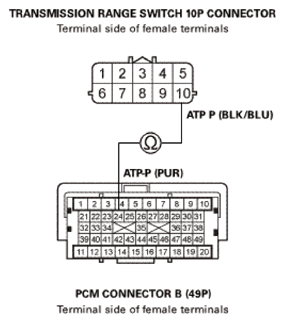

      Fig 11: Checking Continuity Between Transmission Range Switch 10P Connector No. 10 (BLK/BLU) And PCM Connector B (49P) No. 24 (PUR)
      G08868064Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  : The ATP P/ATP-P wire is OK. Update the PCM if it does not have the latest software  See PCM REMOVAL AND INSTALLATION or PCM UPDATE , or substitute a known-good PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE , and recheck. If the symptom goes away with a known-good PCM, replace the original PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE .

    NO  : Repair an open in the ATP P/ATP-P wire between the transmission range switch and the PCM.

  14. APP Sensor A signal check:
    • 1. Check the parameter(s) below with the HDS.
      NOTE: Do not press the accelerator pedal.
      Signal Threshold Current conditions
      Values Unit Values Unit
      APP Sensor More than 5 %
      APP Sensor A Higher than 1.16 V

    Do the current condition(s) match the threshold?

    YES  : CHECK THE APP SENSOR .

    NO  : The APP Sensor A signal is OK. Update the PCM if it does not have the latest software  See PCM REMOVAL AND INSTALLATION or PCM UPDATE , or substitute a known-good PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE , and recheck. If the symptom goes away with a known-good PCM, replace the original PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE .
