A/T Interlock System Component Location Index

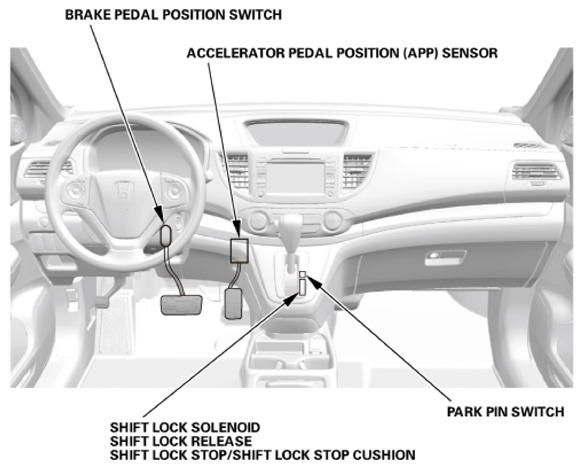

Fig 1: Identifying A/T Interlock System Component Location (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

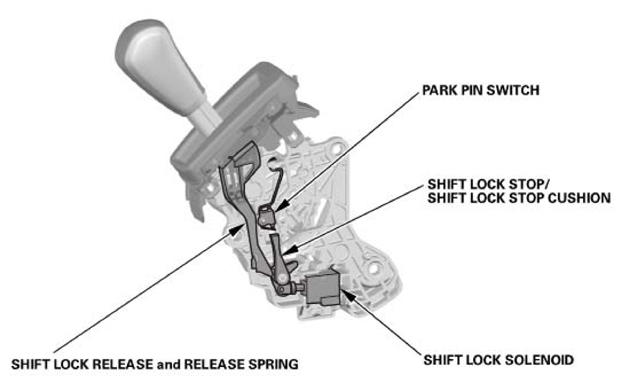

Fig 2: Identifying A/T Interlock System Component Location (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

SHIFT LOCK SOLENOID	TEST
	SHIFT LOCK SYSTEM CIRCUIT TROUBLESHOOTING
	REMOVAL AND INSTALLATION
SHIFT LOCK STOP/SHIFT LOCK STOP CUSHION	REMOVAL AND INSTALLATION
SHIFT LOCK RELEASE and RELEASE SPRING	REMOVAL AND INSTALLATION
PARK PIN SWITCH	TEST
PARK PIN SWITCH	REMOVAL AND INSTALLATION
ACCELERATOR PEDAL POSITION (APP) SENSOR	SIGNAL INSPECTION
BRAKE PEDAL POSITION SWITCH	Adjustment See BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT or BRAKE PEDAL REMOVAL AND INSTALLATION
BRAKE PEDAL POSITION SWITCH	SIGNAL CIRCUIT TROUBLESHOOTING

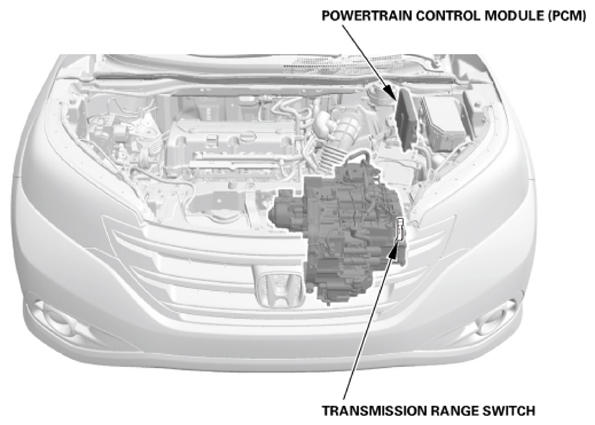

Fig 3: Identifying Powertrain Control Module And Transmission Range Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSMISSION RANGE SWITCH	TEST
	REMOVAL AND INSTALLATION
POWERTRAIN CONTROL MODULE (PCM)	Update See PCM REMOVAL AND INSTALLATION or PCM UPDATE
	Removal and Installation See PCM REMOVAL AND INSTALLATION or PCM UPDATE
