How to Troubleshoot Circuits at the Real Time AWD Control Unit

Special Tools Required

Backprobe Set 07SAZ-001000A

1. Remove the left rear side trim panel.
2. Inspect the circuit on the real time AWD control unit according to the DTC Troubleshooting using the backprobe set and a digital multimeter or an analog circuit tester.

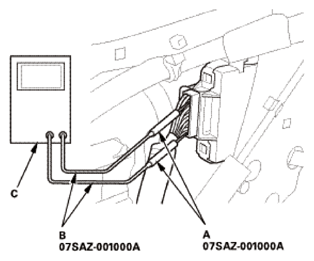

3. Connect the backprobe adapters (A) to the stacking patch cords (B), and connect the cords to a digital multimeter or an analog circuit tester (C). Using the wire insulator as a guide for the contoured-tip of the backprobe adapter, gently slide the tip into the connector from the wire side until it comes in contact with the terminal end of the wires.
   Fig 1: Connecting Backprobe Adapters To Stacking Patch Cords

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
