DTC P0705: Transmission Range Switch (Multiple Shift - Position Input)

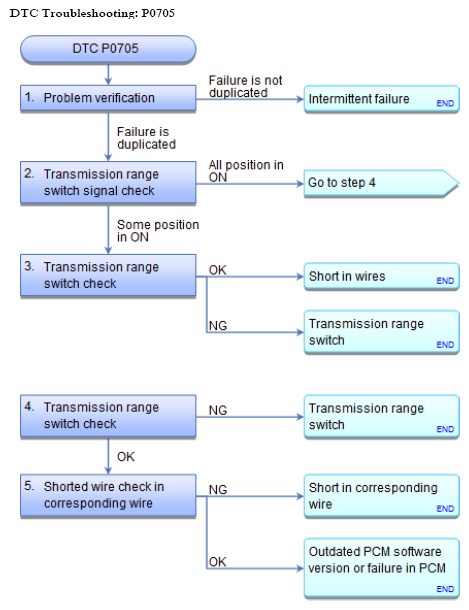

Fig 1: DTC Troubleshooting Flow Chart (P0705)
G08875347Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
DTC Description Confirmed DTC Pending DTC Freeze Frame
P0705 Transmission Range Switch (Multiple Shift - Position Input)
  1. Problem verification:
    • 1. Turn the ignition switch to ON (II).
    • 2. Compare the A/T P Switch, A/T R Switch, A/T N Switch, A/T D Switch, A/T 2 Switch, A/T 1 Switch, Forward Switch(ATPFWD), and Reverse Switch(ATPRVS) inputs with the HDS to the following table, in each shift lever position.
        A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T 2 Switch A/T 1 Switch Forward Switch (ATPFW Reverse Switch (ATPRV
      P x x x x x x x
      R x x x x x x
      N x x x x x x x
      D x x x x x x
      2 x x x x x x
      1 x x x x x x
      ◦: ON/x: OFF
      Signal Current conditions
      Values Unit
      A/T P Switch
      A/T R Switch
      A/T N Switch
      A/T D Switch
      A/T 2 Switch
      A/T 1 Switch
      Forward Switch(ATPFWD)
      Reverse Switch(ATPRVS)

    Do the transmission range switch signals match?

    YES  : Intermittent failure, the system is OK at this time.

    NO  : The failure is duplicated. Go to step 2.

  2. Transmission range switch signal check:
    • 1. Compare the A/T P Switch, A/T R Switch, A/T N Switch, A/T D Switch, A/T 2 Switch, A/T 1 Switch, Forward Switch(ATPFWD), and Reverse Switch(ATPRVS) inputs with the HDS to the following table, in each shift lever position.
        A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T 2 Switch A/T 1 Switch Forward Switch (ATPFW Reverse Switch (ATPRV
      P x x x x x x x
      R x x x x x x
      N x x x x x x x
      D x x x x x x
      2 x x x x x x
      1 x x x x x x
      ◦: ON/x: OFF
      Signal Current conditions
      Values Unit
      A/T P Switch
      A/T R Switch
      A/T N Switch
      A/T D Switch
      A/T 2 Switch
      A/T 1 Switch
      Forward Switch(ATPFWD)
      Reverse Switch(ATPRVS)

    Are any transmission range switch signals ON in all shift lever positions?

    YES  : Go to step  4.

    NO  : Record the abnormal circuit, then go to step 3.

  3. Transmission range switch check:
    • 1. Turn the ignition switch to LOCK (0).
    • 2. Disconnect the following connector.

      Transmission range switch 10P connector

    • 3. Connect the transmission range switch connector terminal that incorrectly indicates ON in step  2 to ground with a jumper wire.
    • 4. Turn the ignition switch to ON (II).
    • 5. Compare the A/T P Switch, A/T R Switch, A/T N Switch, A/T D Switch, A/T 2 Switch, A/T 1 Switch, Forward Switch(ATPFWD), and Reverse Switch(ATPRVS) inputs with the HDS to the following table.
        A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T 2 Switch A/T 1 Switch Forward Switch (ATPFW Reverse Switch (ATPRV
      P x x x x x x x
      R x x x x x x
      N x x x x x x x
      D x x x x x x
      2 x x x x x x
      1 x x x x x x
      ◦: ON/x: OFF
      Signal Current conditions
      Values Unit
      A/T P Switch
      A/T R Switch
      A/T N Switch
      A/T D Switch
      A/T 2 Switch
      A/T 1 Switch
      Forward Switch(ATPFWD)
      Reverse Switch(ATPRVS)

    Do multiple transmission range switch signals indicate ON?

    YES  : The transmission range switch is OK. Repair a short in the wires between the corresponding transmission range switch connector terminal and the PCM. Refer to the following table.

      ATP-P ATP-R ATP-N ATP-D ATP-D3 ATP-1 ATPFWD ATPRVS
    PCM B24 B25 B23 B35 B27 B26 B39 B45
    Transmission range switch 10 9 4 8 3 7 1 5

    NO  : REPLACE THE TRANSMISSION RANGE SWITCH .

  4. Transmission range switch check:
    • 1. Turn the ignition switch to LOCK (0).
    • 2. Disconnect the following connector.

      Transmission range switch 10P connector

    • 3. Turn the ignition switch to ON (II).
    • 4. Check the transmission range switch signal input that remained ON with the HDS to the following table.
        A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T 2 Switch A/T 1 Switch Forward Switch (ATPFW Reverse Switch (ATPRV
      P x x x x x x x
      R x x x x x x
      N x x x x x x x
      D x x x x x x
      2 x x x x x x
      1 x x x x x x
      ◦: ON/x: OFF
      Signal Current conditions
      Values Unit
      A/T P Switch
      A/T R Switch
      A/T N Switch
      A/T D Switch
      A/T 2 Switch
      A/T 1 Switch
      Forward Switch(ATPFWD)
      Reverse Switch(ATPRVS)

    Do any transmission range switch signals remain ON?

    YES  : The transmission range switch is OK. Go to step 5.

    NO  : REPLACE THE TRANSMISSION RANGE SWITCH .

  5. Shorted wire check (ATP-P, ATP-R, ATP-N, ATP-D, ATP-D3, ATP-1, ATP-FWD, ATP-RVS line):
    • 1. Check for continuity to ground in the circuit that remained ON in step  4.

    Does the circuit that indicated ON have continuity to ground?

    YES  : Repair a short to ground in the wire between the corresponding transmission range switch connector terminal and the PCM.

    NO  : The wires are OK. Update the PCM if it does not have the latest software  See PCM REMOVAL AND INSTALLATION or PCM UPDATE . If the PCM was updated, replace the PCM  See PCM REMOVAL AND INSTALLATION or PCM UPDATE .
